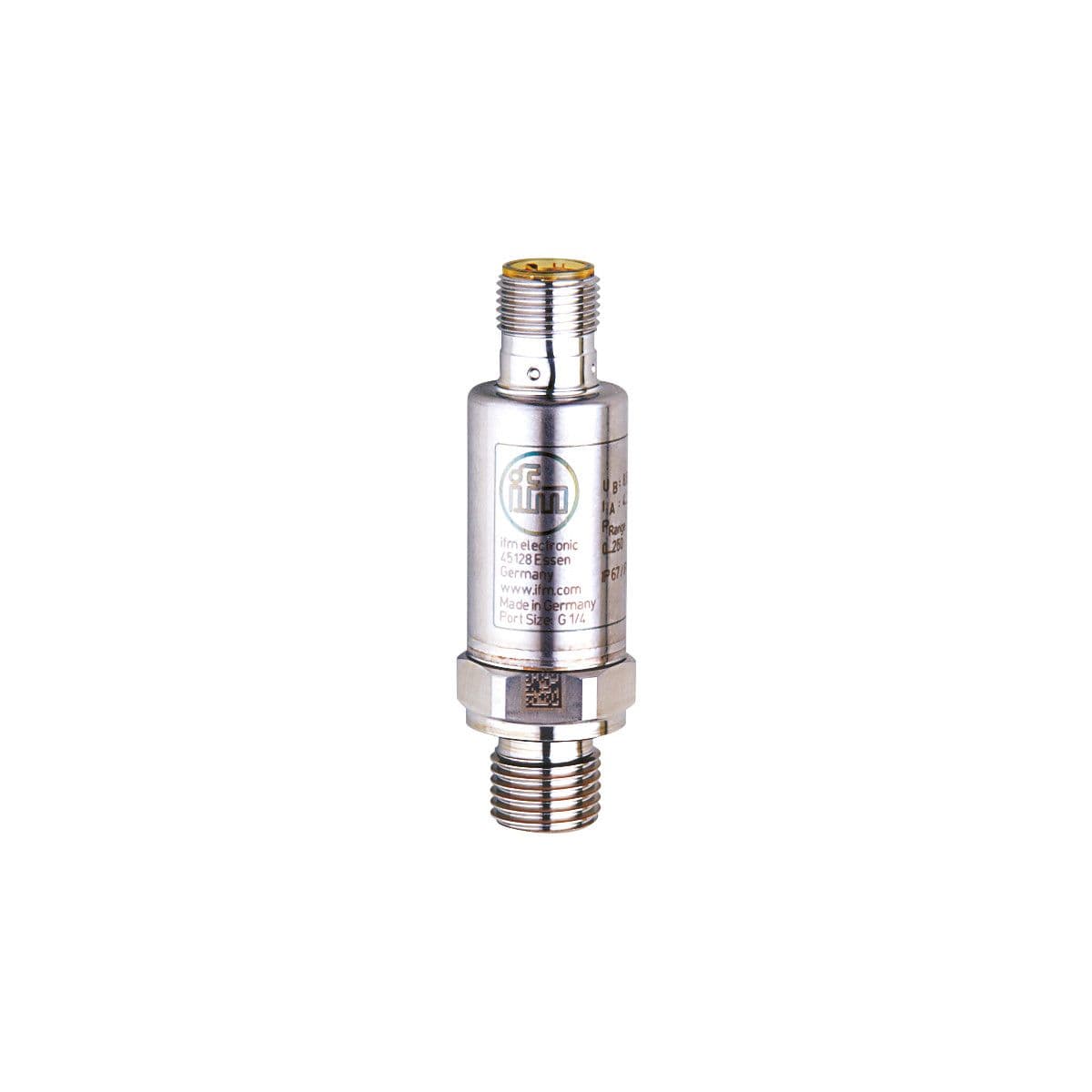

PT5414 ifm Electronic Electronic Components
Part#:PT5414
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure transmitter, Reliable detection of system pressure in industrial applications, Output signal: analog signal, Measuring range: 0...16 bar 0...232 psi 0...1.6 MPa, Process connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2), A
Product Details
- Max. load [Ω] (Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω
- Number of analog outputs 1
- Analog current output [mA] 4...20
- Overload protection yes
- Short-circuit proof yes
- Number of inputs and outputs Number of analog outputs: 1
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Reverse polarity protection yes
- Total number of outputs 1
- Power-on delay time [s] < 0.1
- Protection class III
- Operating voltage [V] 8.5...36 DC
- Vacuum resistance [mbar] -1000
- Type of pressure relative pressure
- Min. bursting pressure 450 bar 6525 psi 45 MPa
- Media liquids and gases
- Note on pressure rating static
- Pressure rating 40 bar 580 psi 4 Mpa
- Medium temperature [°C] -40...90
- Application for industrial applications
- Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
- Output signal analog signal
- Measuring range 0...16 bar 0...232 psi 0...1.6 MPa
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
