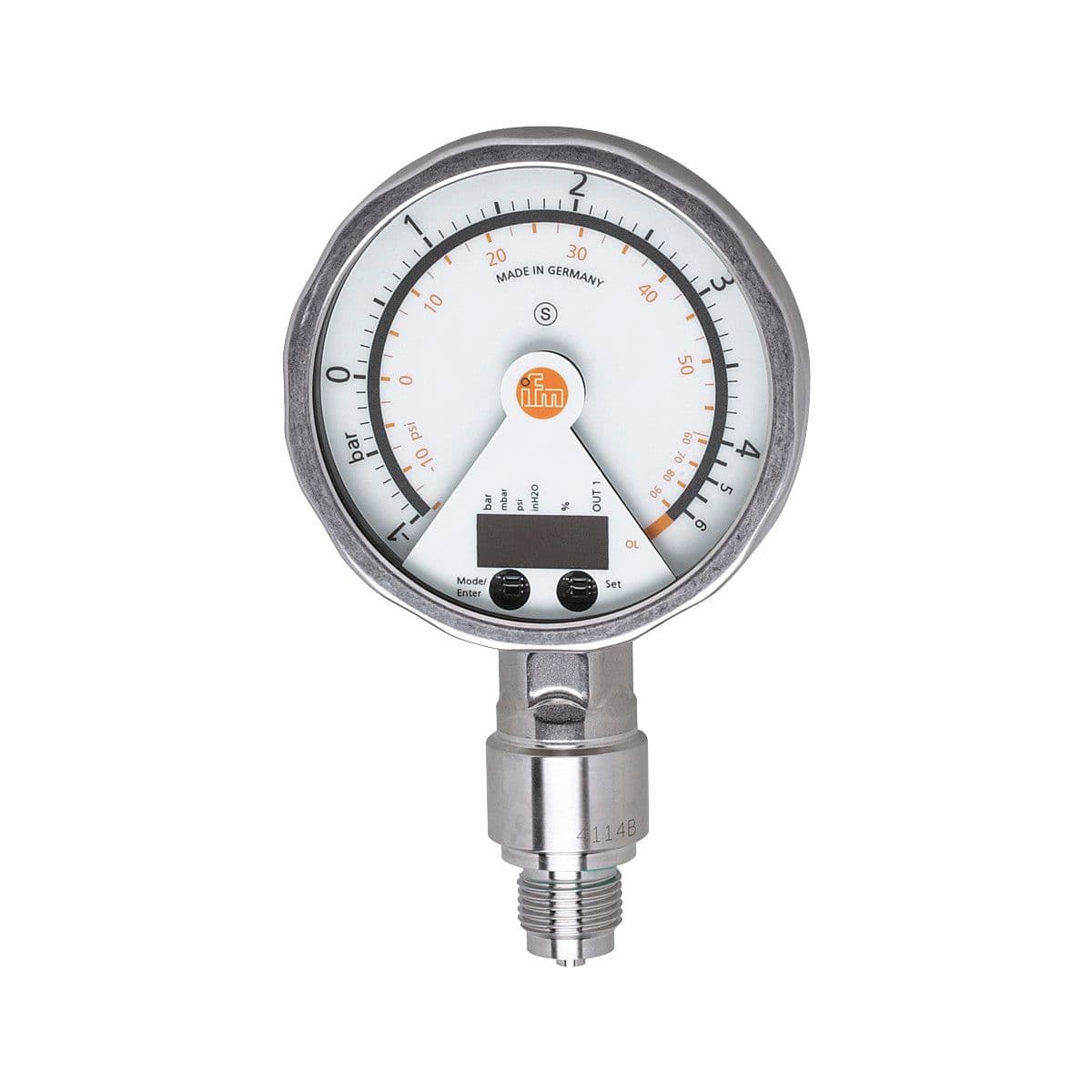

PG2455 ifm Electronic Electronic Components

Product Details

• Media
  liquids and gases
• Measuring range
  -1...4 bar -14.5...58 psi
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Type of short-circuit protection
  yes (non-latching)
• Overload protection
  yes
• Short-circuit protection
  yes
• Analog current output [mA]
  4...20, invertible; (scalable)
• Switching frequency DC [Hz]
  75
• Number of analog outputs
  1
• Output function
  normally open / closed; (configurable)
• Permanent current rating of switching output DC [mA]
  250
• Max. voltage drop switching output DC [V]
  2
• Number of digital outputs
  1
• Electrical design
  PNP/NPN
• Total number of outputs
  2
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Integrated watchdog
  yes
• Protection class
  III
• Power-on delay time [s]
  6
• Reverse polarity protection
  yes
Min. insulation resistance [MΩ]
100; (500 V DC)
Current consumption [mA]
< 70; (24 V)
Operating voltage [V]
18...32 DC
Type of pressure
relative pressure; vacuum
Pressure rating
30 bar 435 psi
Application
for industrial applications
System
gold-plated contacts
Min. bursting pressure
100 bar 1450 psi
Process connection
threaded connection G 1/2 external thread
Medium temperature [°C]
-25...80
Output signal
switching signal; analog signal; (configurable)

Related documents PG2455 Specs
