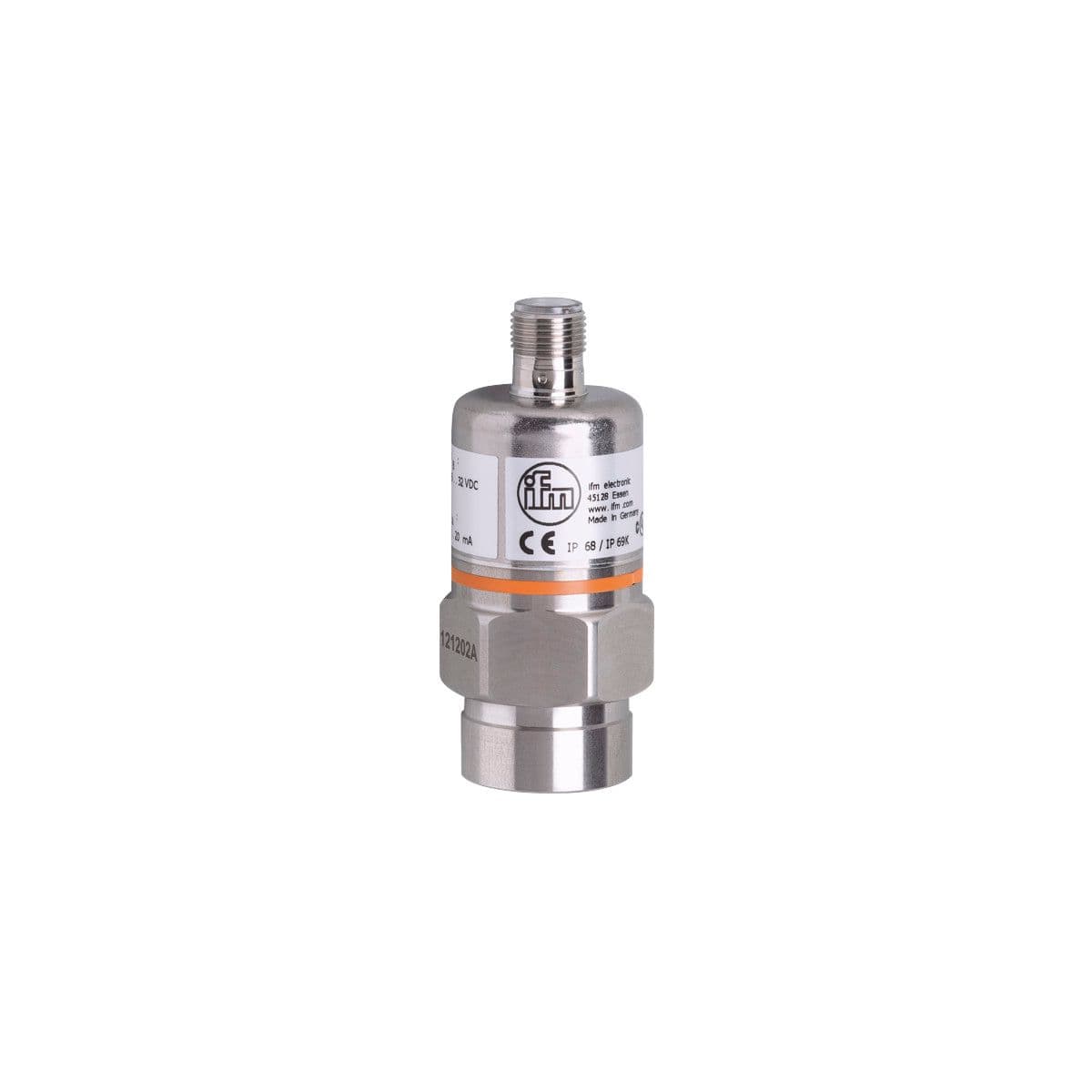

PA9027 ifm Electronic Electronic Components
Part#:PA9027
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure transmitter with ceramic measuring cell, Precise linear 0...10 V output signal, Output signal: analog signal, Measuring range: 0...1 bar 0...1000 mbar 0...14.5 psi 0...100 kPa, Process connection: threaded connection G 1/4 Internal thread, System
Product Details
- Number of analog outputs 1
- Min. load resistance [Ω] 2000
- Analog voltage output [V] 0...10
- Overload protection yes
- Total number of outputs 1
- Number of inputs and outputs Number of analog outputs: 1
- Reverse polarity protection yes
- Protection class III
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Current consumption [mA] < 18
- Operating voltage [V] 16...32 DC
- Type of pressure relative pressure
- Measuring range 0...1 bar 0...1000 mbar 0...14.5 psi 0...100 kPa
- Min. bursting pressure 30 bar 435 psi 3 MPa
- Process connection threaded connection G 1/4 Internal thread
- System gold-plated contacts
- Output signal analog signal
- Medium temperature [°C] -25...90; (on request: -40...90 °C)
- Application for industrial applications
- Pressure rating 10 bar 145 psi 1 Mpa
- Media liquids and gases
