OGD596 ifm Electronic Electronic Components
Part#:OGD596
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

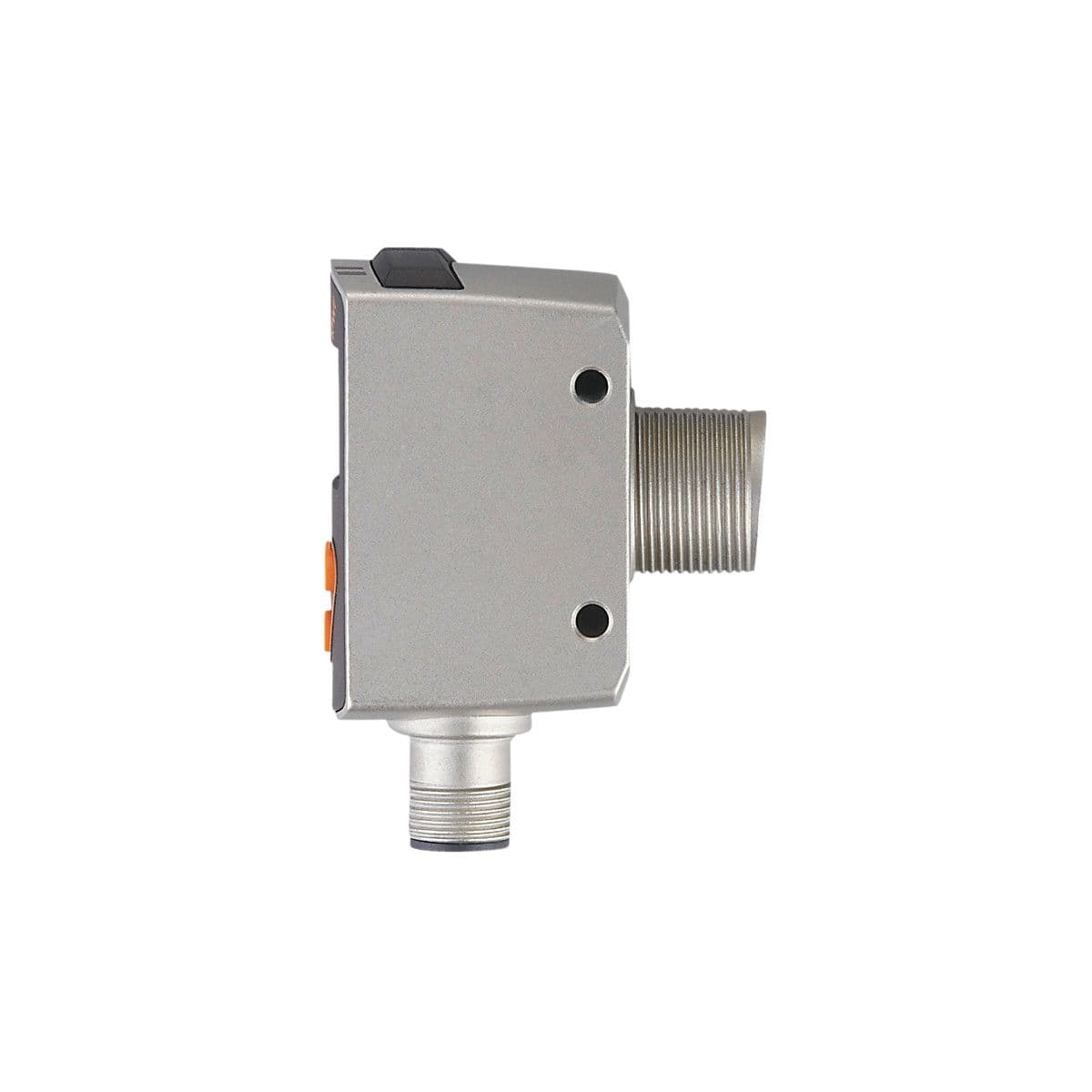

Photoelectric distance sensor, Small compact design with standard M18 thread and PMD time-of-flight technology, Type of light: red light, Measuring range [m]: 0.025...0.3, Communication interface: IO-Link, Laser protection class: 1, Dimensions [mm]: 61.7
Product Details
- Permanent current rating of switching output DC [mA] 100; (per output)
- Type of short-circuit protection yes (non-latching)
- Overload protection yes
- Output function 2 x normally open / normally closed; (configurable)
- Electrical design PNP
- Wave length [nm] 650
- Typ. lifetime [h] 50000
- Protection class III
- Reverse polarity protection yes
- Operating voltage [V] 10...30 DC; (cULus - Class 2 source required)
- Current consumption reference voltage [V] 24
- Current consumption [mA] < 75
- Application [m] 0.03...0.3
- Communication interface IO-Link
- Measuring range [m] 0.025...0.3
- Laser protection class 1
- Dimensions [mm] 61.7 x 22.5 x 45.2
- Type of light red light
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
OGD596 ifm Electronic
