LI5133 ifm Electronic Electronic Components
Part#:LI5133
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

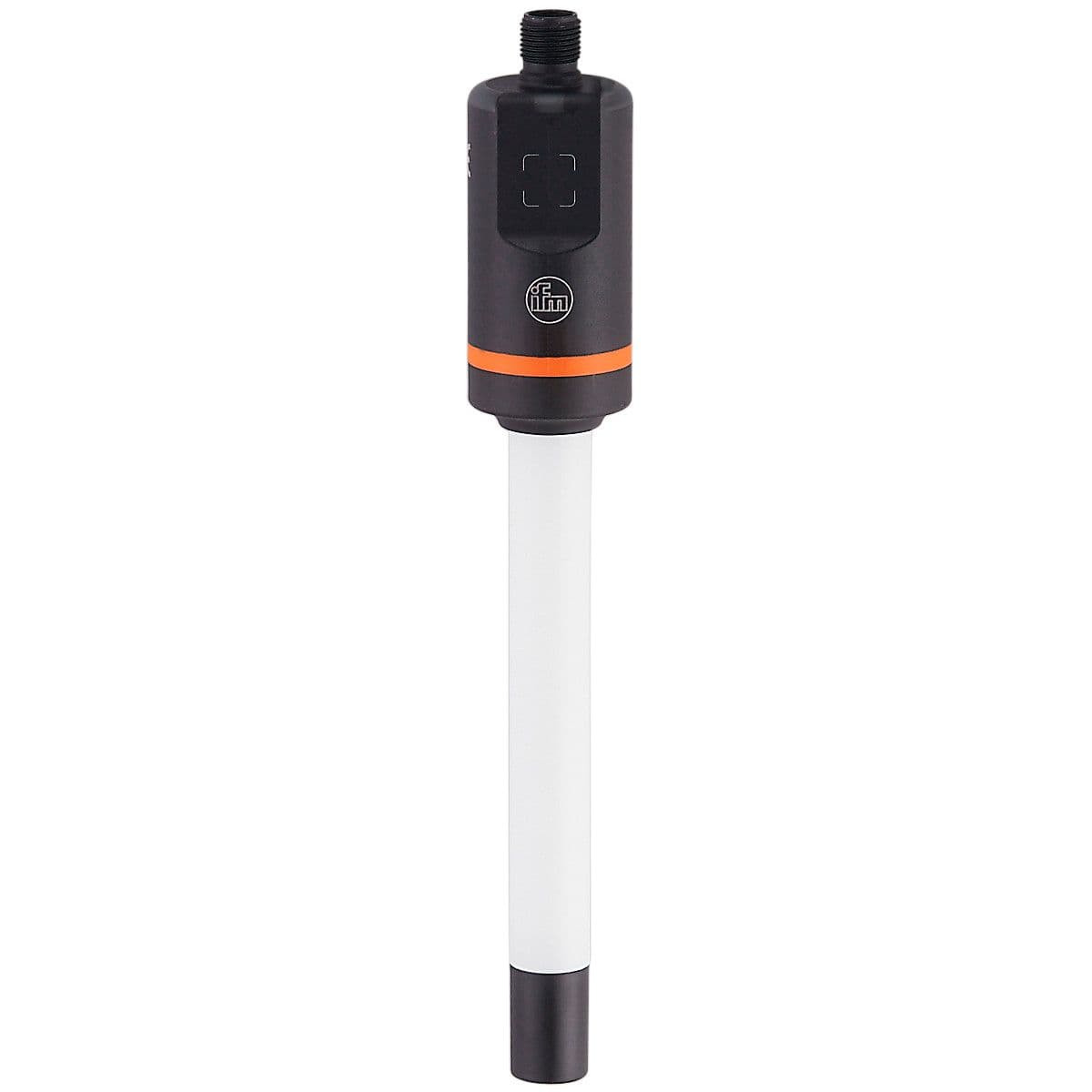

Sensor for point level detection, For the reliable point level monitoring in tanks and containers, Number of inputs and outputs: Number of digital outputs: 2, Factory setting: water-based media, Probe length L [mm]: 481, System: gold-plated contacts, Medi
Product Details
- Output signal switching signal; IO-Link
- Overload protection yes
- Type of short-circuit protection yes (non-latching)
- Short-circuit protection yes
- Permanent current rating of switching output DC [mA] 100
- Output function normally open / closed; (configurable)
- Current consumption [mA] < 15
- Max. voltage drop switching output DC [V] 2.5
- Number of digital outputs 2
- Electrical design PNP/NPN
- Total number of outputs 2
- Reverse polarity protection yes
- Power-on delay time [s] < 1
- Protection class III
- Operating voltage [V] 9.6...35 DC; (IO-Link: 18...30 DC)
- Vacuum resistance [mbar] -500
- Pressure rating [bar] 0.5
- Recommended media water; water-based media; oils; oil-based media
- Dielectric constant of the medium > 1,8
- Medium temperature [°C] -25...85
- System gold-plated contacts
- Cannot be used for See operating instructions, chapter "Intended use".
- Media Liquids
- Number of inputs and outputs Number of digital outputs: 2
- Factory setting water-based media
- Probe length L [mm] 481
