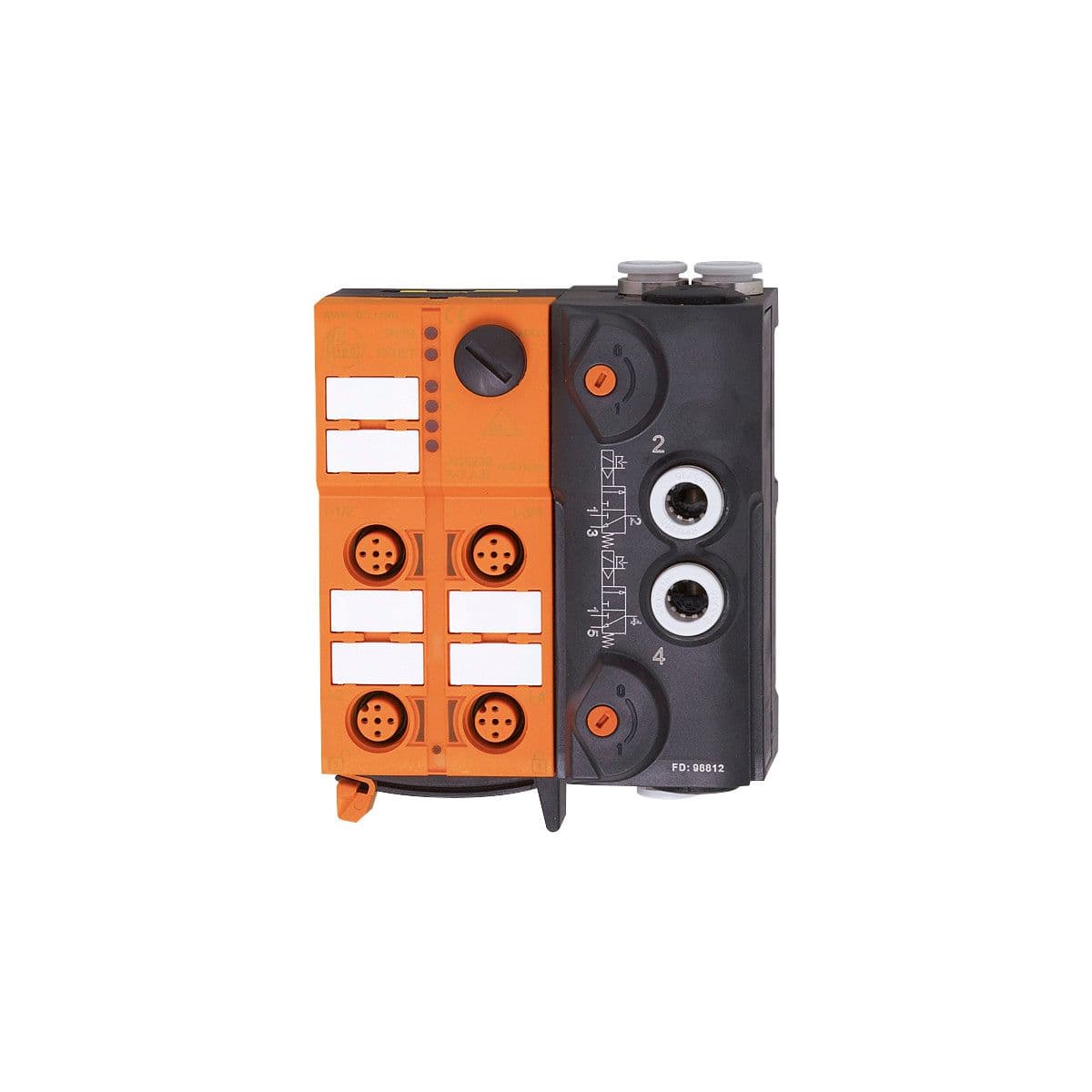

AC5228 ifm Electronic Electronic Components

Name: AC5228
Brand: ifm Electronic

Part#:AC5228

Category:Electronic Components

Product Lifecycle:Active

Product description

AS-Interface Airbox with quick mounting technology, For the decentralized triggering of cylinders and valve actuators, Application: field installation, Medium temperature [°C]: -10...50

Product Details

Actuator supply outputs
AS-i
Number of pneumatic outputs
2
Digital inputs protected against short circuits
yes
Min. switching level high signal [V]
11
Input current High [mA]
6...10
Max. total current rating of inputs [mA]
200
Voltage supply [V]
20...30; (via flat cable)
Input current low [mA]
0...2
Number of digital inputs
4
Number of inputs and outputs
Number of digital inputs: 4; Number of pneumatic outputs: 2
Medium temperature [°C]
-10...50
Integrated watchdog
yes
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Application
field installation
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
280

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

AC5228 Related Documents

CAD_DWG_ASI_0084.ZIP-1631073174203.zip CAD_STP_ASI_0084.ZIP-1631073174198.zip CAD_SAT_ASI_0084.ZIP-1631073174201.zip PDF data sheet-1631073174205.pdf CAD_DXF_ASI_0084.ZIP-1631073174200.zip

Manufacturer warranty

AC5228 ifm Electronic

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare AC5228 with other Electronic Components products

Actuator supply outputs

Number of pneumatic outpu...

Digital inputs protected ...

Min. switching level high...

Input current High [mA]

Max. total current rating...

Voltage supply [V]

Input current low [mA]

Number of digital inputs

Number of inputs and outp...

Selected product

Backordered

ifm Electronic

AS-Interface Airbox with quick mounting technology, For the decentralized triggering of cylinders an...

Actuator supply outputsAS-i

Number of pneumatic outputs2

Digital inputs protected against short circuitsyes

Min. switching level high signal [V]11

Input current High [mA]6...10

Max. total current rating of inputs [mA]200

Voltage supply [V]20...30; (via flat cable)

Input current low [mA]0...2

Number of digital inputs4

Number of inputs and outputsNumber of digital inputs: 4;...

2 in stock

Mencom

MIN Size I, Receptacle, 4 Pole, Female Straight, 1 Ft, 18awg, 5.5A, .5-NPT, Front Mount, Aluminum Cl...

Actuator supply outputs-

Number of pneumatic outputs-

Digital inputs protected against short circuits-

Min. switching level high signal [V]-

Input current High [mA]-

Max. total current rating of inputs [mA]-

Voltage supply [V]-

Input current low [mA]-

Number of digital inputs-

Number of inputs and outputs-

4 in stock

Mencom

MIN Size I, Cordset, 4 Pole, Male Straight / Female Straight, 12 Ft, 5.5A, Yellow, PVC

Actuator supply outputs-

Number of pneumatic outputs-

Digital inputs protected against short circuits-

Min. switching level high signal [V]-

Input current High [mA]-

Max. total current rating of inputs [mA]-

Voltage supply [V]-

Input current low [mA]-

Number of digital inputs-

Number of inputs and outputs-

4 in stock

Mencom

Standard, CK series, Male Rectangular Insert, size 21.21, 4 pin, 10 amp, Screw, Silver Plated Contac...

Actuator supply outputs-

Number of pneumatic outputs-

Digital inputs protected against short circuits-

Min. switching level high signal [V]-

Input current High [mA]-

Max. total current rating of inputs [mA]-

Voltage supply [V]-

Input current low [mA]-

Number of digital inputs-

Number of inputs and outputs-

2 in stock

Mencom

MIN Size I, Receptacle, 4 Pole, Female Straight, 1 Ft, 18awg, 5.5A, .5-NPT, Front Mount, Aluminum Cl...

Actuator supply outputs-

Number of pneumatic outputs-

Digital inputs protected against short circuits-

Min. switching level high signal [V]-

Input current High [mA]-

Max. total current rating of inputs [mA]-

Voltage supply [V]-

Input current low [mA]-

Number of digital inputs-

Number of inputs and outputs-

4 in stock

Mencom

MIN Size I, Cordset, 4 Pole, Male Straight / Female Straight, 12 Ft, 5.5A, Yellow, PVC

Actuator supply outputs-

Number of pneumatic outputs-

Digital inputs protected against short circuits-

Min. switching level high signal [V]-

Input current High [mA]-

Max. total current rating of inputs [mA]-

Voltage supply [V]-

Input current low [mA]-

Number of digital inputs-

Number of inputs and outputs-

4 in stock

Mencom

Standard, CK series, Male Rectangular Insert, size 21.21, 4 pin, 10 amp, Screw, Silver Plated Contac...

Actuator supply outputs-

Number of pneumatic outputs-

Digital inputs protected against short circuits-

Min. switching level high signal [V]-

Input current High [mA]-

Max. total current rating of inputs [mA]-

Voltage supply [V]-

Input current low [mA]-

Number of digital inputs-

Number of inputs and outputs-

2 in stock

Mencom

MIN Size I, Receptacle, 4 Pole, Female Straight, 1 Ft, 18awg, 5.5A, .5-NPT, Front Mount, Aluminum Cl...

Actuator supply outputs-

Number of pneumatic outputs-

Digital inputs protected against short circuits-

Min. switching level high signal [V]-

Input current High [mA]-

Max. total current rating of inputs [mA]-

Voltage supply [V]-

Input current low [mA]-

Number of digital inputs-

Number of inputs and outputs-

4 in stock

Mencom

MIN Size I, Cordset, 4 Pole, Male Straight / Female Straight, 12 Ft, 5.5A, Yellow, PVC

Actuator supply outputs-

Number of pneumatic outputs-

Digital inputs protected against short circuits-

Min. switching level high signal [V]-

Input current High [mA]-

Max. total current rating of inputs [mA]-

Voltage supply [V]-

Input current low [mA]-

Number of digital inputs-

Number of inputs and outputs-

About the manufacturer

Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...

Relevant products

AC5224

Verified stock: 0

AS-Interface ClassicLine module with quick mounting technology, Easy toolless installation, Application: field installation

ifm Electronic

AC5203

Verified stock: 0

AS-Interface ClassicLine module with quick mounting technology, Easy toolless installation, Application: field installation

ifm Electronic

AC5230

Verified stock: 0

AS-Interface ClassicLine module with quick mounting technology, Easy toolless installation, Number of inputs and outputs: Number of digital inputs: 2; Number of analog inputs: 1; Number of analog outputs: 1, Design: Only for operation with AS-i masters wi

ifm Electronic

AC5251

Verified stock: 0

AS-Interface Airbox with quick mounting technology, For the decentralized triggering of cylinders and valve actuators, Application: field installation, Medium temperature [°C]: -10...50

ifm Electronic

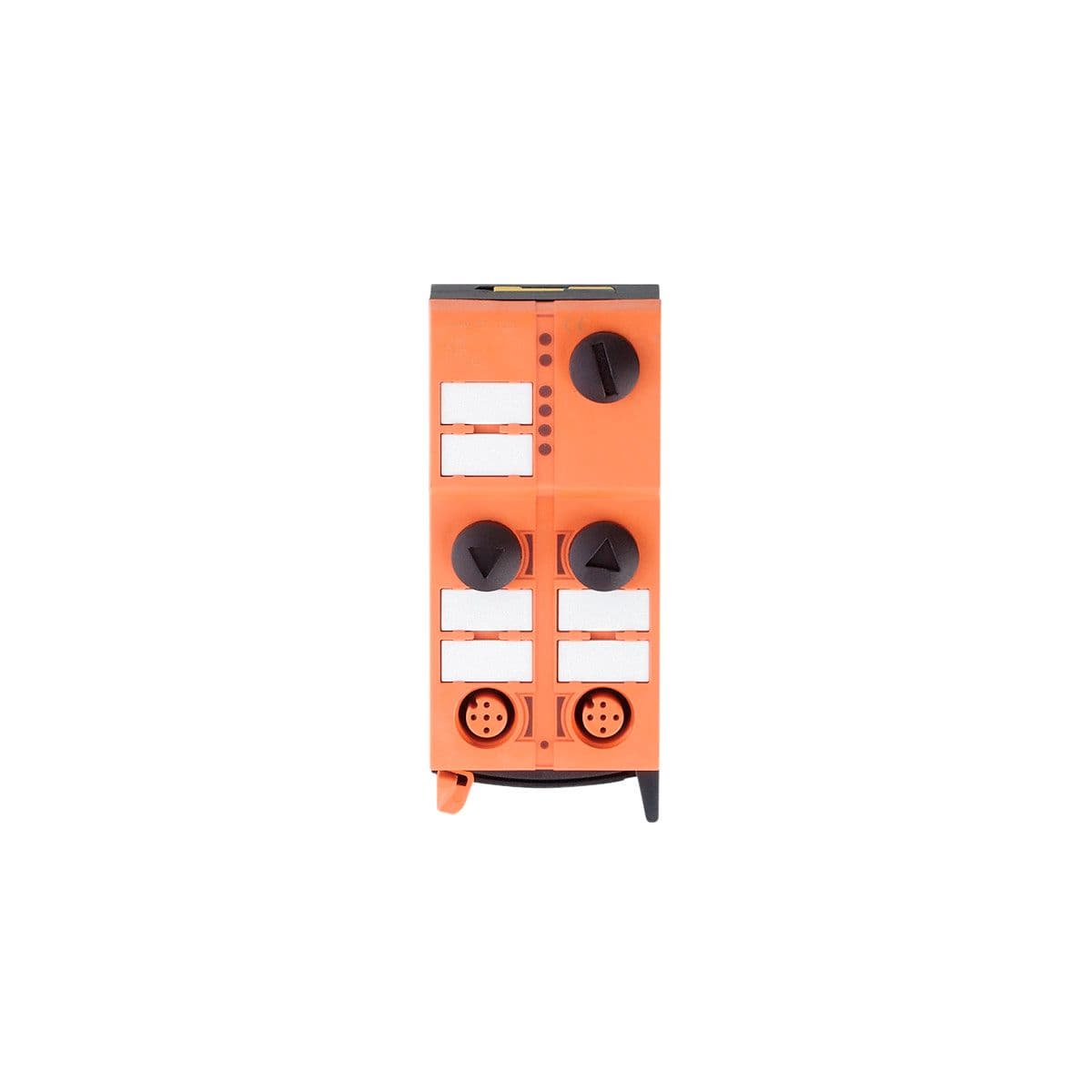

AC5223
