4C.02.8.024.0060SPA Finder Industrial Automation Components

Out if stock but available for backorder.

We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.

We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

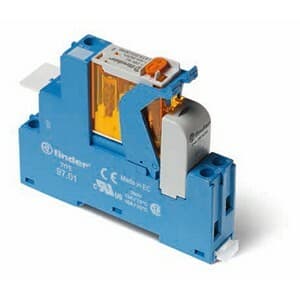

Finder 4C.02.8.024.0060SPA is a relay with a box-clamp connection type, designed to handle rated currents of 8A at 250Vac (AC-1), 6A at 30Vdc (DC-1), 0.5A at 110Vdc (DC-1), and 0.15A at 220Vdc (DC-1). It features normally open (NO) auxiliary contacts and supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw). The relay operates within an ambient air temperature range of -40 to +70 degrees Celsius and is designed for a rated voltage of 250Vac, with a control voltage of 24Vac (50Hz/60Hz). It offers protection functions with an IP20 rating and a control voltage AC withstand of 4 kV. Mounting options include DIN rail and plug-in, with a net width of 15.8 mm and designed for 2 poles. The relay is equipped with a varistor and coil EMC surge suppressor module for enhanced protection, capable of 100,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The contact material is AgNi (Silver Nickel).
