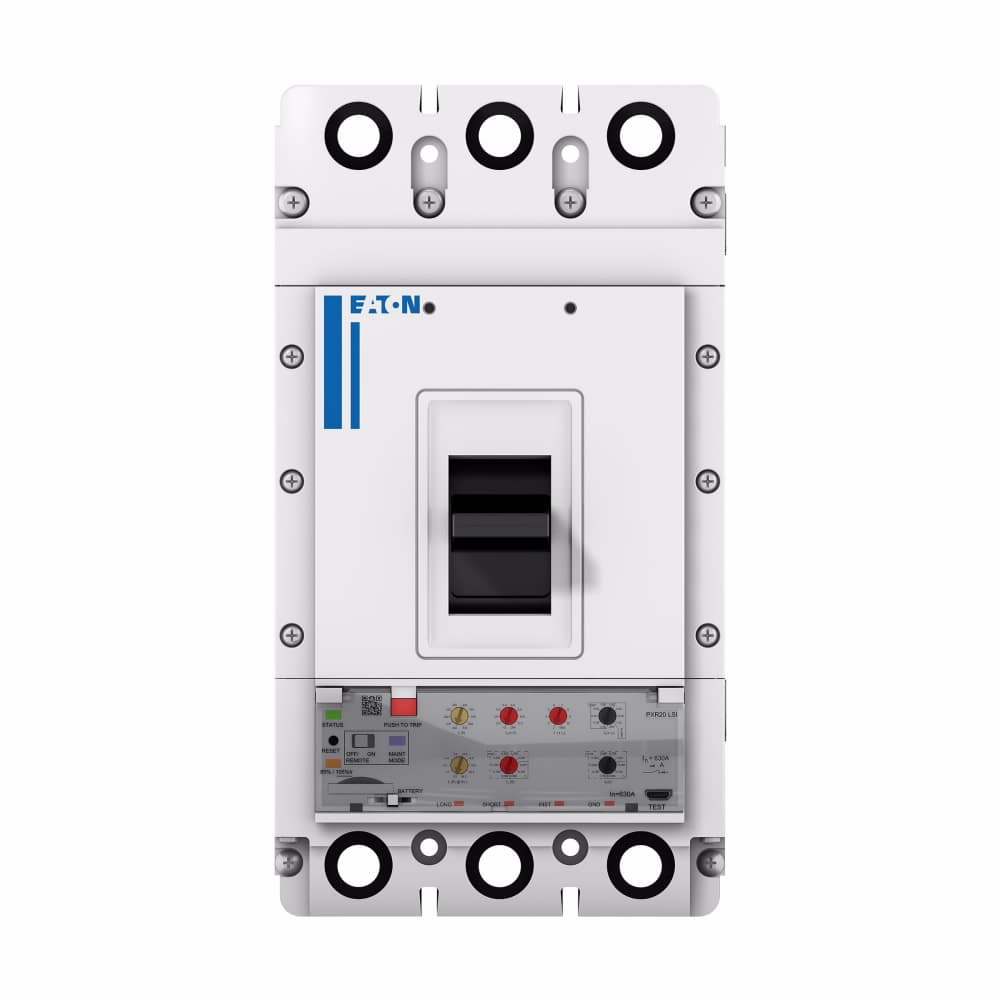

PDG32N0250E5CK Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32N0250E5CK
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 85kA/480V, PXR20 ARMS LSIG w/ CAM Link and Relays, Standard Terminals Line Only (PDG3X2TA350)
Product Details
- Voltage rating 600 Vac
- Trip Type PXR 20 LSIG w/ARMS
- Communication CAM Link
- Terminals Standard Terminals Line Only
- Circuit breaker frame type Complete breaker
- Interrupt rating range 65 kAIC Icu/ 40 kAIC Ics/ 143 kAIC Icm @480V Brazil (IEC) 150 kAIC Icu/ 100 kAIC Ics/ 330 kAIC Icm @240V (IEC) 35 kAIC Icu/ 25 kAIC Ics/ 73.5 kAIC Icm @525V South Africa (IEC) 22 kAIC Icu @250 Vdc 85 kAIC @480V (UL) 50 kAIC @600V (UL/CSA) 20 kAIC Ic
- Class Class A
- Switch off technique Electronic
- Circuit breaker type PD3 Global
- Voltage rating - max 600 V
- Number of poles Two-pole
- Frame 3
- Amperage Rating 250 A
- Trip rating 250 A
- Interrupt rating 85 kAIC at 480 Vac
- Rated operation voltage (Ue) at AC - max 600
- Special features CAM / Relays
- Certifications CCC Marked UL 489 IEC 60947-2 CSA
- Product Height 257.1 mm
- Product Weight 5.2163 kg
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- UPC 786687053651
- Compliances RoHS Compliant
- Product Length/Depth 109.1 mm
- Product Width 138.9 mm
- Catalog Number PDG32N0250E5CK
- Product Name Eaton Power Defense molded case circuit breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
