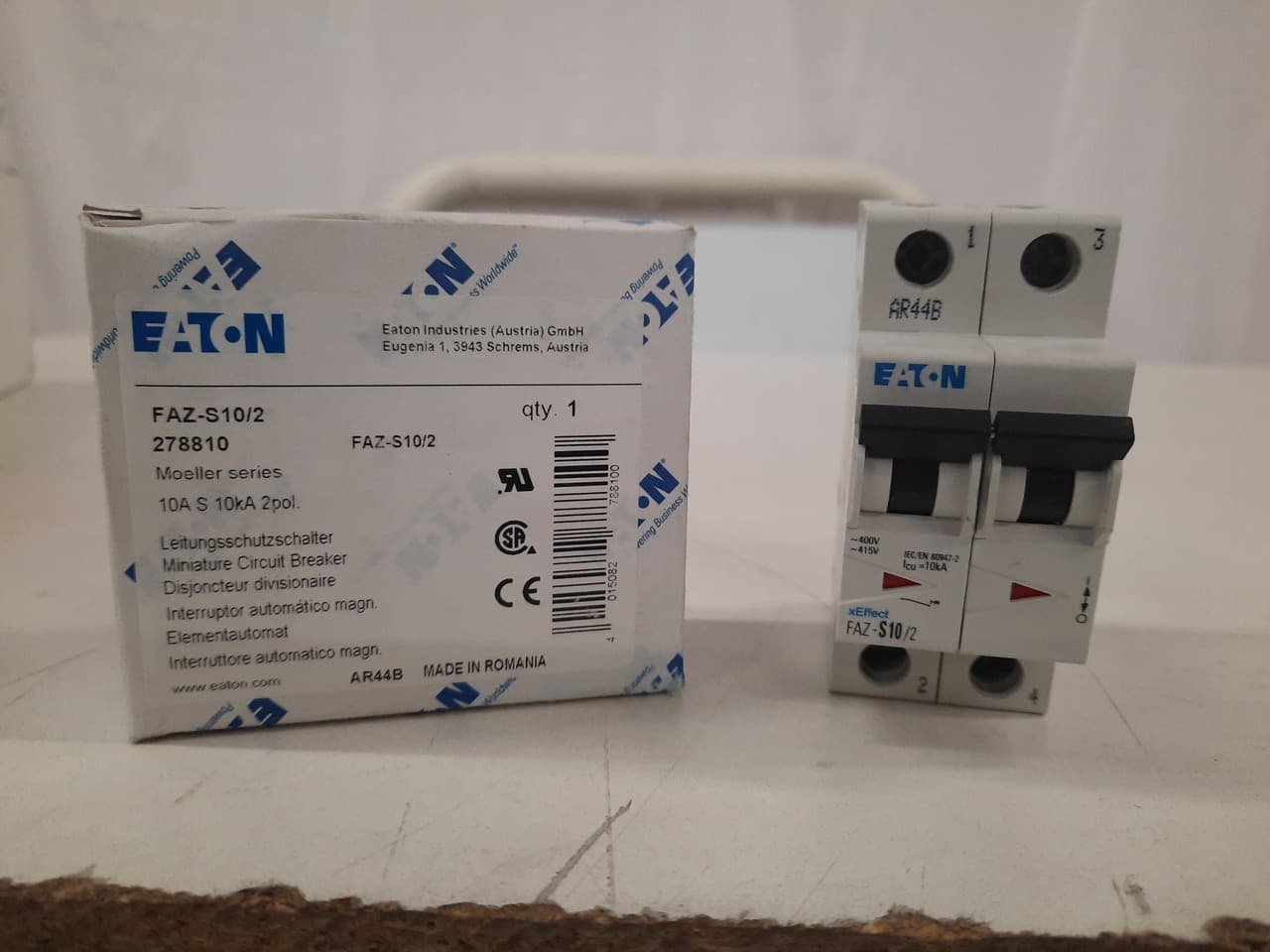

FAZ-S10/2 Eaton Supplementary Protectors
Part#:FAZ-S10/2
Manufacturer:Eaton
Category:Supplementary Protectors
Product Lifecycle:Active
Product description
277/480 VAC 50/60 Hz, 10 A, 2-Pole, 10 kA, 13 to 17 x Rated Current, Line/Load Terminal, DIN Rail Mount, Standard Packaging, S-Curve, Current Limiting, Thermal Magnetic
Product Details
- Number of Poles 2 Pole
- Current Rating 10 A
- Trip Curve S
- SCCR 5 kA
- UL Standard 1077
- UL CCN QVNU2
- UL File No. E177451
- Terminal Type Compression
- Trip Setting: 13 to 17 x Rated Current
- Wire Size: 18 to 4/18 to 8 AWG
- Terminal Type: Line/Load
- Volts: 277/480 VAC
- Amps: 32 A
- Interrupting Rating: 10 kA
- Mounting: DIN Rail
- Poles: 2
- Size: 1.4 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
- UPC: 015082788104
- Shipping Weight: 0.50
- Type: Current Limiting
- Approval: UL 1077
- Shipping Height: 2.00 In.
- Shipping Width: 3.00 In.
- Series: FAZ
- Shipping Length: 4.00 In.
- Trip Type 13-17X /n
- Number of poles Two-pole
- Amperage Rating 10 A
- Terminals Standard
- Catalog Notes Positioned for highly inductive loads especially in control circuits with coils and light filaments.
- Product Length/Depth 1.5 in
- Warranty 1 year
- Certifications IEC 60947-2 CSA Std. C22.2 No.235 UL 1077
- Product Name Eaton FAZ supplementary protector
- Product Weight .5 lb
- Product Width 1.5 in
- Product Height 1.5 in
- Catalog Number FAZ-S10/2
- EAN 4015082788100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
