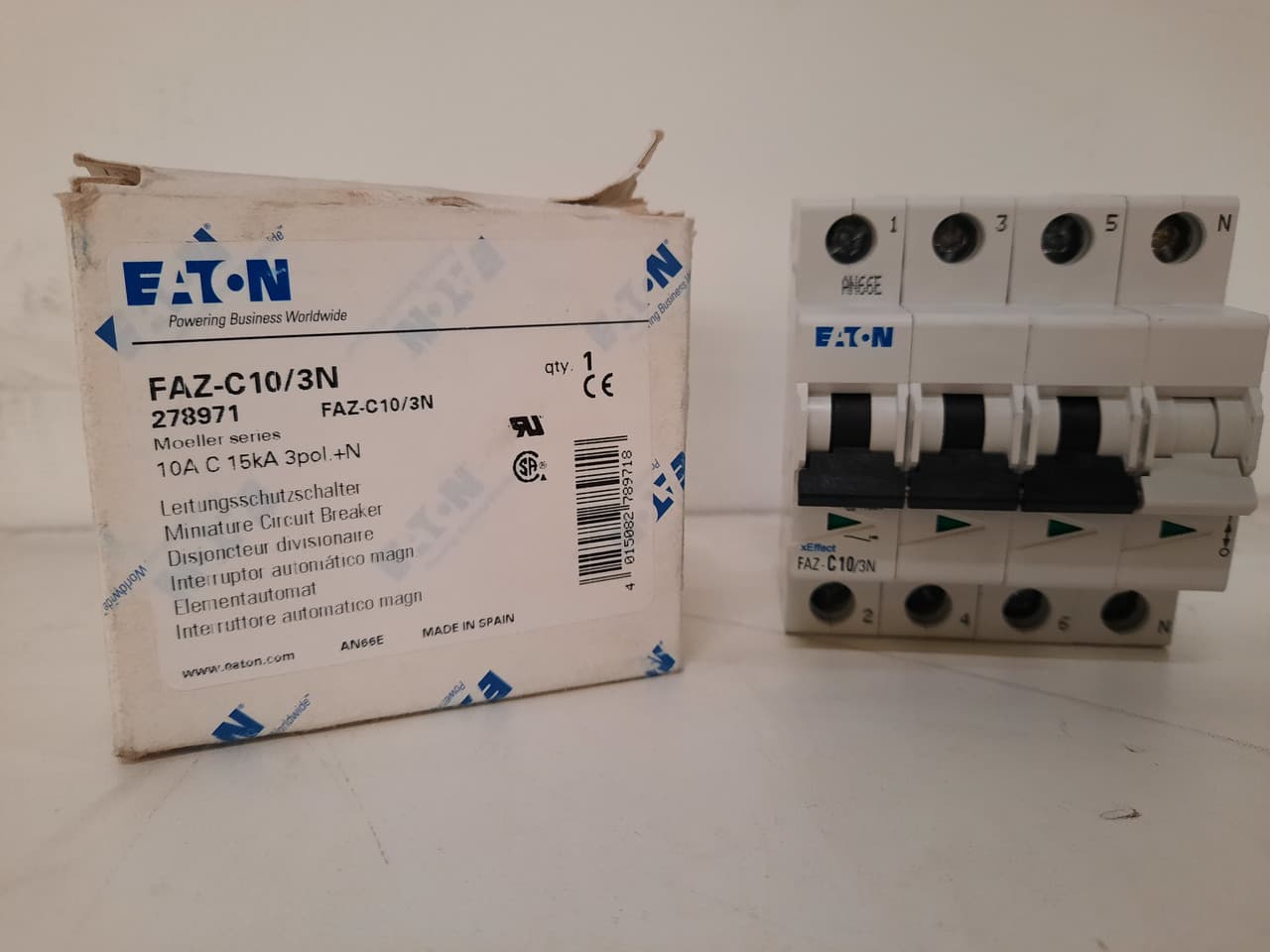

FAZ-C10/3N Eaton Miniature Circuit Breakers (MCBs)
Part#:FAZ-C10/3N
Manufacturer:Eaton
Category:Miniature Circuit Breakers (MCBs)
Product Lifecycle:Active
Get a quick Quote!
Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker - supplementary protector,Medium levels of inrush current are expected,10 A,15 kAIC,Three-pole + neutral,5-10X /n,50-60 Hz,Standard terminals,C Curve
About the manufacturer: Eaton is one of the manufacturers that offers Miniature Circuit Breakers (MCBs) that you can order at Advantage Electric Supply site. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the FAZ-C10/3N Eaton price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 3 Pole
- Current Rating 10 A
- Trip Curve C
- SCCR 10 kA
- UL Standard 1077
- UL CCN QVNU2
- UL File No. E177451
- Terminal Type Compression
- Trip Setting: 5 to 10 x Rated Current
- Wire Size: 18 to 4/18 to 8 AWG
- Interrupting Rating: 10 kA
- Mounting: DIN Rail
- Terminal Type: Line/Load
- Size: 2.09 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
- Poles: 3/4
- Volts: 277/480 VAC
- Amps: 32 A
- Shipping Weight: 0.95
- Shipping Length: 4.00 In.
- Shipping Width: 3.00 In.
- UPC: 015082789712
- Series: FAZ
- Shipping Height: 3.00 In.
- Approval: UL 1077
- Type: Current Limiting
- Number of poles Three-pole + N
- Trip Type 5-10X /n
- Amperage Rating 10 A
- Terminals Standard
- Application Suitable for applications where medium levels of inrush current are expected
- Circuit protection C curve
- Frequency rating 50-60 Hz
- Type UL 1077 Industrial miniature circuit breaker - supplementary protector
- Interrupt rating 15 kAIC
- Catalog Notes Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
- Product Width 3 in
- Warranty 1 year
- Certifications IEC 60947-2 CSA Std. C22.2 No.235 UL 1077
- Product Height 3.25 in
- Product Weight 1 lb
- Catalog Number FAZ-C10/3N
- Product Name Eaton FAZ supplementary protector
- EAN 4015082789718
- Product Length/Depth 2.76 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents FAZ-C10/3N Specs
