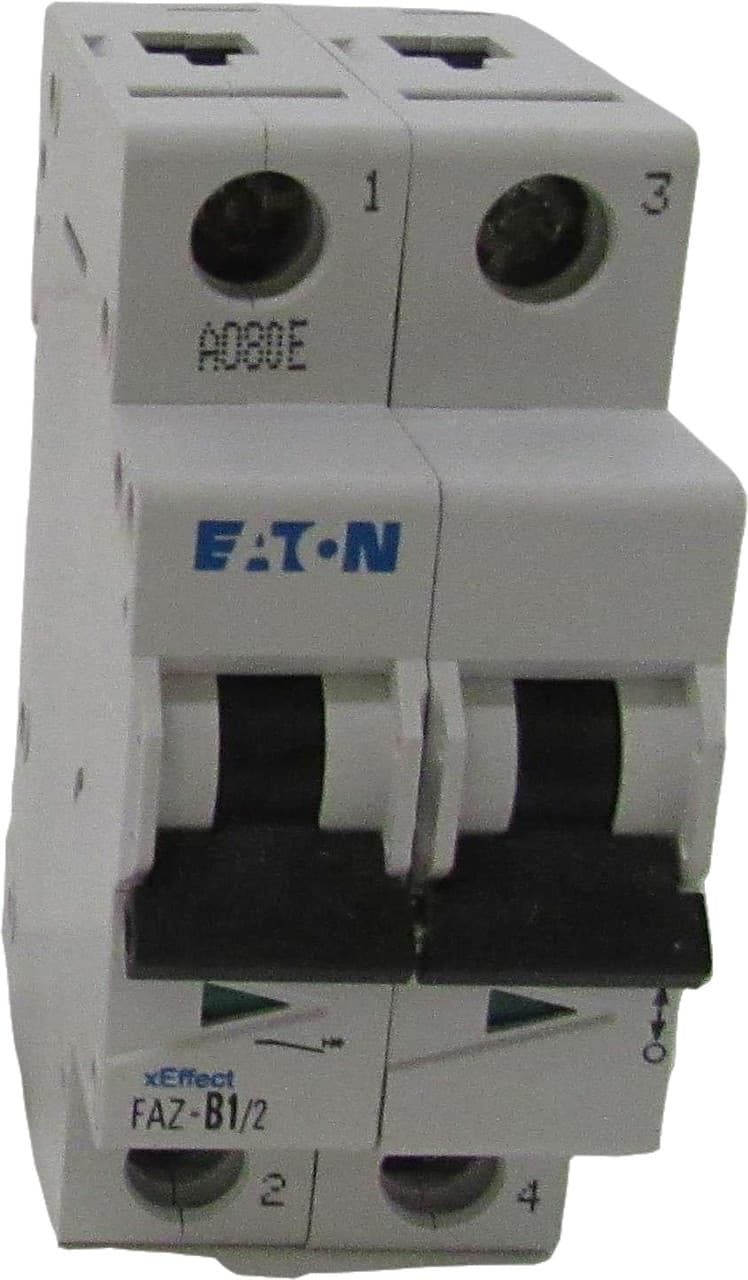

FAZ-B1/2 Eaton Miniature Circuit Breakers (MCBs)
Part#:FAZ-B1/2
Manufacturer:Eaton
Category:Miniature Circuit Breakers (MCBs)
Product Lifecycle:Active
Product description
Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker - supplementary protector,Low levels of inrush current are expected,1 A,15 kAIC,Two-pole,3-5X /n,50-60 Hz,Standard terminals,B Curve
Product Details
- Number of Poles 2 Pole
- Current Rating 1 A
- Trip Curve B
- SCCR 10 kA
- UL Standard 1077
- UL CCN QVNU2
- UL File No. E177451
- Terminal Type Compression
- Amps: 32 A
- Wire Size: 18 to 4/18 to 8 AWG
- Trip Setting: 3 to 5 x Rated Current
- Terminal Type: Line/Load
- Poles: 2
- Mounting: DIN Rail
- Interrupting Rating: 10 kA
- Volts: 277/480 VAC
- Shipping Weight: 0.55
- Size: 1.4 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
- Series: FAZ
- Shipping Width: 3.00 In.
- Type: Current Limiting
- UPC: 015082787190
- Shipping Length: 3.00 In.
- Approval: UL 1077
- Shipping Height: 4.00 In.
- Number of poles Two-pole
- Amperage Rating 1 A
- Frequency rating 50-60 Hz
- Trip Type 3-5X /n
- Terminals Standard
- Circuit protection B curve
- Application Suitable for applications where low levels of inrush current are expected
- Interrupt rating 15 kAIC
- Type UL 1077 Industrial miniature circuit breaker - supplementary protector
- Catalog Notes For applications that require protection due to potential wiring damage at low fault conditions.
- Product Name Eaton FAZ supplementary protector
- Warranty 1 year
- Product Width 1.5 in
- Product Height 3.5 in
- Catalog Number FAZ-B1/2
- Product Weight .5 lb
- EAN 4015082787196
- Certifications CSA Std. C22.2 No.235 UL 1077 IEC 60947-2
- Product Length/Depth 3 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
