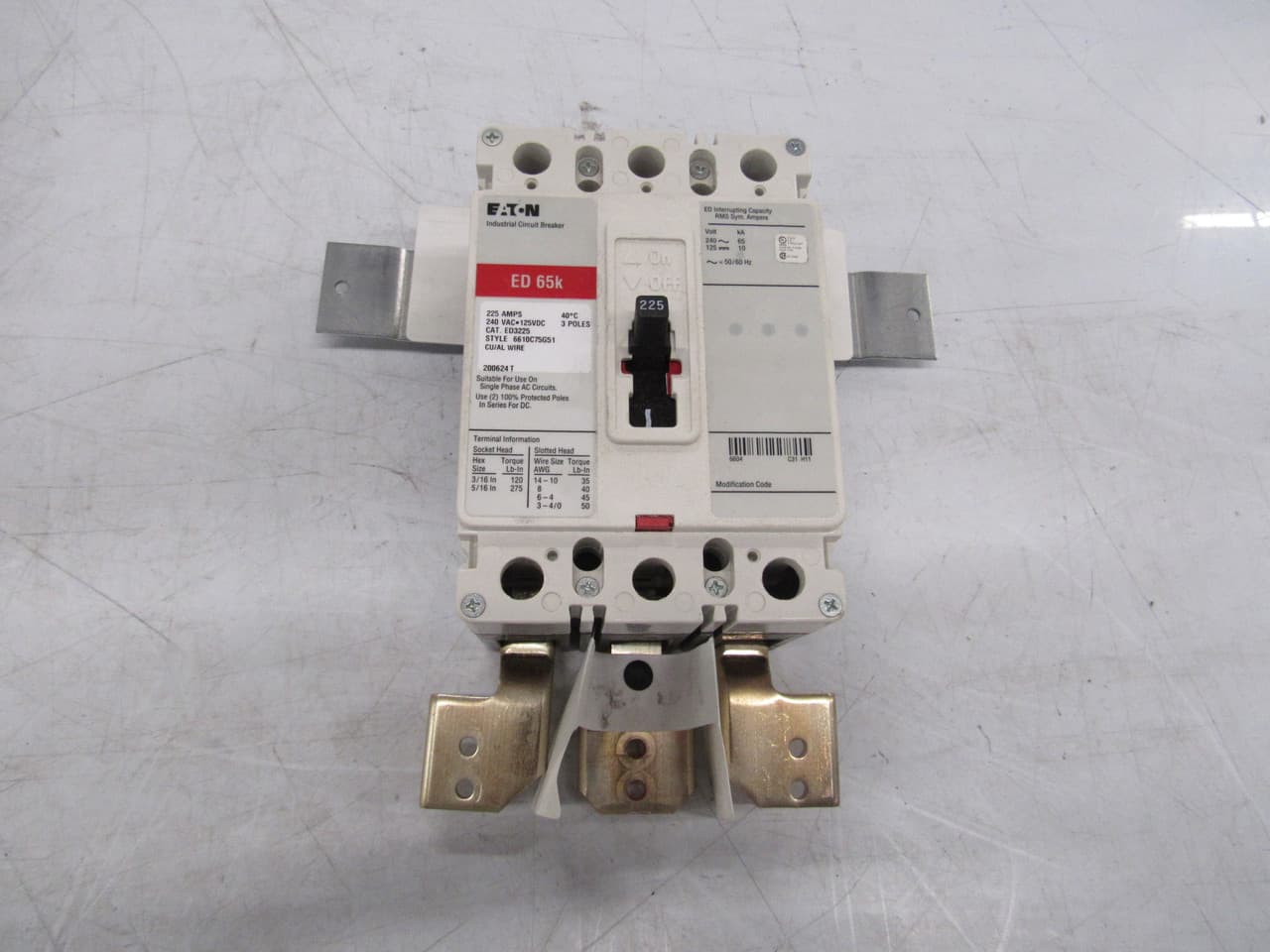

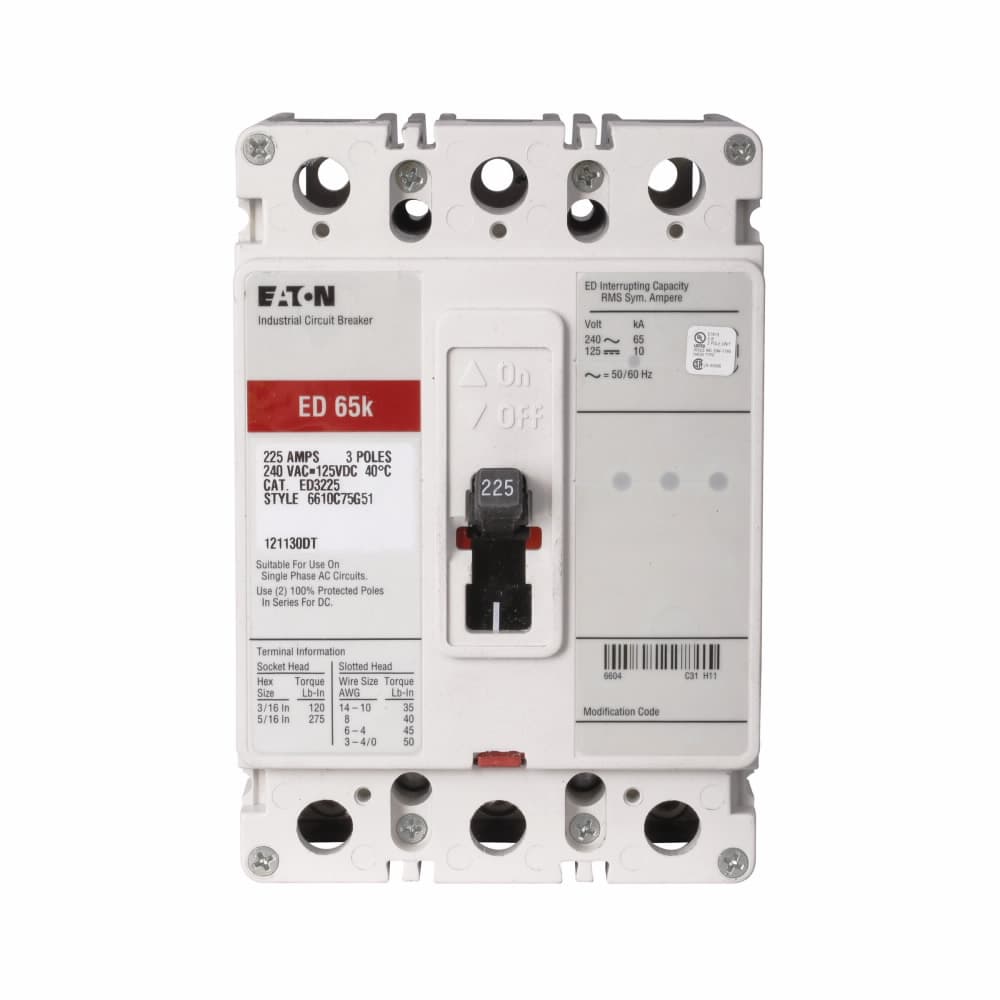

ED3225S22 Eaton Molded Case Circuit Breakers (MCCB)

Eaton ED3225S22 Eaton Series C complete molded case circuit breaker, F-frame, ED, Fixed thermal, fixed magnetic trip, Three-pole, 225A, 240 Vac, 125 Vdc, 65 kAIC at 240 Vac, Load side, 48-127 Vac or 48-60 Vdc rear with right pigtail, 50/60 Hz
Eaton

Part#:ED3225S22

Manufacturer:Eaton

Product Lifecycle:Active

Get a quick Quote!

Eaton Series C complete molded case circuit breaker, F-frame, ED, Fixed thermal, fixed magnetic trip, Three-pole, 225A, 240 Vac, 125 Vdc, 65 kAIC at 240 Vac, Load side, 48-127 Vac or 48-60 Vdc rear with right pigtail, 50/60 Hz

About the manufacturer: Eaton is one of the manufacturers that offers Molded Case Circuit Breakers (MCCB) that you can order at Advantage Electric Supply site. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.

Check out the ED3225S22 Eaton price in the box on the right side or send a quick quote.

Product Details

  • Circuit breaker type
    ED
  • Warranty
    Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Amperage Rating
    225 A
  • Number of poles
    Three-pole
  • Trip Type
    Fixed thermal, fixed magnetic
  • Voltage rating
    240 Vac, 125 Vdc
  • Interrupt rating
    65 kAIC at 240 Vac
  • Frequency rating
    50 to 60 Hz
  • Circuit breaker frame type
    Complete breaker
  • Shunt trip
    48-127 Vac or 48-60 Vdc right pigtail rear
  • Frame
    F
  • Terminals
    Load side
  • Series
    Series C
  • Product Name
    Eaton Series C complete molded case circuit breaker
  • Product Weight
    4.5 lb
  • Catalog Number
    ED3225S22
  • Product Height
    4.13 in
  • Product Width
    4.13 in
  • Product Length/Depth
    3.38 in
  • UPC
    786679018026
  • Certifications
    UL Listed

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

$3,866.86
