ECL03B1ACA-S3 Eaton Industrial Automation Components

Name: ECL03B1ACA-S3
Brand: Eaton

ECL03B1ACA-S3 on Advantage Electric Supply

Part#:ECL03B1ACA-S3

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

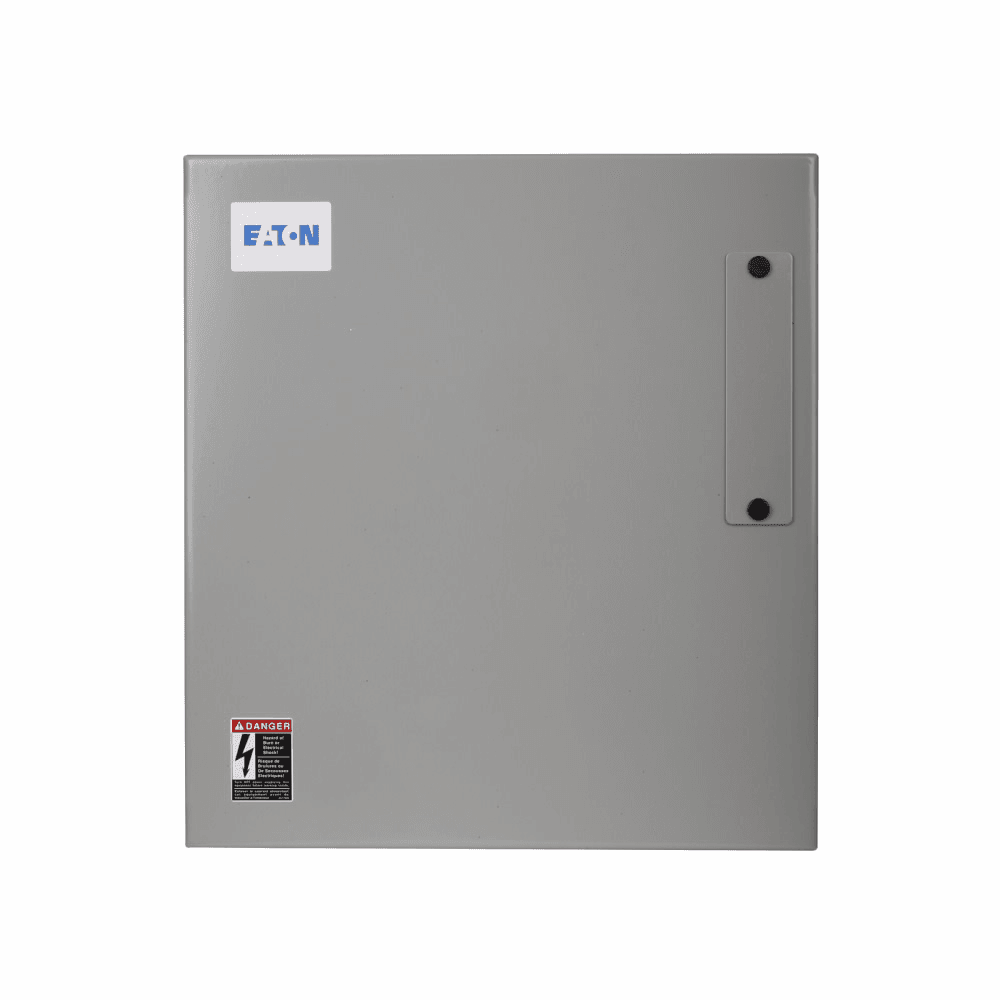

ECL03B1ACA-S3 Eaton - Eaton CN35 electrically held lighting contactor, HAND/OFF/AUTO selector switch, 20 A, 110 V/50 Hz, 120 V/60 Hz, 20 A, NEMA 1, Painted steel, 45 mm, 20-pole, Electrically held, A202 Series, Non-combination electrically held

Product Details

Type
Non-combination Electrically Held
Height
12.6 inches
Coil Voltage
220 volts
Amperage
20 amperes
Weight
5.2 pounds
Frame
45 millimeters
Enclosure Material
Painted Steel
Length
7.73 inches

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
