SNAPXL-24ST-SC-SM DINSpace Data & Networking Devices

SNAPXL-24ST-SC-SM on Advantage Electric Supply
DINSpace

Part#:SNAPXL-24ST-SC-SM

Manufacturer:DINSpace

Category:Data & Networking Devices

Product Lifecycle:Active

Get a quick Quote!

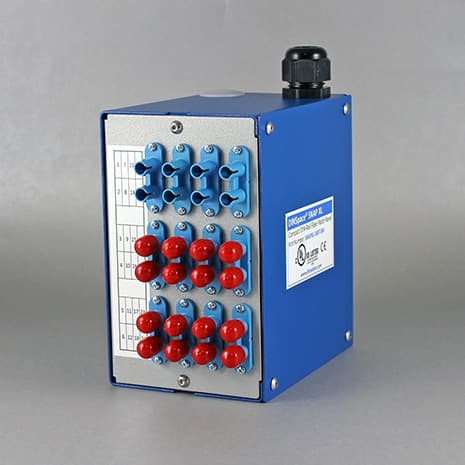

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST/SC Singlemode Duplex Fiber Adapters, UL/CE.Compact DIN-Rail or surface mount fiber optic patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes a

About the manufacturer: DINSpace is one of the manufacturers that offers Data & Networking Devices that you can order at Advantage Electric Supply site. DINSpace, a division of Ergotech Controls, Inc., is situated in Addison, TX, a suburb of Dallas. Ergotech Controls, Inc. has been providing industrial connectivity equipment and engineering services since 1998.

Check out the SNAPXL-24ST-SC-SM DINSpace price in the box on the right side or send a quick quote.

Product Details

  • Mechanical Construction
    Dimensions with adapters installed: (H x D x W) 7.75" x 5.75" x 3.5"; Mounting Options: Rear DIN-Rail, Side DIN-Rail or surface mount; Weight: 2.3lbs.; Protection class: IP20
  • Materials of Construction
    Patch panel body and faceplate: 18 gauge powder-coat painted steel; Fiber optic adapters: UL 90 V-0 Thermoplastic; Cable Glands: Plastic with max. cable diameter of 12mm (14mm max. also available)
  • Specifications
    Standards: UL Listed 1863 (Communications-Circuit Accessories), CE; Operating temperature: -40 to +75 deg. C; Storage/transport temperature: -40 to +80 deg. C; Relative humidity (non-condensing): 10% to 95%; Insertion Loss: ≤.3dB (Multimode), ≤.2dB (Singl

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SNAPXL-24ST-SC-SM Specs

SNAPXL-24ST-SC-SM InstallationandOperationInstructions.pdf
SNAPXL-24ST-SC-SM DataSheet.pdf
