ZD503A Carlo Gavazzi Industrial Automation Components

ZD503A on Advantage Electric Supply
Carlo Gavazzi

Part#:ZD503A

Manufacturer:Carlo Gavazzi

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

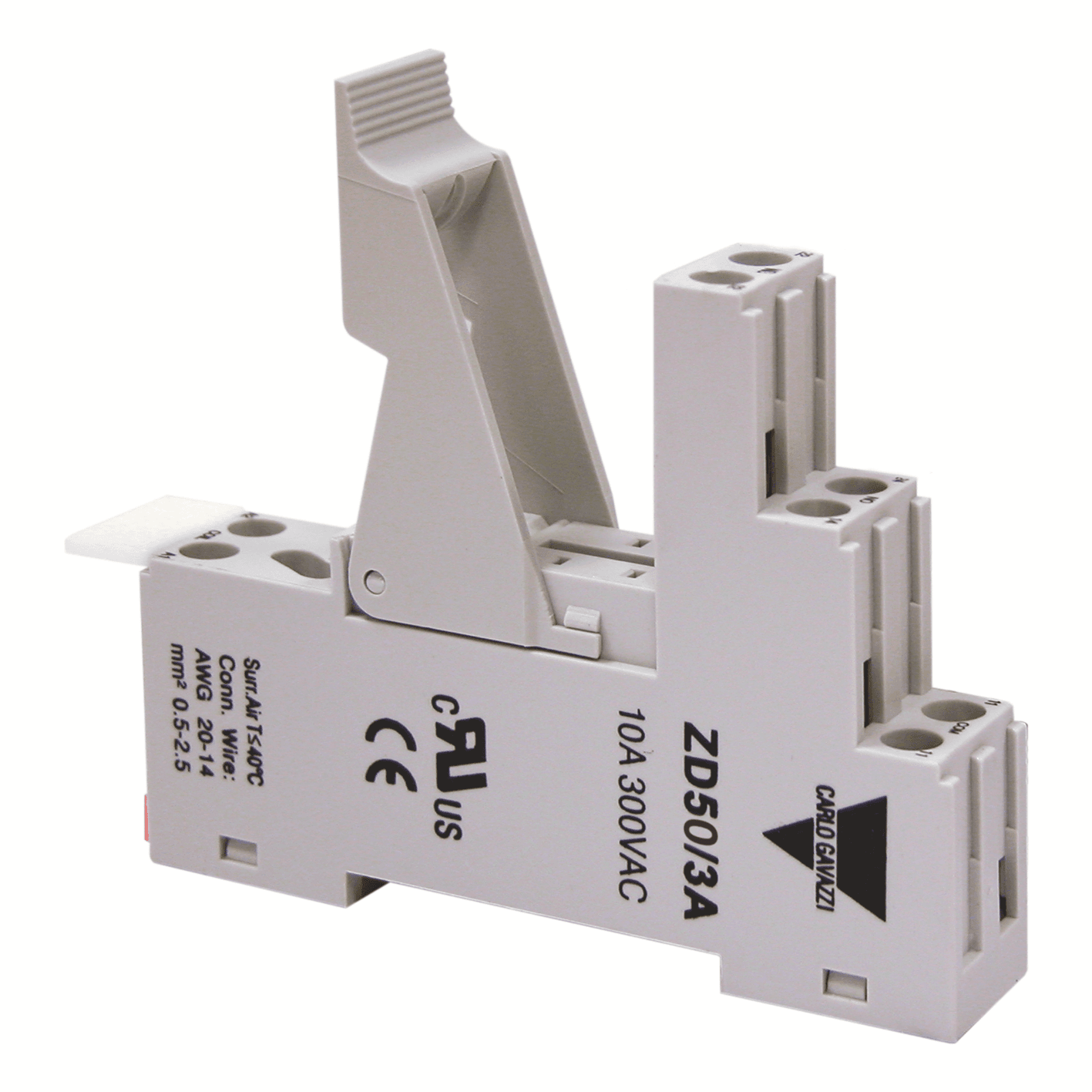

Sockets for MZ Slim Industrial Electromechanical Relays, 8 poles, 2 SPDT (2 Change Over contacts), 10A, Screw terminals, Terminals on 3 levels, with included ID Tag

Product Details

  • Depth
    15.6 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Height
    76.4 mm
  • Type of electric connection
    Plug-in connection; Plug-in connection; Plug-in connection; Plug-in connection; Plug-in connection
  • Width
    61 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
