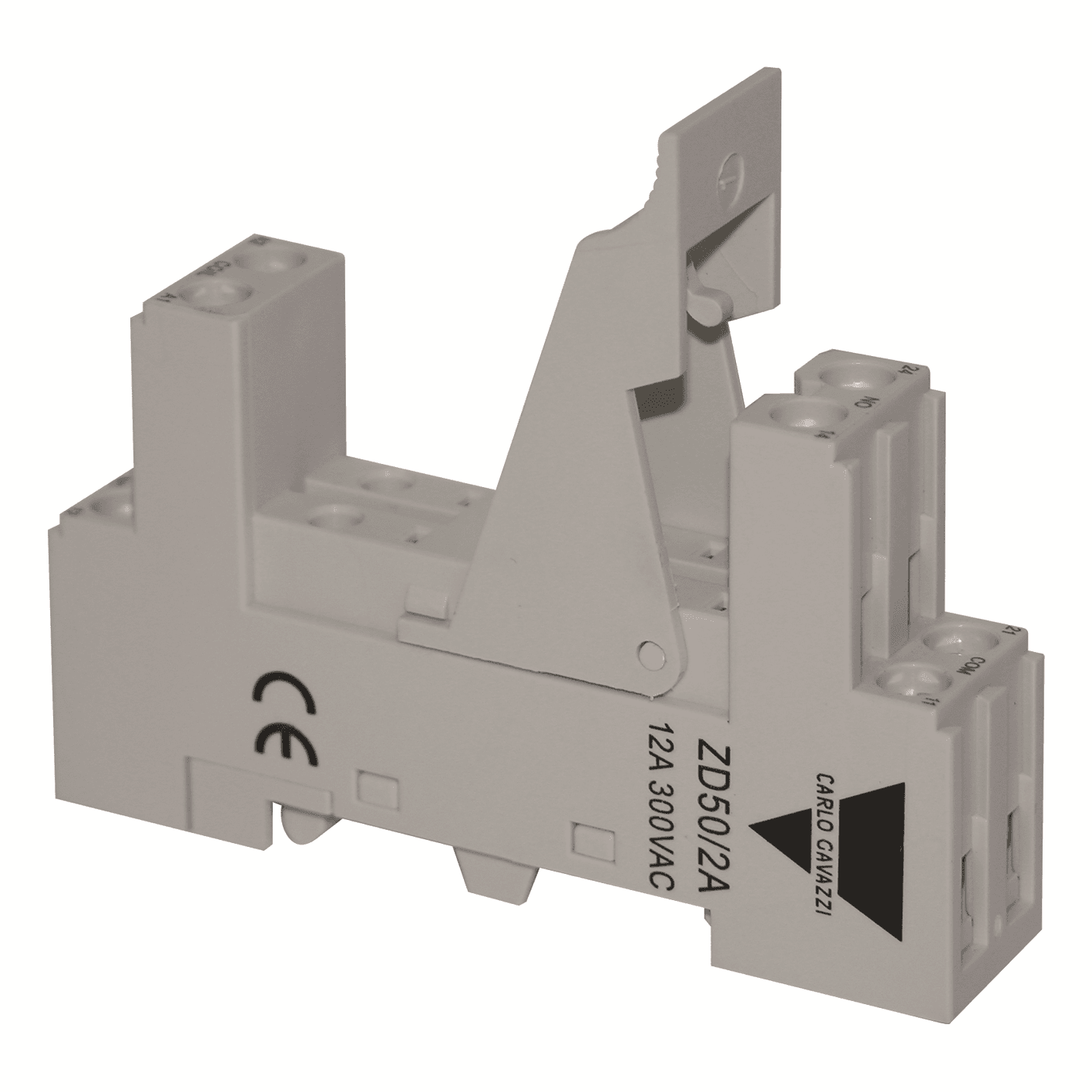

ZD502A Carlo Gavazzi Industrial Automation Components
Part#:ZD502A
Manufacturer:Carlo Gavazzi
Category:Industrial Automation Components
Product Lifecycle:Active
Product description
Sockets for MZ Slim Industrial Electromechanical Relays, 8 poles, 2 SPDT (2 Change Over contacts), 10A, Screw terminals, Terminals on 2 levels, with included ID Tag
Product Details
- Depth 15.6 mm
- Height 42.5 mm
- Width 76.4 mm
- Type of electric connection Plug-in connection; Plug-in connection; Plug-in connection; Plug-in connection; Plug-in connection
- Mounting method DIN rail (top hat rail) 35 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
