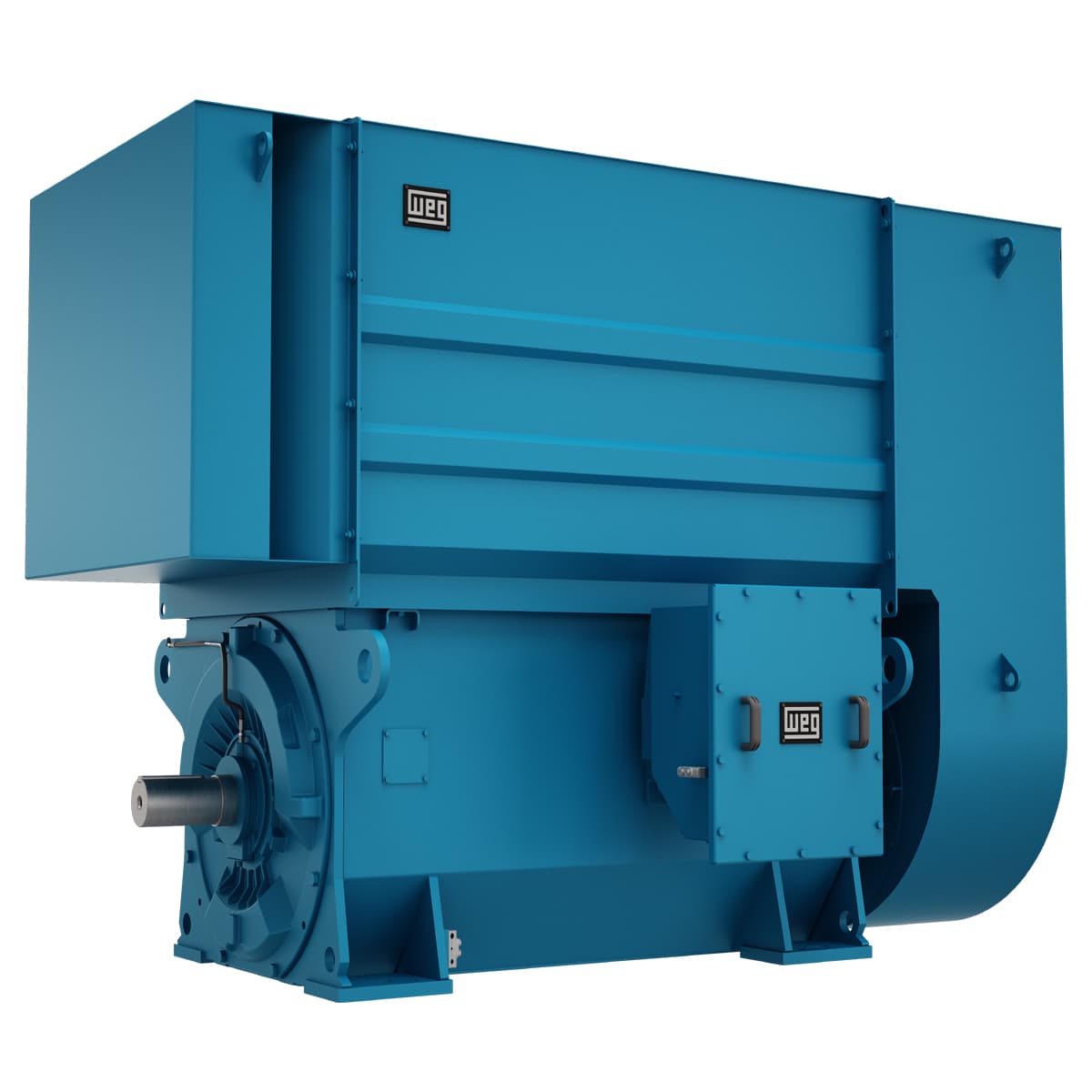

125018WT3X5810-W60MV WEG AC Motors
Product Details
- Rated speed 1791 rpm
- Rotation¹ Both (CW and CCW)
- Output 1000 HP (750 kW)
- Breakdown torque 290 %
- Degree of Protection IP24
- Flange Without
- Rated torque 2930 ft.lb
- Temperature rise 80 K
- Number of poles 4
- Rated current 235/135 A
- L. R. Amperes 1669/959 A
- Insulation Class F
- Mounting F-1
- Number of Poles 4
- Moment of inertia (J) 231 sq.ft.lb
- Starting Method VFD
- Voltage 2300/4000 V
- Frame L5810/11
- LRC 7.1x(Code H)
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Slip 0.50 %
- Locked rotor time 27s (cold) 15s (hot)
- Approx. weight³ 7718 lb
- Rated voltage 2300/4000 V
- No load current 91.0/52.3 A
- Standard NEMA MG-1
- Ambient temperature 0°C to +40°C
- Frequency 60 Hz
- Locked rotor torque 90 %
- Altitude 1000 m.a.s.l.
- Output rating 1250 HP
- Service factor 1.15
- Noise level² 85.0 dB(A)
- Terminal box¹ Left position
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
