10036XT3H405TS WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 575 V
- Output Rating 100 HP
- Rated Speed 3550 rpm
- Flange Type Without
- Frame 404/5TS
- Insulation Class F
- Starting Method Direct On Line
- Flange Without
- Rated voltage 575 V
- Locked rotor torque 250 %
- Service factor 1.15
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Rated torque 148 ft.lb
- Mounting F-1
- Design B
- Output 100 HP (75 kW)
- No load current 20.0 A
- Voltage 575 V
- L. R. Amperes 572 A
- LRC 6.5x(Code G)
- Degree of Protection IP55
- Standard NEMA MG-1
- Slip 1.39 %
- Breakdown torque 280 %
- Ambient temperature -20°C to +40°C
- Noise level² 85.0 dB(A)
- Terminal box¹ Left position
- Rated current 88.0 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Moment of inertia (J) 13.2 sq.ft.lb
- Output rating 100 HP
- Rated speed 3550 rpm
- Duty Cycle Cont.(S1)
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Number of Poles 2
- Locked rotor time 37s (cold) 21s (hot)
- Approx. weight³ 1218 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
10036XT3H405TS Related Documents
Manufacturer warranty
10036XT3H405TS WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

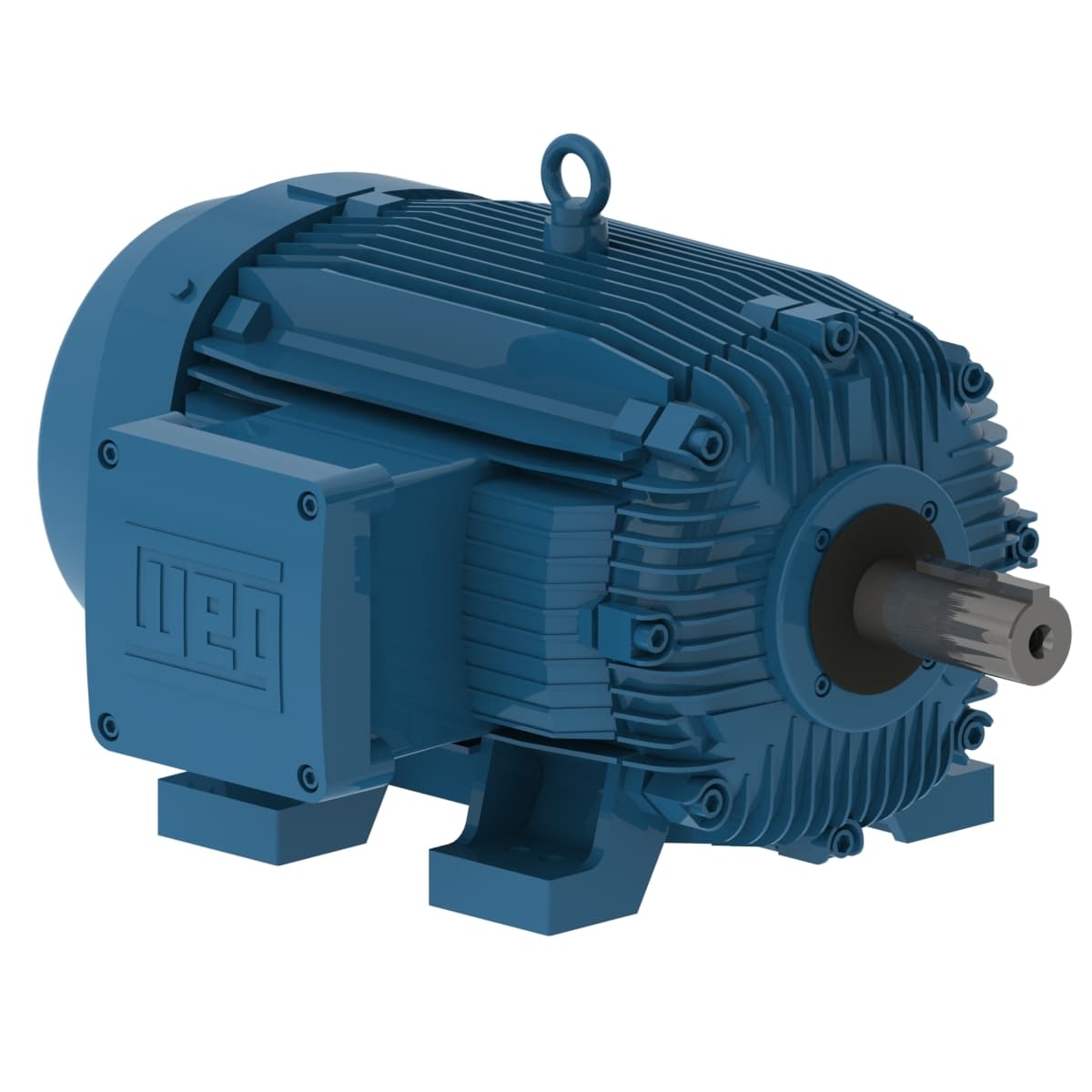

W21 Explosion-proof Motor NEMA Premium Efficiency 100 HP 2P 404/5TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
