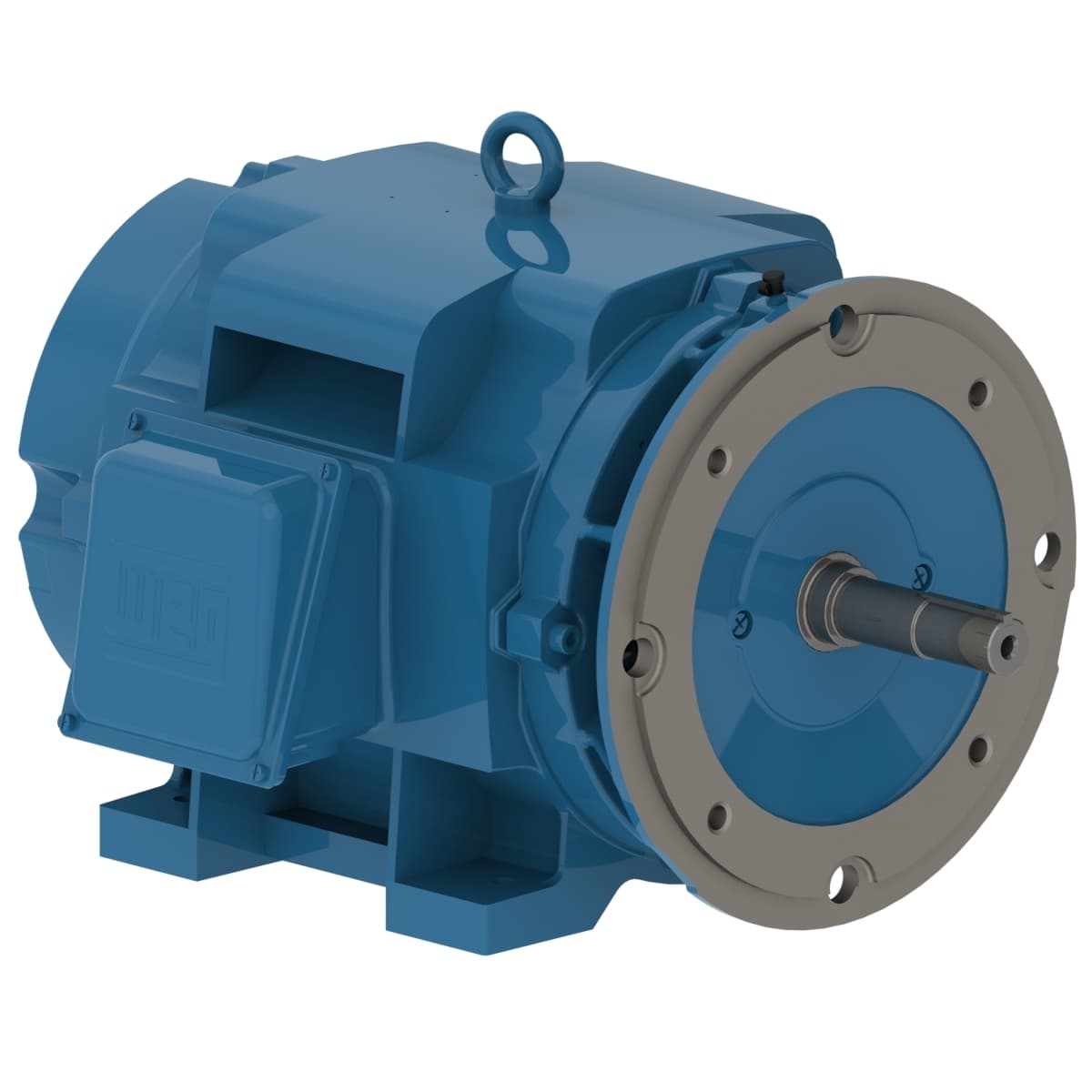

06036OT3E326JM WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  60 HP
• Rated Speed
  3560 rpm
• Flange Type
  C
• Standard
  NEMA MG-1
• Terminal box¹
  Left position
• Flange
  C
• Output rating
  60 HP
• Synchronous speed
  3600 rpm
• Noise level²
  75.0 dB(A)
• Number of poles
  2
• Voltage
  230/460 V
• Enclosure
  IC01 - ODP
• Approx. weight³
  531 lb
• Altitude
  1000 m.a.s.l.
• Rotation¹
  Both (CW and CCW)
• Degree of Protection
  IP23
• Mounting
  F-1
• Duty Cycle
  Cont.(S1)
Ambient temperature
-20°C to +40°C
Starting Method
Direct On Line
Temperature rise
80 K
Service factor
1.15
Moment of inertia (J)
4.36 sq.ft.lb
Design
B
Insulation Class
F
Locked rotor torque
220 %
Breakdown torque
229 %
LRC
6.0x(Code G)
Locked rotor time
43s (cold) 24s (hot)
Rated torque
88.5 ft.lb
No load current
43.0/21.5 A
L. R. Amperes
852/426 A
Frequency
60 Hz
Rated current
142/71.0 A
Frame
326JM
Rated speed
3560 rpm
Number of Poles
2
Output
60 HP (45 kW)
Rated voltage
230/460 V
Slip
1.11 %
