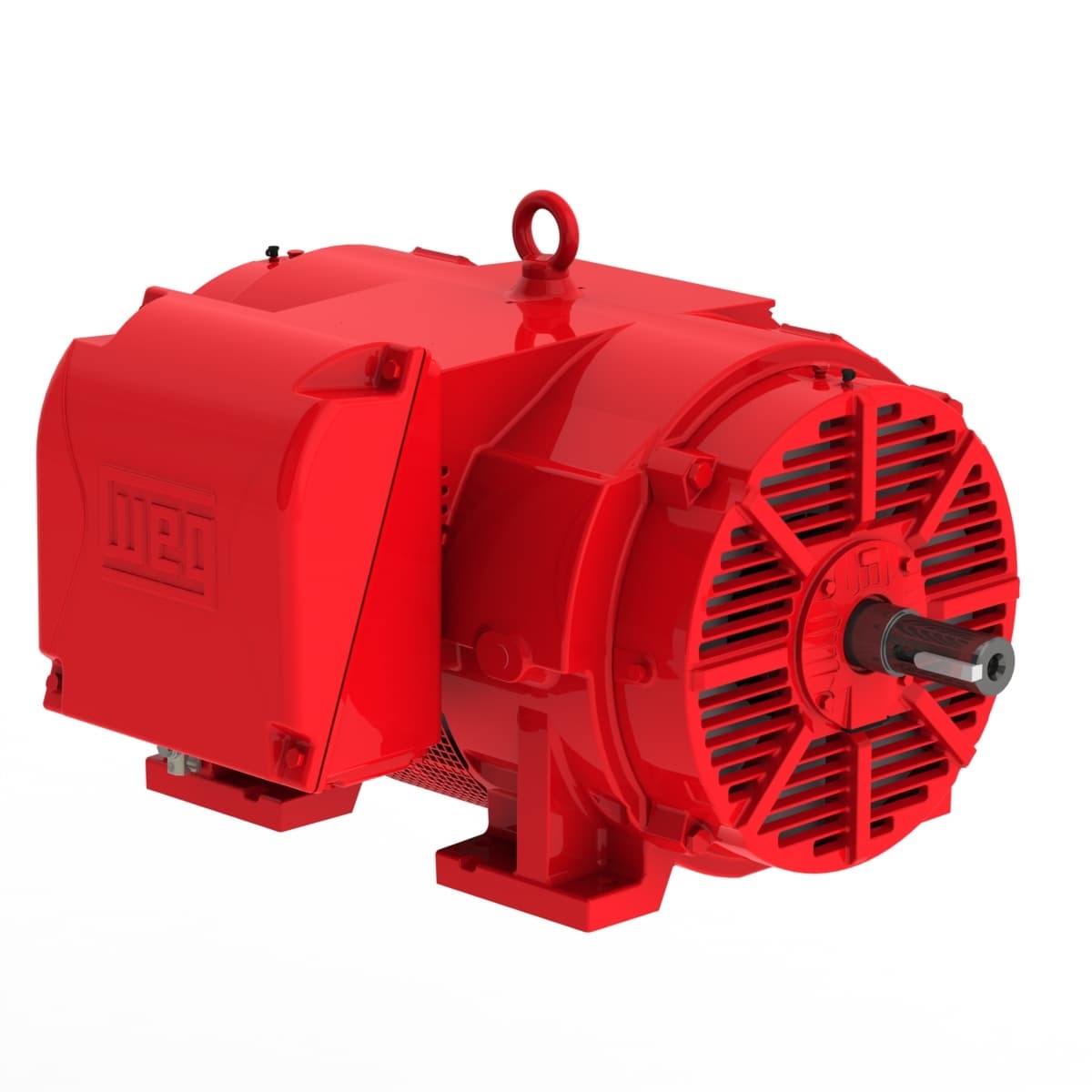

05015OP3OFP326TS-W40 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 380 V
- Output Rating 50 HP
- Rated Speed 1471 rpm
- Flange Type Without
- L. R. Amperes 420 A
- Temperature rise 70 K
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- No load current 29.0 A
- Duty Cycle Cont.(S1)
- Mounting F-1
- Number of poles 4
- Breakdown torque 200 %
- Moment of inertia (J) 7.08 sq.ft.lb
- Degree of Protection IP23
- Output rating 50 HP
- Rated current 73.7 A
- Rated voltage 380 V
- Starting Method Direct On Line
- Synchronous speed 1500 rpm
- Rated speed 1471 rpm
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- LRC 5.7x(Code F)
- Frame 324/6TS
- Ambient temperature -20°C to +50°C
- Flange Without
- Rated torque 178 ft.lb
- Locked rotor time 50s (cold) 28s (hot)
- Enclosure IC01 - ODP
- Output 50 HP (37 kW)
- Locked rotor torque 200 %
- Voltage 380-400-415 V
- Frequency 50 Hz
- Design B
- Standard NEMA MG-1
- Slip 1.93 %
- Insulation Class F
- Approx. weight³ 531 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
