04018OT3E324JP-W40 WEG AC Motors
Part#:04018OT3E324JP-W40
Manufacturer:WEG
Category:AC Motors
Alt. Part#:7909492233206
Product Lifecycle:Active
Get a quick Quote!

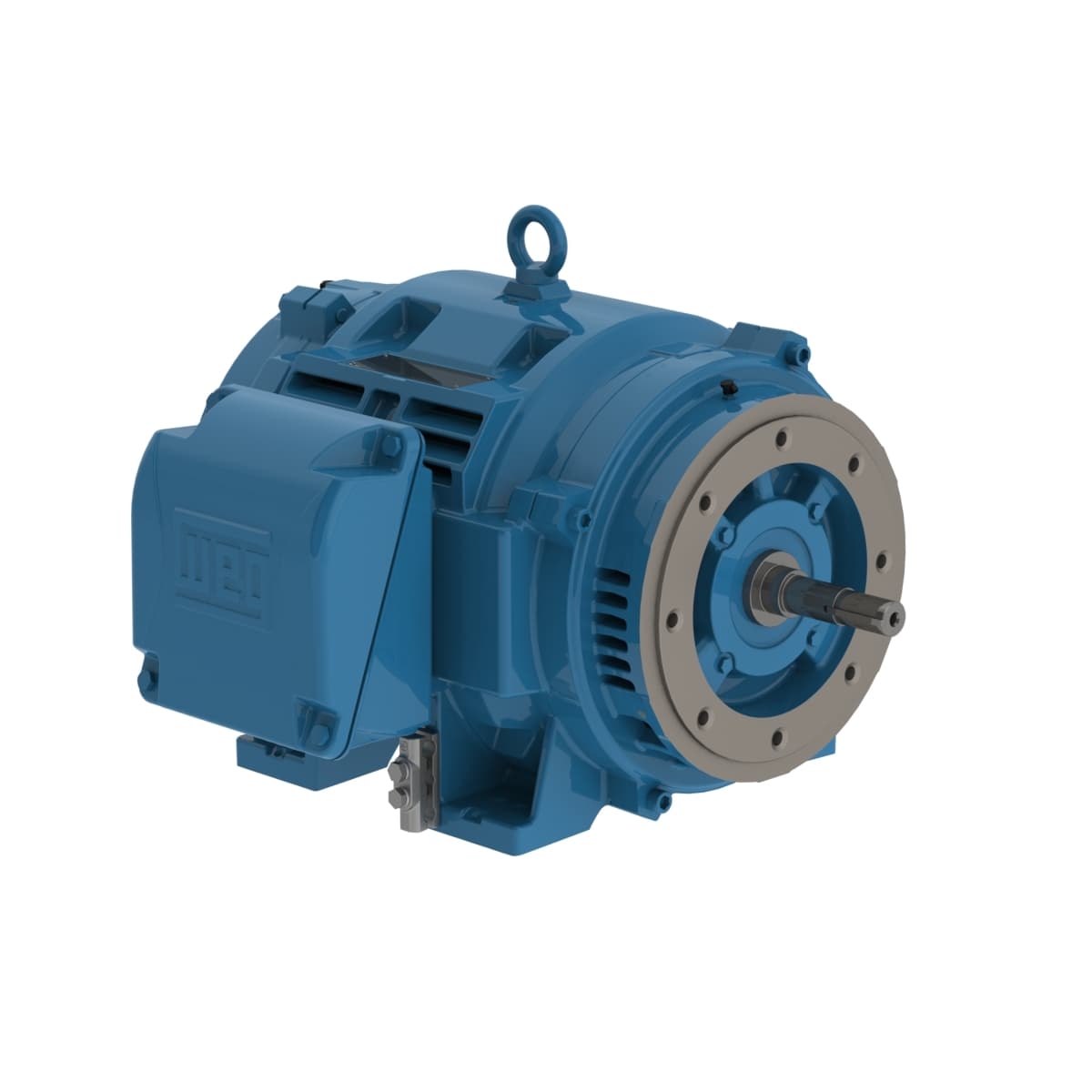

W40 JP Pump NEMA Premium Efficiency 40 HP 4P 324JP 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 04018OT3E324JP-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 40 HP
- Rated Speed 1775 rpm
- Flange Type C
- Flange C
- Synchronous speed 1800 rpm
- Terminal box¹ Left position
- Output rating 40 HP
- Voltage 230/460//380 V
- Number of poles 4
- Standard NEMA MG-1
- Approx. weight³ 461 lb
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Noise level² 66.0 dB(A)
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- Enclosure IC01 - ODP
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Service factor 1.25
- Insulation Class F
- Locked rotor time 23s (cold) 13s (hot)
- Design B
- Breakdown torque 240 %
- Locked rotor torque 200 %
- Moment of inertia (J) 5.69 sq.ft.lb
- No load current 37.0/18.5 A
- Rated torque 118 ft.lb
- LRC 6.2x(Code G)
- Number of Poles 4
- Slip 1.39 %
- Output 40 HP (30 kW)
- Rated speed 1775 rpm
- L. R. Amperes 590/295 A
- Rated voltage 230/460 V
- Frame 324JP
- Rated current 95.2/47.6 A
- Frequency 60 Hz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 04018OT3E324JP-W40 Specs
