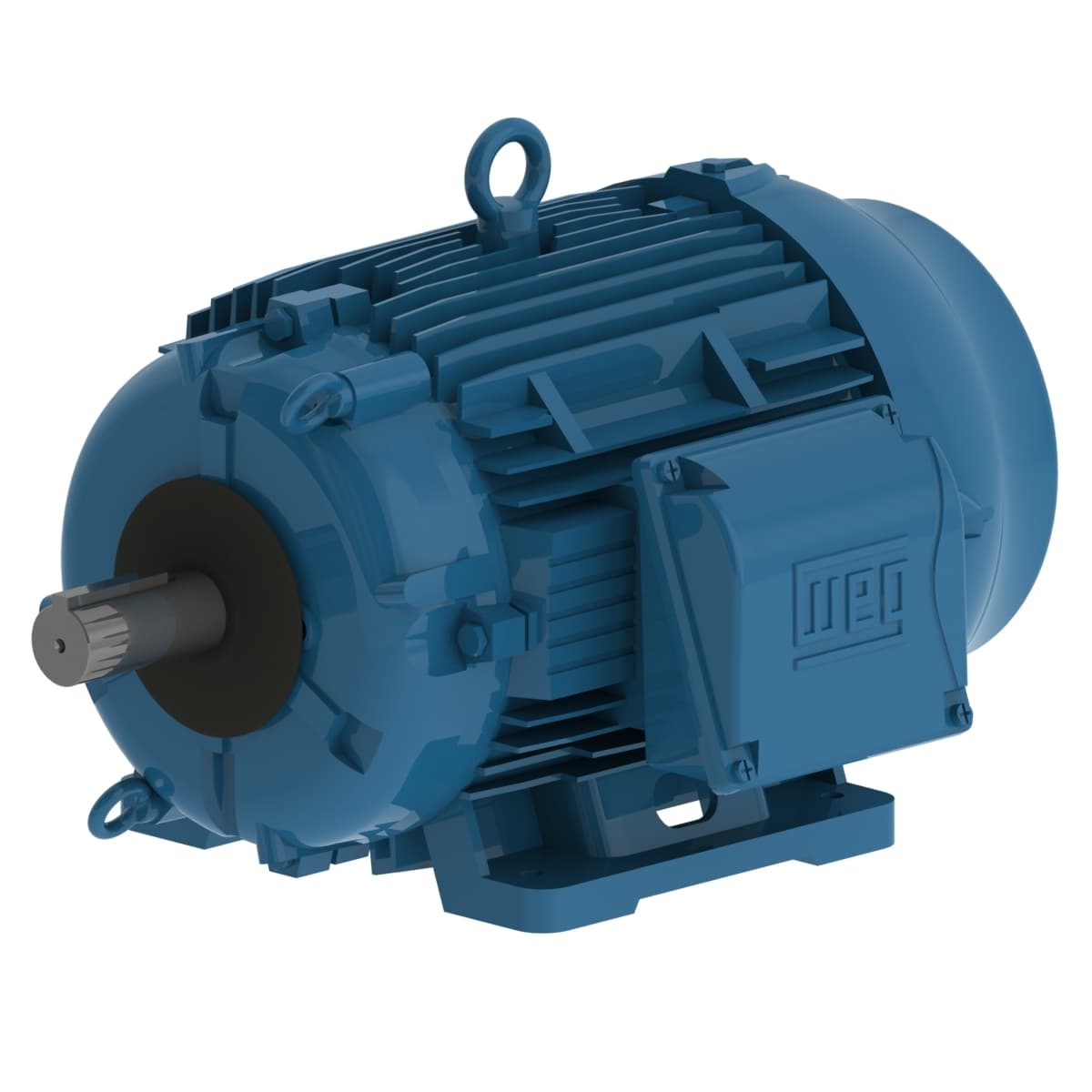

03018ET3ECT286T-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 30 HP
- Rated Speed 1770 rpm
- Flange Type Without
- Rated current 70.2/35.1 A
- Breakdown torque 240 %
- Degree of Protection IP55
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Output 30 HP (22 kW)
- Insulation Class F
- Enclosure IC411 - TEFC
- Slip 1.67 %
- Rated torque 89.0 ft.lb
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Rated speed 1770 rpm
- No load current 24.6/12.3 A
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Right position
- Number of Poles 4
- Design B
- Number of poles 4
- Frequency 60 Hz
- Locked rotor time 36s (cold) 20s (hot)
- Duty Cycle Cont.(S1)
- Output rating 30 HP
- Voltage 230/460//380 V
- L. R. Amperes 428/214 A
- Moment of inertia (J) 5.85 sq.ft.lb
- Mounting F-2
- Rated voltage 230/460 V
- LRC 6.1x(Code G)
- Altitude 1000 m.a.s.l.
- Approx. weight³ 444 lb
- Flange Without
- Frame 284/6T
- Service factor 1.25
- Noise level² 63.0 dB(A)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
