02536XT3E284TS WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 25 HP
- Rated Speed 3545 rpm
- Flange Type Without
- L. R. Amperes 383/191 A
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Rated current 57.1/28.6 A
- Breakdown torque 240 %
- Ambient temperature -20°C to +40°C
- Output rating 25 HP
- Number of Poles 2
- LRC 6.7x(Code G)
- Duty Cycle Cont.(S1)
- Noise level² 75.0 dB(A)
- Number of poles 2
- Output 25 HP (18.5 kW)
- Rated torque 37.0 ft.lb
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Rated speed 3545 rpm
- Design B
- Degree of Protection IP55
- Flange Without
- Frequency 60 Hz
- Locked rotor time 59s (cold) 33s (hot)
- Mounting F-1
- Voltage 230/460//380 V
- Frame 284TS
- Moment of inertia (J) 2.58 sq.ft.lb
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Insulation Class F
- Approx. weight³ 466 lb
- Slip 1.53 %
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
- No load current 12.6/6.30 A
- Service factor 1.15
- Temperature rise 80 K
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
02536XT3E284TS Related Documents
Manufacturer warranty
02536XT3E284TS WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

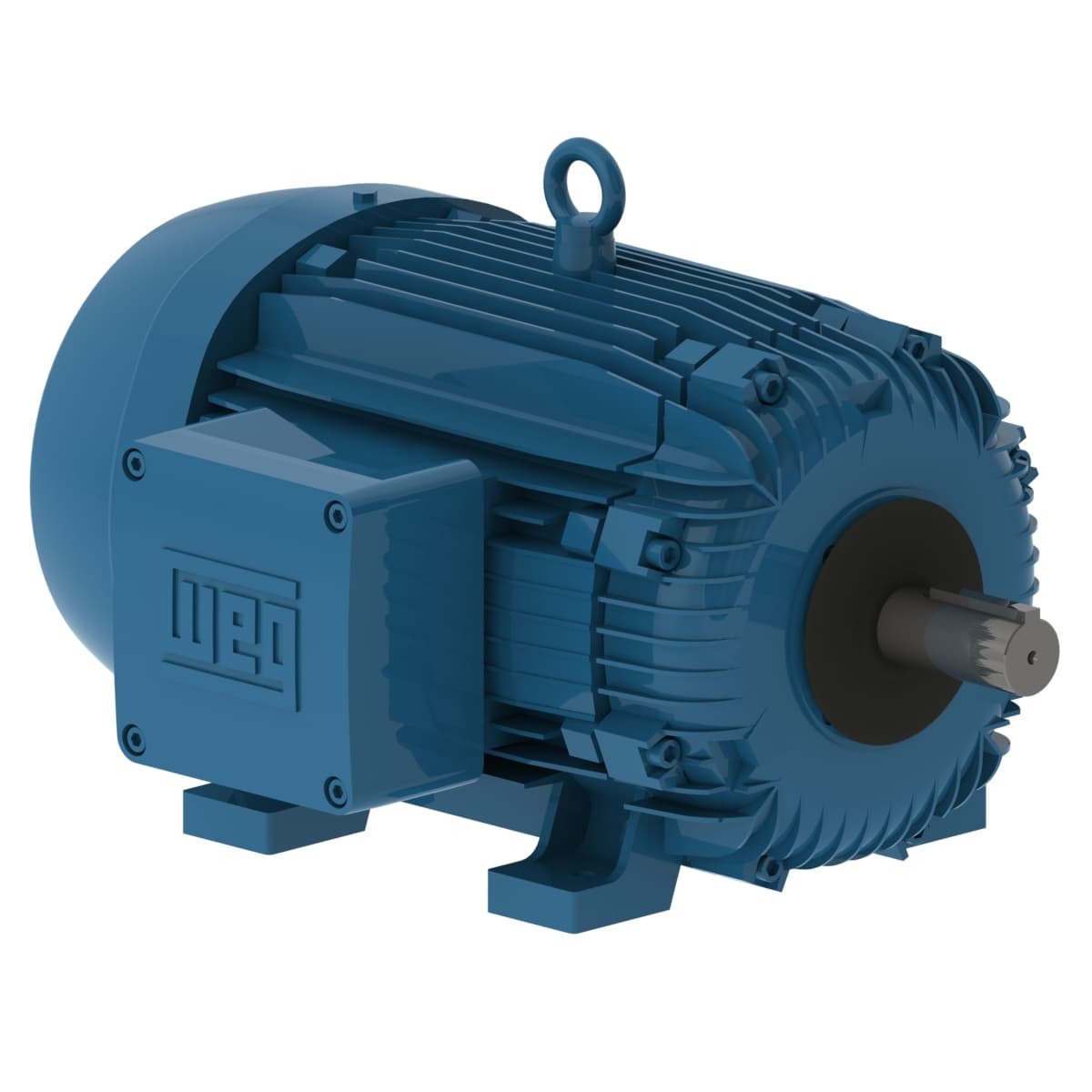

W21 Explosion-proof Motor NEMA Premium Efficiency 25 HP 2P 284TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
