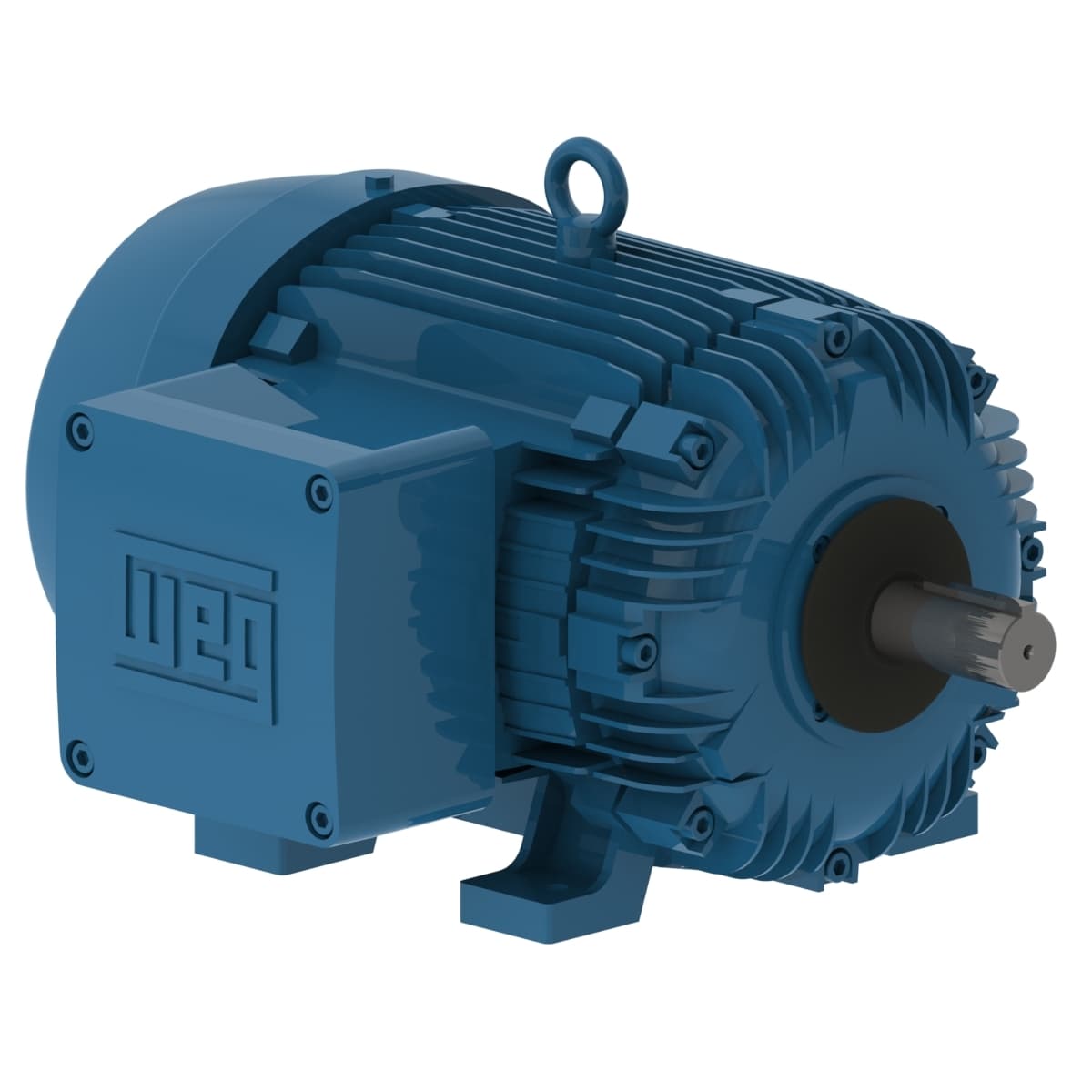

00712XT3E254T WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 230/460 V
- Output Rating 7.5 HP
- Rated Speed 1175 rpm
- Flange Type Without
- L. R. Amperes 136/68.1 A
- LRC 7.0x(Code J)
- Output 7.5 HP (5.5 kW)
- Design B
- Service factor 1.15
- Degree of Protection IP55
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Number of poles 6
- Rated current 19.5/9.73 A
- Mounting F-1
- Locked rotor torque 270 %
- Frequency 60 Hz
- Rated voltage 230/460 V
- Frame 254T
- No load current 10.4/5.20 A
- Insulation Class F
- Temperature rise 80 K
- Standard NEMA MG-1
- Locked rotor time 45s (cold) 25s (hot)
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Synchronous speed 1200 rpm
- Rated speed 1175 rpm
- Duty Cycle Cont.(S1)
- Noise level² 59.0 dB(A)
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Slip 2.08 %
- Rated torque 33.5 ft.lb
- Moment of inertia (J) 3.32 sq.ft.lb
- Flange Without
- Output rating 7.5 HP
- Number of Poles 6
- Breakdown torque 320 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 327 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
