00518ET3P184T-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 200 V
- Output Rating 5 HP
- Rated Speed 1750 rpm
- Flange Type Without
- Design B
- Temperature rise 80 K
- Voltage 200 V
- Rated speed 1750 rpm
- LRC 7.0x(Code J)
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Frame 182/4T
- No load current 7.92 A
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Output 5 HP (3.7 kW)
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Output rating 5 HP
- Slip 2.78 %
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Rated current 14.9 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Frequency 60 Hz
- Moment of inertia (J) 0.3080 sq.ft.lb
- Starting Method Direct On Line
- Flange Without
- Number of Poles 4
- Rated torque 15.0 ft.lb
- Approx. weight³ 74.9 lb
- L. R. Amperes 104 A
- Locked rotor time 28s (cold) 16s (hot)
- Noise level² 56.0 dB(A)
- Rated voltage 200 V
- Breakdown torque 300 %
- Mounting F-1
- Number of poles 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00518ET3P184T-S Related Documents
Manufacturer warranty
00518ET3P184T-S WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

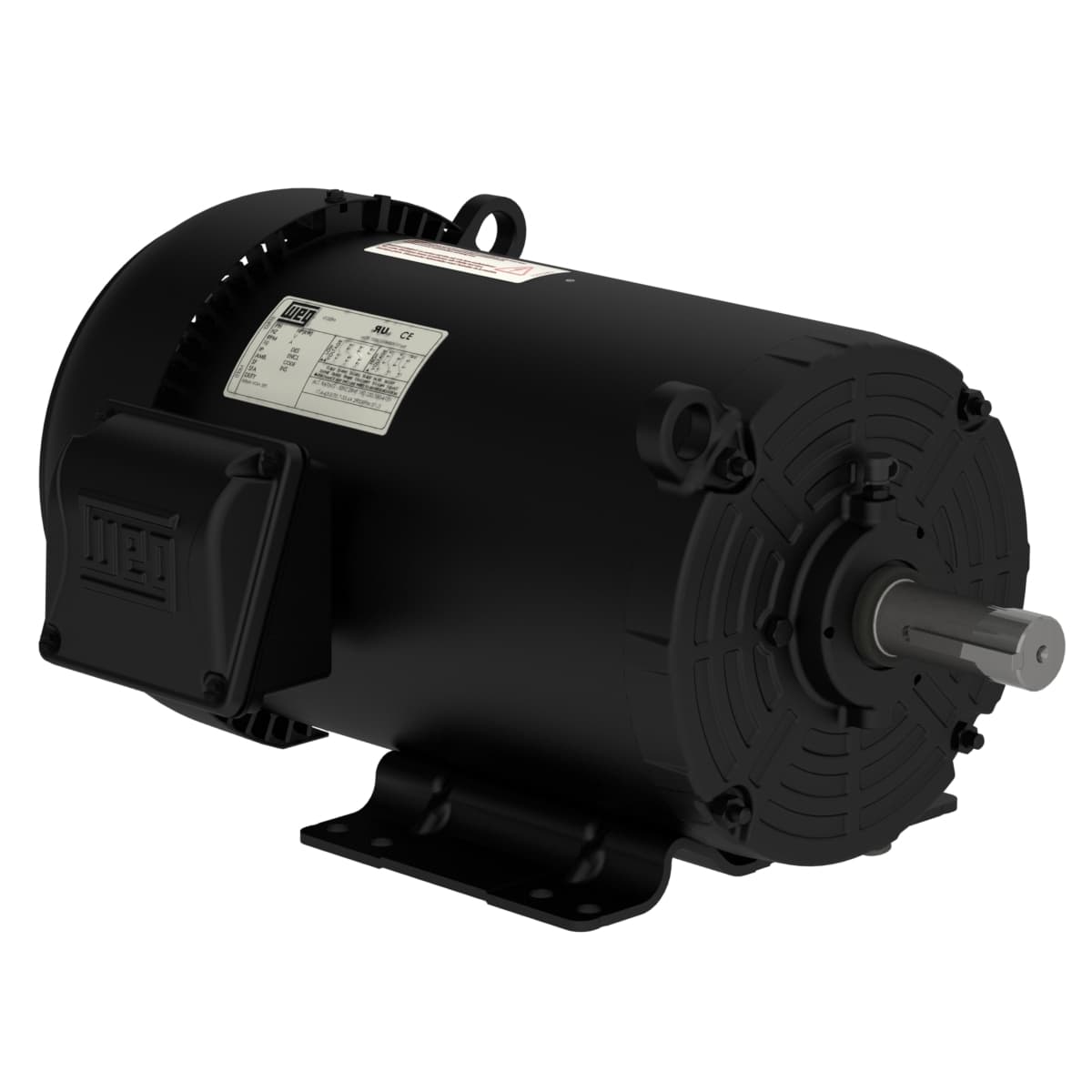

Rolled Steel NEMA Premium Efficiency 5 HP 4P 182/4T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
