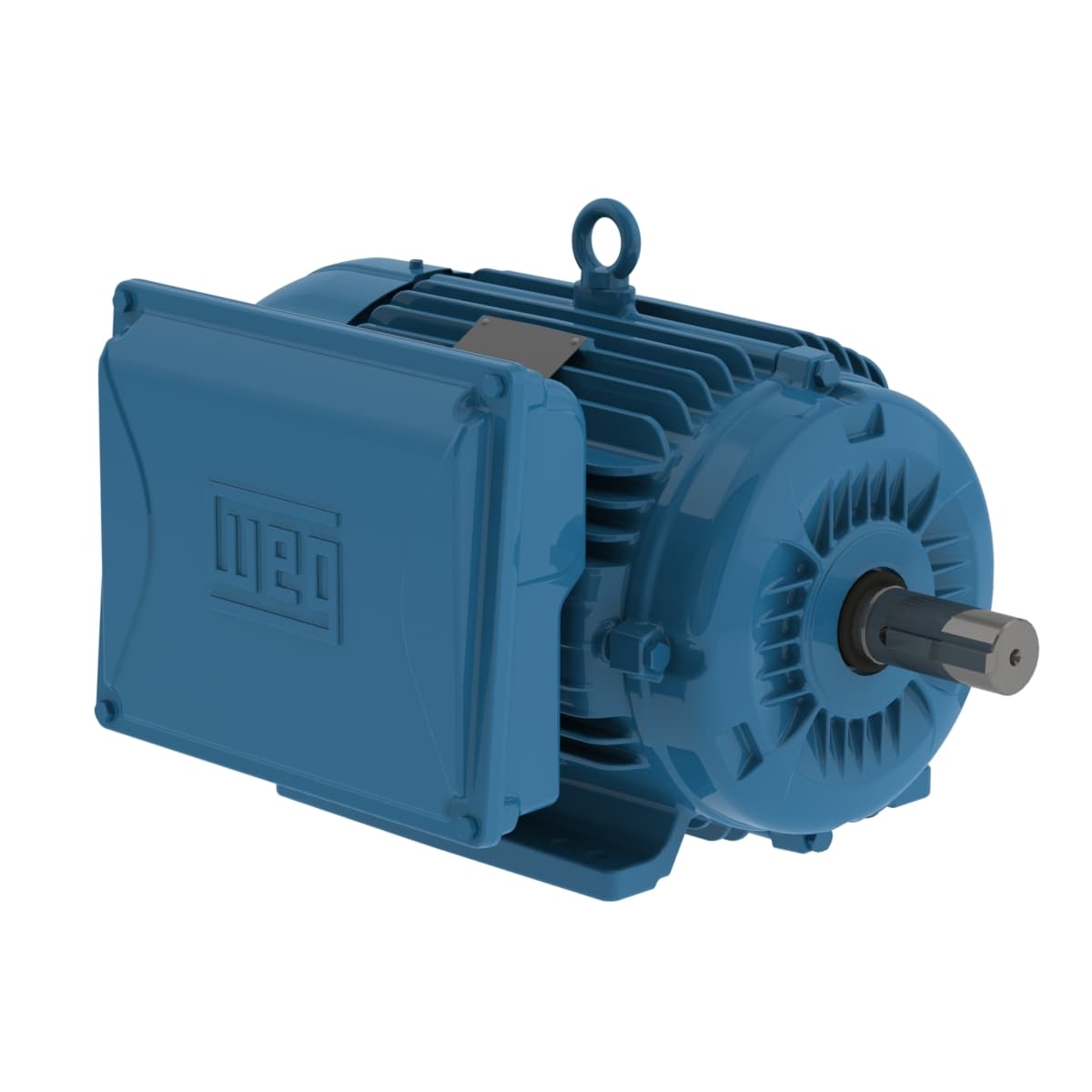

00312ES1E215T-W22 WEG AC Motors

Product Details

• Number of Poles
  6 Pole
• Voltage
  208-230/460 V
• Output Rating
  3 HP
• Rated Speed
  1170 rpm
• Flange Type
  Without
• Terminal box¹
  Left position
• Approx. weight³
  149 lb
• Flange
  Without
• Voltage
  208-230/460 V
• Output rating
  3 HP
• Synchronous speed
  1200 rpm
• Number of poles
  6
• Standard
  NEMA MG-1
• Rotation¹
  Both (CW and CCW)
• Enclosure
  IC411 - TEFC
• Noise level²
  63.0 dB(A)
• Mounting
  F-1
• Locked rotor torque
  180 %
• Locked rotor time
  9s (cold) 5s (hot)
• Ambient temperature
  -20°C to +40°C
Breakdown torque
200 %
Temperature rise
80 K
Service factor
1.15 (1.00 @ 208V)
Starting Method
Direct On Line
Duty Cycle
Cont.(S1)
Degree of Protection
IP55
Insulation Class
F
Altitude
1000 m.a.s.l.
Rated current
14.5-13.4/6.68 A
Moment of inertia (J)
1.28 sq.ft.lb
Number of Poles
6
Output
3 HP (2.2 kW)
Frame
213/5T
Rated speed
1170 rpm
Frequency
60 Hz
No load current
4.83-5.60/2.80 A
Slip
2.50 %
LRC
7.4x(Code J)
Rated torque
13.5 ft.lb
L. R. Amperes
107-98.9/49.4 A
Rated voltage
208-230/460 V
