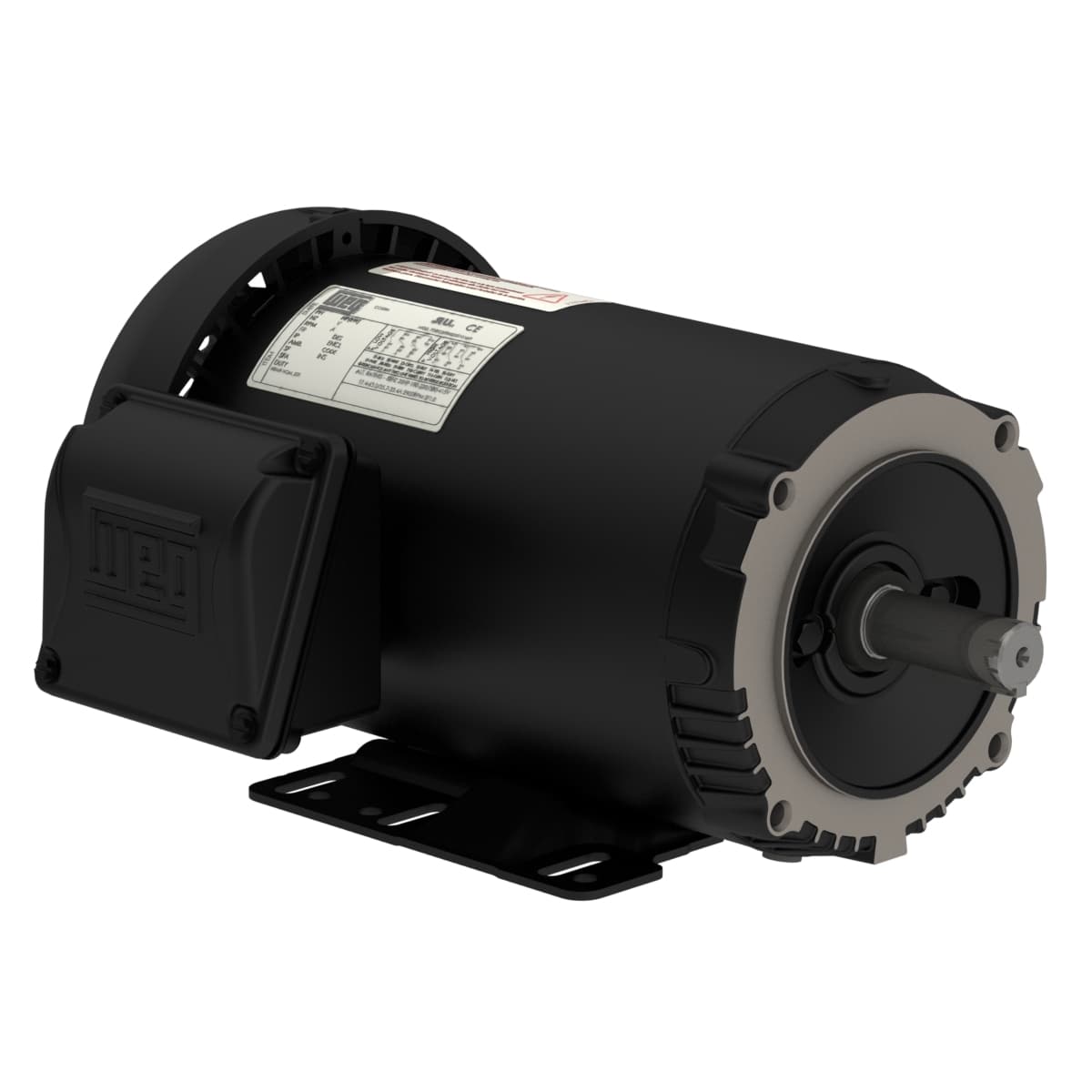

00112ET3E145TC-S WEG AC Motors
Part#:00112ET3E145TC-S
Manufacturer:WEG
Alt. Part#:7909522826903
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel NEMA Premium Efficiency 1 HP 6P 143/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00112ET3E145TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 6 Pole
- Voltage 230/460 V
- Output Rating 1 HP
- Rated Speed 1145 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Output rating 1 HP
- Standard NEMA MG-1
- Synchronous speed 1200 rpm
- Number of poles 6
- Voltage 230/460//190-220/380-415 V
- Approx. weight³ 39.4 lb
- Noise level² 50.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Mounting F-1
- Enclosure IC411 - TEFC
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Service factor 1.15 (1.00 @ 208V)
- Locked rotor time 55s (cold) 31s (hot)
- Temperature rise 80 K
- Insulation Class F
- Moment of inertia (J) 0.1597 sq.ft.lb
- Design B
- No load current 2.03/1.01 A
- Rated torque 4.59 ft.lb
- Locked rotor torque 229 %
- LRC 5.8x(Code J)
- Breakdown torque 280 %
- Rated current 3.16/1.58 A
- Rated speed 1145 rpm
- Frequency 60 Hz
- L. R. Amperes 18.3/9.16 A
- Number of Poles 6
- Rated voltage 230/460 V
- Output 1 HP (0.75 kW)
- Slip 4.58 %
- Frame 143/5TC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 00112ET3E145TC-S Specs
