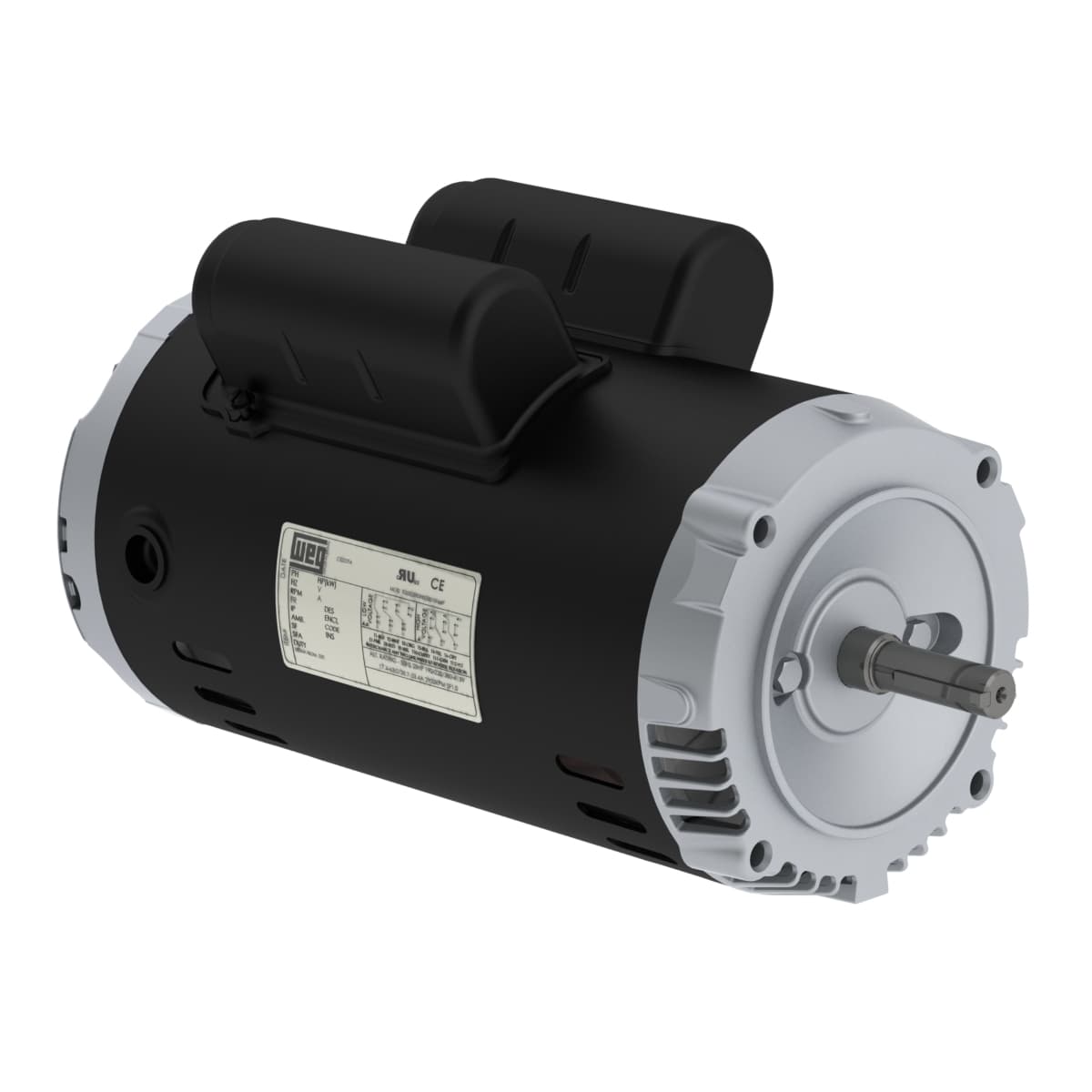

.7518OT1B56CFL-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 115/208-230 V
- Output Rating 0.75 HP
- Rated Speed 1750 rpm
- Flange Type C
- Synchronous speed 1800 rpm
- Flange C
- Output rating 0.75 HP
- Number of poles 4
- Terminal box¹ Without Terminal Box
- Voltage 115/208-230 V
- Approx. weight³ 30.9 lb
- Rotation¹ Both (CW and CCW)
- Noise level² 52.0 dB(A)
- Standard NEMA MG-1
- Enclosure IC01 - ODP
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Starting Method Direct On Line
- Breakdown torque 250 %
- Service factor 1.25 (1.00 @ 208V)
- Ambient temperature -20°C to +40°C
- Insulation Class F
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Design N
- Locked rotor torque 260 %
- Locked rotor time 36s (cold) 20s (hot)
- Moment of inertia (J) 0.0973 sq.ft.lb
- LRC 8.0x(Code K)
- Rated torque 2.25 ft.lb
- No load current 2.96/1.28-1.48 A
- Rated current 6.80/3.76-3.40 A
- Rated speed 1750 rpm
- Number of Poles 4
- Rated voltage 115/208-230 V
- L. R. Amperes 54.4/30.1-27.2 A
- Frequency 60 Hz
- Slip 2.78 %
- Output 0.75 HP (0.55 kW)
- Frame 56C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents .7518OT1B56CFL-S Specs
