RNF-100-1/16-YO TE Connectivity Electronic Components

Name: RNF-100-1/16-YO
Brand: TE Connectivity

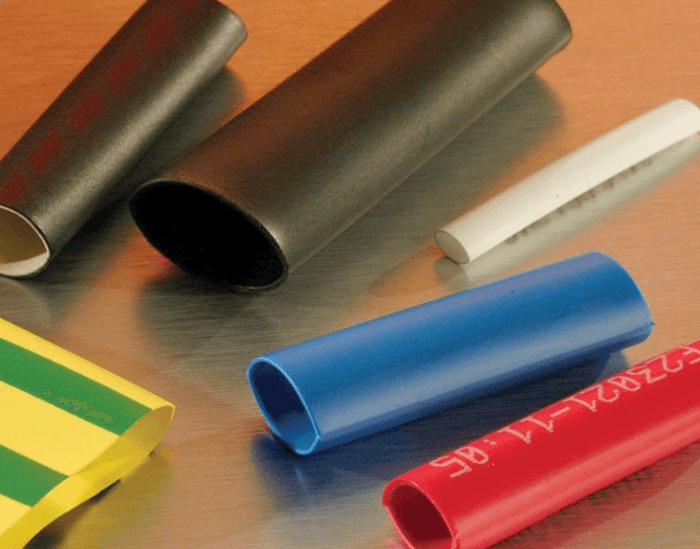

TE Connectivity RNF-100-1/16-YO TE Raychem RNF-100 - 1/16 in Polyolefin Tubing - Yellow

Part#:RNF-100-1/16-YO

Manufacturer:TE Connectivity

Product Lifecycle:Active

Get a quick Quote!

TE Raychem RNF-100 - 1/16 in Polyolefin Tubing - Yellow

About the manufacturer: TE Connectivity is one of the manufacturers that offers Electronic Components that you can order at Advantage Electric Supply site. For more than 75 years, we have been offering solutions that power electric vehicles, aircraft, digital factories, and smart homes. Our innovation also contributes to life-saving medical treatment, sustainable communities, efficient utility networks, and the global communications infrastructure.

Check out the RNF-100-1/16-YO TE Connectivity price in the box on the right side or send a quick quote.

Product Details

MANUFACTURER PART NUMBER
RNF-100-1/16-YO
TRADE OR BRAND NAME
RAYCHEM
FLEXIBILITY
Flexible
STANDARDS/APPROVALS
UL Approved CSA Approved
MIL-SPEC
SAE-AMS-DTL-23053/5
FLAMMABILITY
Flame-Retardant
OPERATING TEMPERATURE
-67°F to 275°F(-55°C to 135°C)
SHRINK TEMPERATURE
203°F (95°C)
RECOVERY TEMPERATURE
250°F (121°C)
NOMINAL RECOVERED WALL THICKNESS (IN)
0.017 ± 0.003
NOMINAL RECOVERED WALL THICKNESS (MM)
0.43 ± 0.08
RECOVERED ID MAX (MM)
0.8
RECOVERED ID MAX (IN)
0.031
SIZE
1/16
MATERIAL
Polyolefin
SERIES
RNF-100
EXPANDED ID (MM)
1.6
COLOR
Yellow
WALL TYPE
Single
EXPANDED ID (IN)
0.046

SHRINK RATIO

2:1

HEAT SHRINK

Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
