D7M-P4PN3R Sprecher + Schuh Indicator Lights

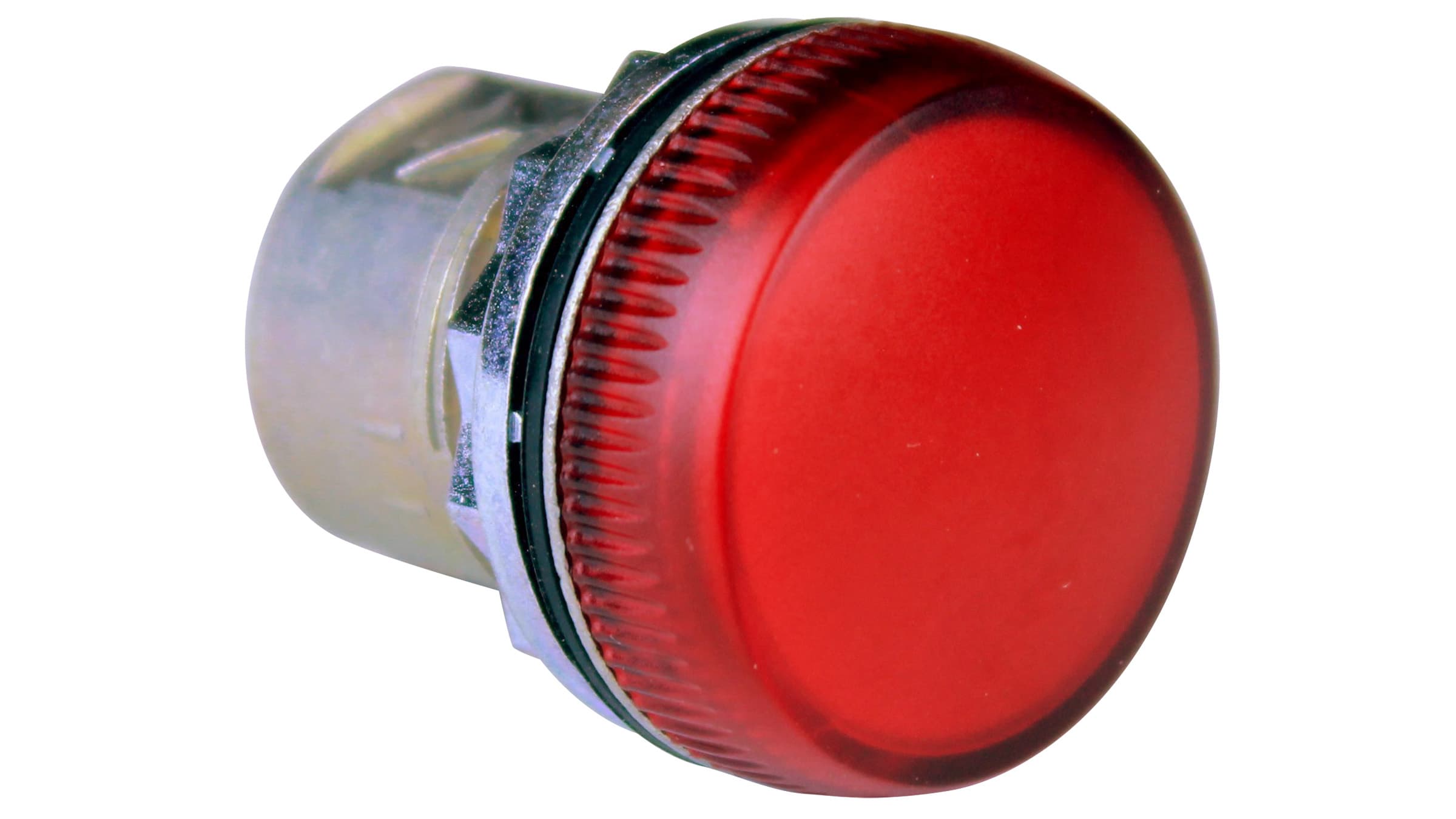

Sprecher + Schuh D7M-P4PN3R Sprecher + Schuh D7M-P4PN3R - D7 22mm Indicator Light, Metal, Diffuser Lens, Red, 24V AC/DC Red LED, Plastic Latch, Operator Only, UL Type 4/13, IP66
Sprecher + Schuh

Part#:D7M-P4PN3R

Manufacturer:Sprecher + Schuh

Alt. Part#:7M544PNB

Product Lifecycle:Active

Get a quick Quote!

Sprecher + Schuh D7M-P4PN3R - D7 22mm Indicator Light, Metal, Diffuser Lens, Red, 24V AC/DC Red LED, Plastic Latch, Operator Only, UL Type 4/13, IP66

About the manufacturer: Sprecher + Schuh is one of the manufacturers that offers Indicator Lights that you can order at Advantage Electric Supply site. Sprecher + Schuh, established in Aarau, Switzerland in 1903 by two forward-thinking engineers, Carl Sprecher and Heinrich Schuh, has been providing reliable control and protection solutions to its clients for more than a hundred years.

Check out the D7M-P4PN3R Sprecher + Schuh price in the box on the right side or send a quick quote.

Product Details

  • Weight
    68.039 g
  • Operator Type
    Diffuser Lens
  • Series
    D7M
  • Mounting
    Plastic Latch
  • Contacts
    Operator Only
  • Illumination Type
    LED
  • UL Certification
    YES
  • NEMA Rating
    Type 4/13, IP66
  • Panel hole diameter
    22.5 mm
  • Power Module
    24V AC/DC Red
  • Color
    Red
  • CE Certification
    YES
  • Approvals
    UL, CSA, CCC, CE
  • Function
    Indicator Light
  • Bezel Type
    Metal
  • CSA Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents D7M-P4PN3R Specs

D7M-P4PN3R Section_H.pdf

Manufacturer warranty

$58.63

Request a quote, and we will send availability within minutes.

Select Qty:

$58.63

$58.63 each

Average response time: 11 minutes
