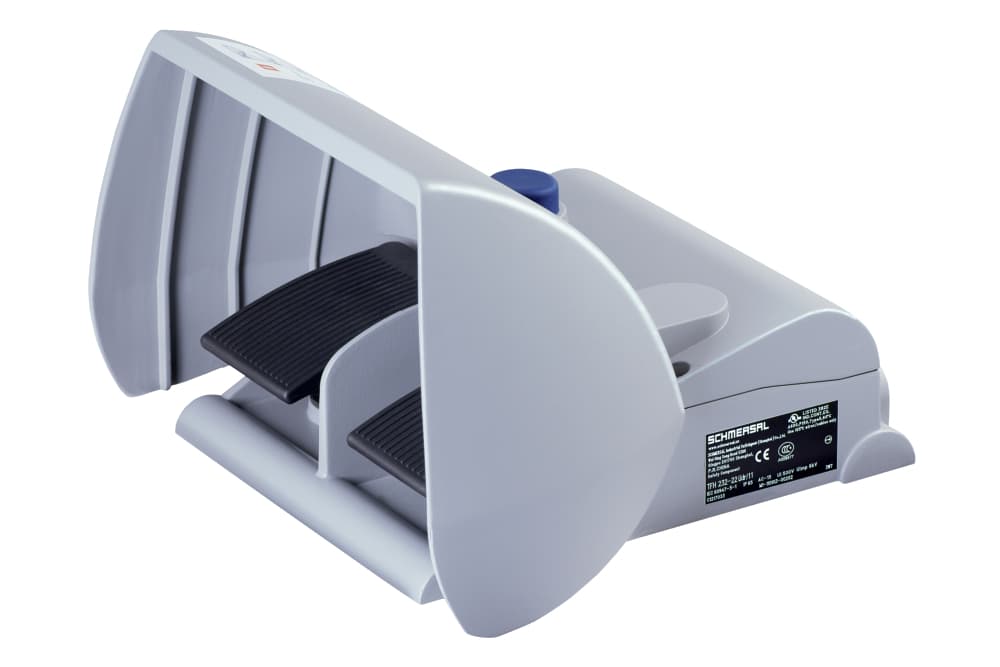

T2FH 232-11/22UEDR Schmersal Electronic Components

Product Details

• Material of the cover
  Aluminium
• Cable section, maximum
  2.5 mm²
• Ambient temperature, minimum
  -25 °C
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz (0.35 mm / 5 g)
• Switching frequency
  3,600 /h
• Enclosure coating material
  powder-coated
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Relative humidity, minimum
  30 %
• Overvoltage category
  III
• Latching
  Yes
• Mechanical life, minimum
  1,000,000 Operations
• Storage and transport temperature, minimum
  -25 °C
• Note (Relative humidity)
  non-condensing, non-icing
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Gross weight
  3,500 g
• Number of pedals, NC
  3
• Depth
  274 mm
• Relative humidity, maximum
  95 %
• Thermal test current
  10 A
• Enclosure material
  Aluminium
Probing possible
Yes
Ambient temperature, maximum
+60 °C
Rated impulse withstand voltage Uimp
6 kV
Utilisation category AC-15
4 A
Material of the pedal
Glass-fibre, reinforced thermoplastic
Height
189 mm
Number of pedals, NO
3
Restistance to shock
30 g / 11 ms
Switching element
NO contact, NC contact
Standards
EN 60947-5-1, DIN VDE 0660-200, BG-GS-ET-15
Suitable for EMERGENCY-OFF
Yes
Terminal Connector
Screw connection
Protective shield
Yes
Width
295 mm
Degree of protection
IP65 to EN 60529
Rated insulation voltage Ui
500 V
Utilisation category DC-13
1 A
Material of the protective shield
Aluminium
Degree of pollution to VDE 0100
3
Switching principle
Slow action with overlapping contacts
Storage and transport temperature, maximum
+85 °C
