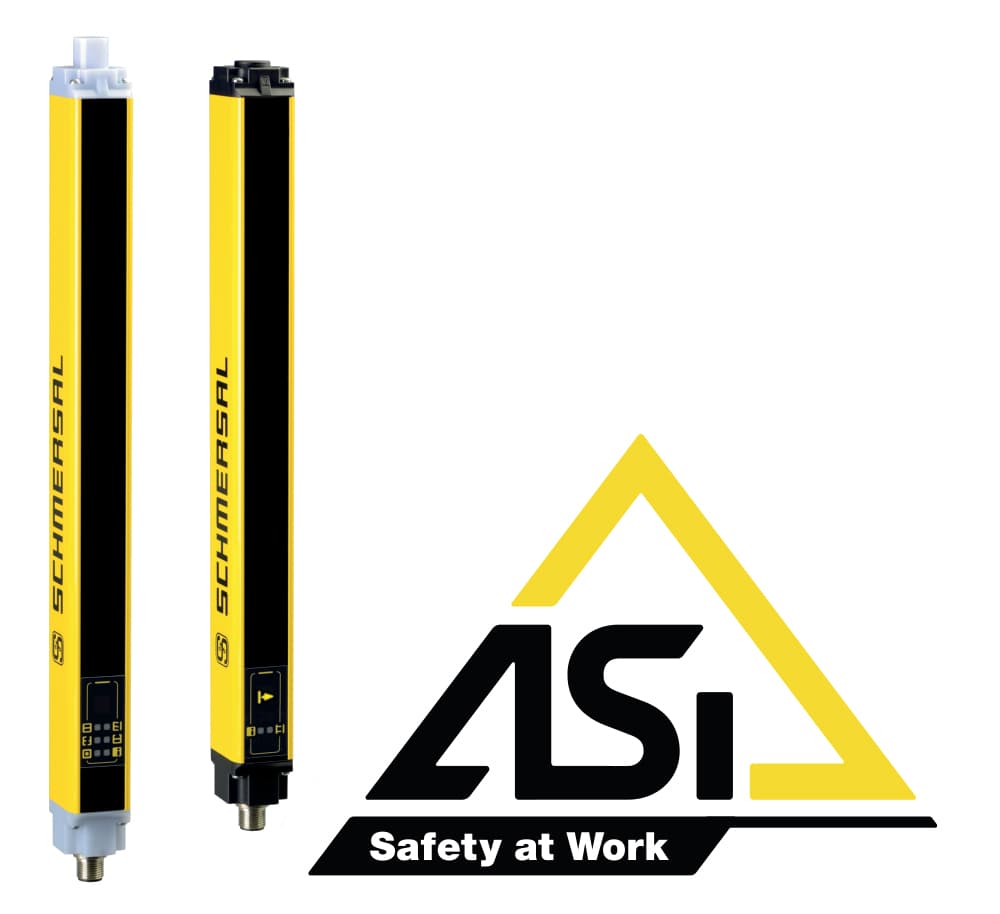

SLC440AS-ER-1370-14 Schmersal Safety Light Curtains

Product Details

• Power consumption, Transmitter
  75 mA
• Power consumption, Receiver
  150 mA
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Input module address
  0
• AS-i Parameter bits, P3
  Internal device error (FID)
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• AS-i Parameter bits, P2
  No function
• AS-i Parameter bits, P1
  Low beam quality
• AS-i Parameter bits, P0
  No function
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Outputs, DO 0 … DO 3
  No Function
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Profile
  S-0.B.F.E
• AS-i Specification
  Safety-Slave
• AS-i Version
  V 3.0
• AS-i Current consumption, maximum
  50 mA
• AS-i Operating voltage, minimum
  18 VDC
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• AS-i Operating voltage AS-i maximum
  31.6 VDC
Degree of pollution to VDE 0100
2
Rated impulse withstand voltage Uimp
0.8 kV
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 0.35 mm
Protection rating
III
Restistance to shock
10 g / 16 ms
Degree of protection
IP67 to EN 60529
Width of sensor
27.8 mm
Storage and transport temperature, maximum
+70 °C
Ambient temperature, maximum
+50 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-10 °C
Length of sensor
33 mm
Terminal connector, Recipient
Connector plug M12, 5-pole
Height of Receiver
1,503 mm
Height of transmitter
1,483 mm
Terminal Connector
Connector
Terminal, Connector, Transmitter
Connector plug M12, 4-pole
Wave length of the sensor
880 nm
Range, protection field, maximum
7,000 mm
Detection ability for test bodies at v = 1.6 m/s
14 mm
Range, protection field, minimum
300 mm
Height of the protection field
1,370 mm
Enclosure material
Aluminium
Number of beams
136
7-segment display
Yes
Integral System Diagnostics, status
Yes
Hide function
Yes
Active principle
optoelectronic
Reaction time, maximum
23 ms
Standards
EN 50295, EN 62061, EN 61496-1
Safety functions
Yes
Gross weight
2,330 g

Related documents SLC440AS-ER-1370-14 Specs
