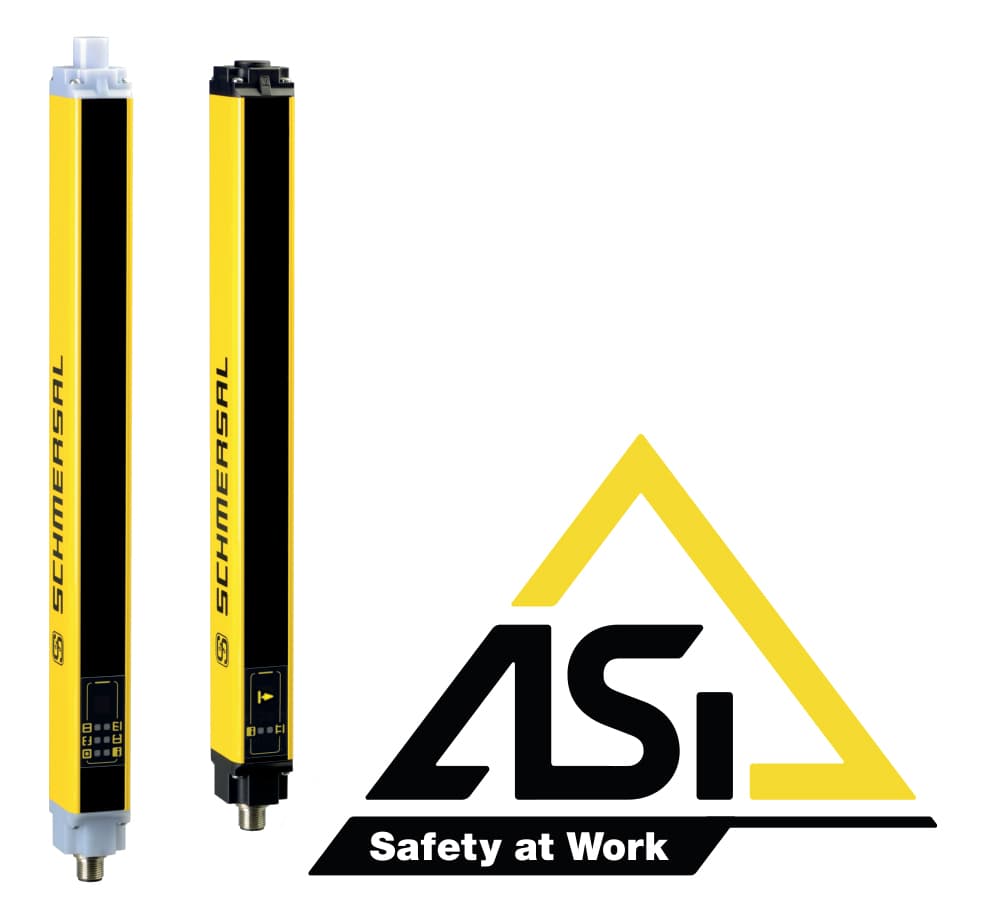

SLC440AS-ER-0810-14 Schmersal Safety Light Curtains

Name: SLC440AS-ER-0810-14
Brand: Schmersal
Price: 3720 USD
Availability: BackOrder

SLC440AS-ER-0810-14 on Advantage Electric Supply

Part#:SLC440AS-ER-0810-14

Alt. Part#:103007480

Manufacturer:Schmersal

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

SLC440AS-ER-0810-14 Schmersal - AS interface safety at work; Safety switchgear; Resolution 14 mm; Range 0,3 … 7; Safety type 4 in accordance with IEC 61496-1; Integrated AS-Interface; Protection field height 170 mm - 1770 mm; Configurable blanking functions; Integrated status indicator

Product Details

Power consumption, Transmitter
75 mA
Power consumption, Receiver
150 mA
Rated operating voltage
24 VDC -15% / +10% (stabilised PELV)
AS-i Input module address
0
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Note (AS-i Parameter bits)
Set the parameter outputs to "1111" (0xF), FID: periphery error
AS-i Parameter bits, P3
Internal device error (FID)
AS-i Parameter bits, P2
No function
AS-i Parameter bits, P1
Low beam quality
AS-i Parameter bits, P0
No function
AS-i Outputs, DO 0 … DO 3
No Function
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Profile
S-0.B.F.E
AS-i Input, Channel 1
Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Version
V 3.0
AS-i Specification
Safety-Slave
AS-i Current consumption, maximum
50 mA
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Operating voltage, minimum
18 VDC
Degree of pollution to VDE 0100
2

AS-i Operating voltage AS-i maximum

31.6 VDC

Rated impulse withstand voltage Uimp

0.8 kV

Rated insulation voltage Ui

32 VDC

Overvoltage category

III

Protection rating

III

Restistance to shock

10 g / 16 ms

Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 0.35 mm

Storage and transport temperature, minimum

-25 °C

Storage and transport temperature, maximum

+70 °C

Ambient temperature, maximum

+50 °C

Height of the Sensor (Transmitter)

923 mm

Ambient temperature, minimum

-10 °C

Degree of protection

IP67 to EN 60529

Width of sensor

27.8 mm

Length of sensor

33 mm

Terminal connector, Recipient

Connector plug M12, 5-pole

Wave length of the sensor

880 nm

Terminal, Connector, Transmitter

Connector plug M12, 4-pole

Height of Receiver

943 mm

Terminal Connector

Connector

Range, protection field, maximum

7,000 mm

Range, protection field, minimum

300 mm

Height of the protection field

810 mm

Detection ability for test bodies at v = 1.6 m/s

14 mm

Number of beams

Standards

EN 50295, EN 62061, EN 61496-1

Integral System Diagnostics, status

Yes

7-segment display

Yes

Active principle

optoelectronic

Enclosure material

Aluminium

Gross weight

1,530 g

Safety functions

Yes

Hide function

Yes

Reaction time, maximum

23 ms

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLC440AS-ER-0810-14 on Advantage Electric Supply is $3,720.00. Order now.
