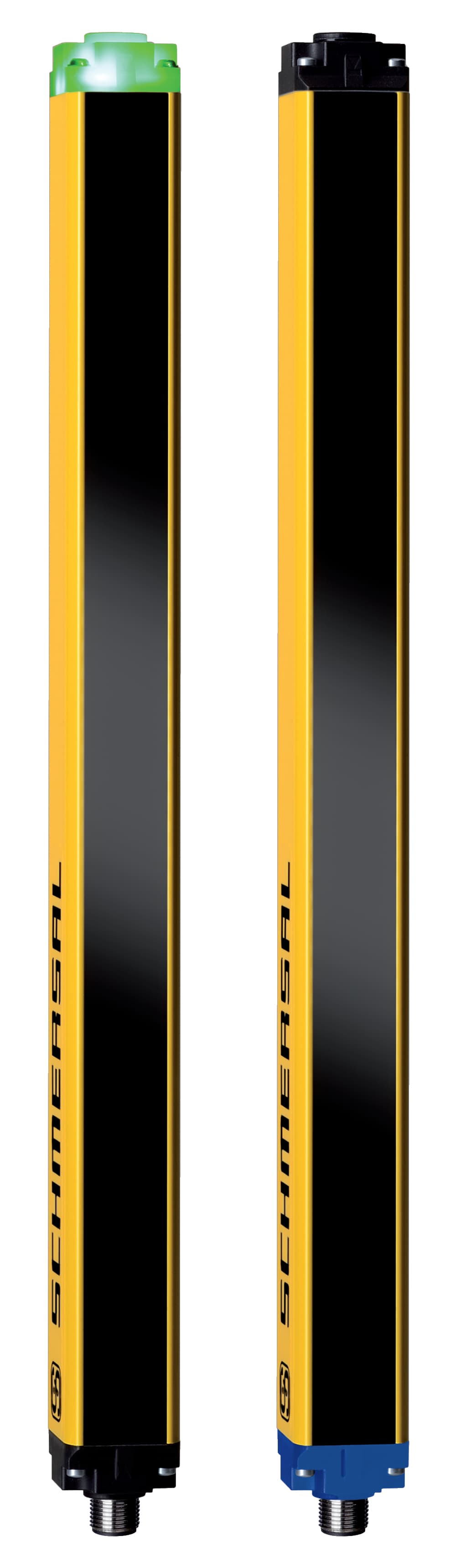

SLC240COM-ER-1050-35 Schmersal Safety Light Curtains

Product Details

• Electrical power consumption of the receiver, maximum
  10 W
• Electrical power consumption of the transmitter, maximum
  5 W
• Voltage type
  DC (direct current)
• Switching voltage OSSD, HIGH signal
  24 V
• Versions
  p-type
• Output current, (fail-safe output), maximum
  0.25 A
• Protection rating
  III
• Storage and transport temperature, maximum
  +70 °C
• Ambient temperature, maximum
  +50 °C
• Storage and transport temperature, minimum
  -25 °C
• Height of sensor
  1,091 mm
• Ambient temperature, minimum
  -10 °C
• Length of the connectable cable, maximum
  100 m
• Degree of protection
  IP67 to EN 60529
• Width of sensor
  27.8 mm
• Length of sensor
  33 mm
• Terminal, Connector, Transmitter
  Connector plug M12, 4-pole
• Terminal connector, Recipient
  Connector plug M12, 5-pole
• Terminal Connector
  Connector
• Range, protection field, minimum
  300 mm
Wave length of the sensor
880 nm
Range, protection field, maximum
7,000 mm
Detection ability for test bodies at v = 1.6 m/s
35 mm
Height of the protection field
1,050 mm
Number of fail-safe digital outputs
2
Number of beams
36
Integral System Diagnostics
Yes
Gross weight
1,740 g
Reaction time, maximum
20 ms
Hide function
Yes
Master- or Slave-function
Yes
Integral System Diagnostics, status
Yes
Cascadable
Yes
Enclosure material
Aluminium
Restart interlock (manual reset)
Yes
Standards
EN 61496-1, EN 61496-2
