SHGV/ESS21S2/213/103 Schmersal Electronic Components
Part#:SHGV/ESS21S2/213/103
Manufacturer:Schmersal
Category:Electronic Components
Alt. Part#:101205741
Product Lifecycle:Active
Get a quick Quote!

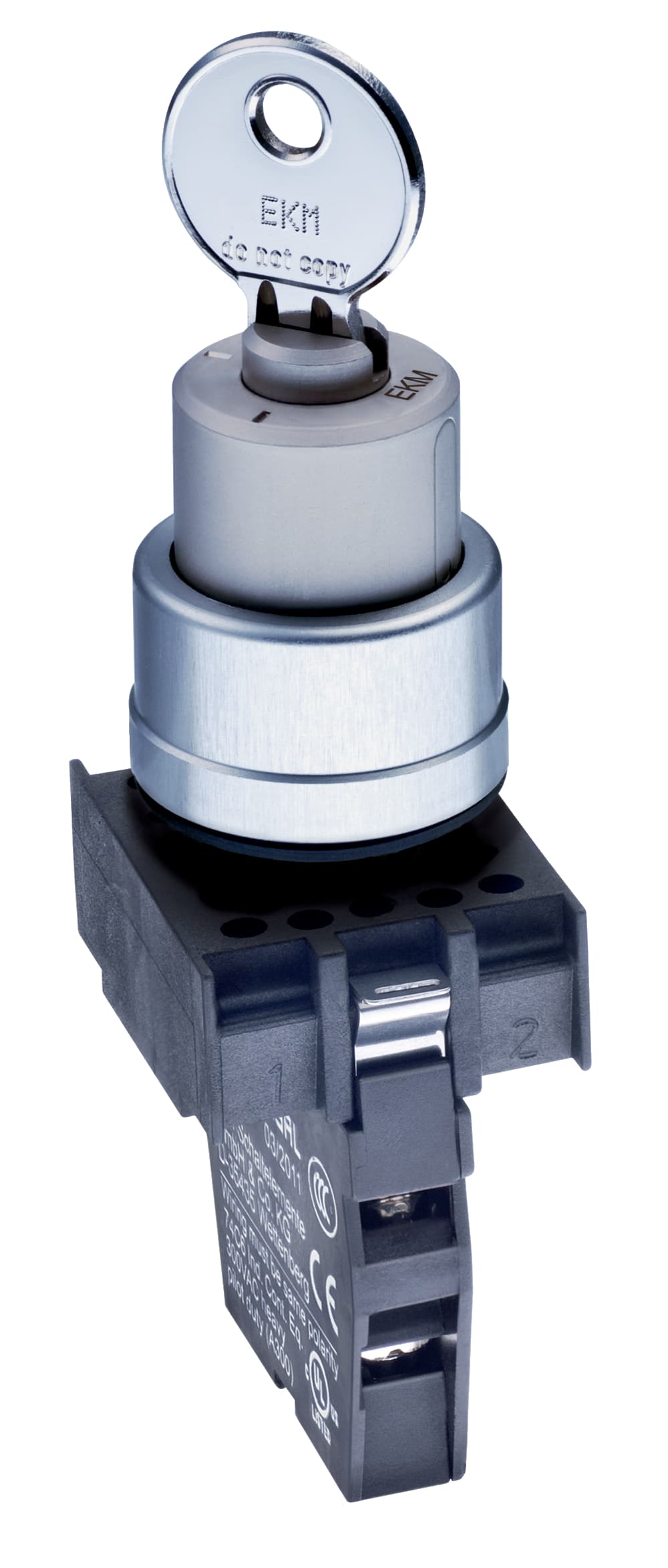

Key transfer system; Use in applications without dangerous run-on movements resp. run-on movements less than the key transfer time; HS locking system-compatible versions possible; Key switch including mounting flange and contact element
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at Advantage Electric Supply site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SHGV/ESS21S2/213/103 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Switching frequency 5 /h
- Switching element NC contact, NO contact
- Bounce duration, maximum 5 ms
- Suitable for low-voltages ≥ 5 V / ≥ 3.2 mA
- Utilisation category AC-15 8 A
- Thermal test current 10 A
- Rated insulation voltage Ui 400 V
- Resistant to vibration Resistance to vibration: 20 g / 10…200 Hz
- Restistance to shock 110 g / 4 ms
- Ambient temperature, minimum -25 °C
- Degree of protection of clips or terminals IP20
- Thickness of the front panel, maximum 6 mm
- Spacing 40 x 50 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Diameter hole 22.3 mm
- Diameter of the front ring 29.5 mm
- Tightening torque of Clips 1 Nm
- Length x Width x Height Height with key (and contact element): 60 mm (119 mm)
- Cable section, maximum 2.5 mm², rigid, 2.5 mm², flexible
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Terminal Connector Screw connection
- Cable section, minimum 0.5 mm², rigid, 0.5 mm², flexible
- Mounting mounting flange
- Mechanical life, minimum 100,000 Operations
- Key withdrawal position Position I, 90°
- Unlocking Rotating unlatcher
- Latching Yes
- Number of plunger 1
- Number of switch positions 2
- Colour of key head Silver
- Number of auxiliary contacts 1
- Colour of the front ring Silver
- Colour of the Contact element Black
- Standards IEC 60947-5-1, EN ISO 14119, IEC/EN 60947-1
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Material of the front ring Aluminium
- Material of the contacts, electrical Silver
- Sealing type Membrane, Lip gaskets, Form seals
- Material of the cylinder lock Steel
- Installation conditions (mechanical) arbitrarily
- Colour of the cylinder lock Silver
- Switching principle Slow action
- Utilisation category DC-13 5 A
- Ambient temperature, maximum +75 °C
- Degree of protection of the switch rooms IP40
- Degree of protection IP65
- Thickness, of the front panel, minimum 1 mm
- diameters for the cylinder lock 22 mm
- Key number CODE_KEY_NUMBER213
- Latching position right
- Tightening torque of the screw 0.6 Nm
- Gross weight 136 g
- Fully insulated Yes
- Versions Key - Selector switch - Front plate mounting
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
