PS315-Z12-N300 Schmersal Safety Switches
Part#:PS315-Z12-N300
Alt. Part#:103015109
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

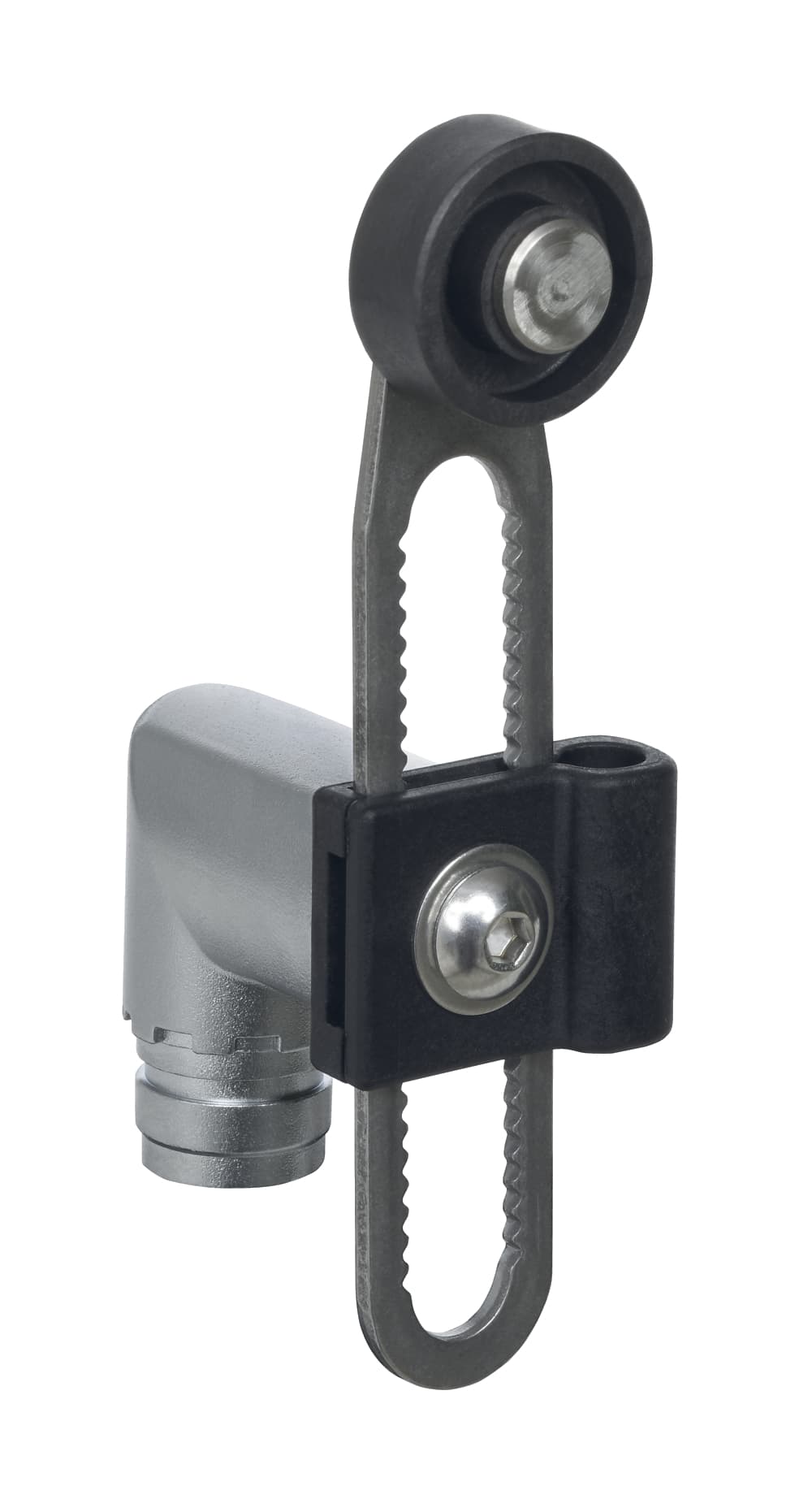

PS315-Z12-N300 Schmersal - Position switch; PS315; Metal enclosure; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50041; Lever angle adjustable in 15° steps; lengt
Product Details
- Material of the contacts, electrical Silver
- Actuating element Roller lever N300
- Length of sensor 37 mm
- Rated impulse withstand voltage Uimp 4 kV
- Switching principle Snap switch element
- Housing construction form Norm construction design
- Actuating speed, maximum 1 m/s
- Ambient temperature, minimum -30 °C
- Positive break force, minimum 50 N
- Enclosure material Metal, zinc die-cast
- Ambient temperature, maximum +80 °C
- Thermal test current 5 A
- Terminal Connector Screw connection
- Safety functions Yes
- Height of sensor 168 mm
- Utilisation category DC-13 24 VDC
- Mechanical life, minimum 10,000,000 Operations
- Gross weight 392 g
- Width of sensor 41 mm
- Switching frequency 5,000 /h
- Switching element 1 NO contact, 2 NC contacts
- Standards IEC 60947-5-1
- Number of safety contacts 2
- Cable section, minimum 0.34 mm²
- Rated insulation voltage Ui 300 V
- Actuating speed, minimum 10 mm/min
- Roller material Plastic
- Degree of protection IP66, IP67
- Required rated short-circuit current to EN 60947-5-1 400 A
- Enclosure coating material painted
- Cable section, maximum 1.5 mm²
- Number of auxiliary contacts 1
- Utilisation category AC-15 240 VAC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS315-Z12-N300 on Advantage Electric Supply is $155.00. Order now.
