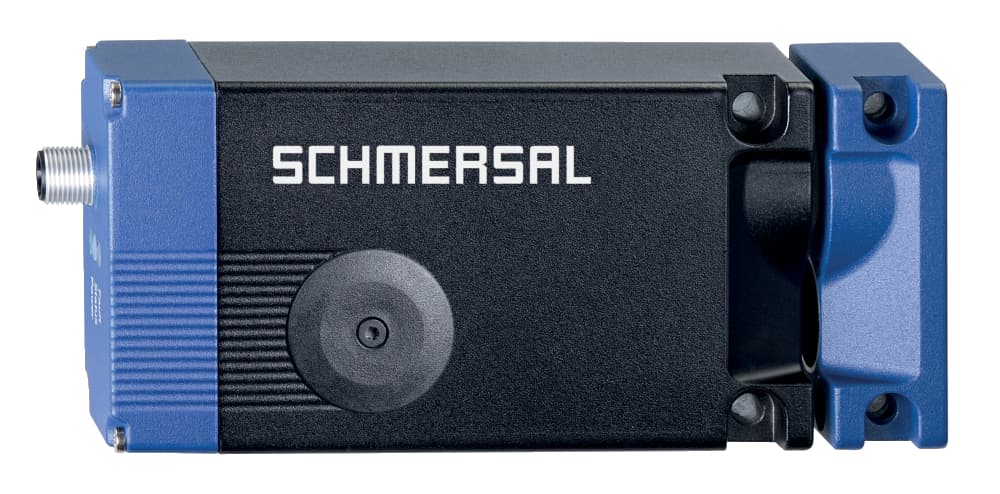

AZM400Z-ST-I2-1P2P-BOW Schmersal Safety Accessories

Product Details

• Current, Utilisation category DC13
  0.05 A
• Versions
  short-circuit proof, p-type
• Current leakage Ir
  1.5 mA
• Current, Utilisation category DC12
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Voltage, Utilisation category DC12
  24 VDC
• Voltage drop Ud, maximum
  2 V
• Rated operating current (safety outputs)
  250 mA
• Classification ZVEI CB24I, Source
  C2
• Allowable discrepancy time (input), maximum
  10 s
• Minimal average cycle time (with continuous operation)
  20 s
• Classification ZVEI CB24I, Sink
  C1, C2
• Operating current
  50 mA
• Rated operating voltage
  24 VDC
• Open / close cycle (Motor), minimum
  3
• Switching thresholds of the control inputs
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Switching frequency, approx.
  0.3 Hz
• Required rated short-circuit current to EN 60947-5-1
  100 A
• No-load supply current I0
  100 mA
• Current consumption at 24V, maximum
  15 mA
Current consumption at 24V, minimum
10 mA
Current consumption, maximum
600 mA
Operating Current
100 mA
Degree of pollution to VDE 0100
3
Protection rating
III
Rated impulse withstand voltage Uimp
0.8 kV
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Storage and transport temperature, minimum
-40 °C
Storage and transport temperature, maximum
+85 °C
Height of sensor
166.7 mm
Ambient temperature, maximum
+55 °C
Ambient temperature, minimum
-20 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Width of sensor
77.8 mm
Length of sensor
46.7 mm
Terminal Connector
Connector M12, 8-pole
Tightening torque of the fixing screws Bowden cable
1.2 Nm
Tightening torque of the screw
8 Nm
Note (Lateral force at bolt return)
Does not apply to emergency exit, Bowden cable and manual release
Lateral force at bolt return, maximal (against locked door)
300 N
Clamping force, maximum Fmax
13,000 N
Clamping force in accordance with ISO14119 Fzh
10,000 N
Note (Mechanical lifetime)
Which have a lateral force Ftrans = 100 N: 100.000 operations
Minimum distance devices
30 mm
Mechanical life, minimum
1,000,000 Operations
Guard locking monitored
Yes
Interlocking principle
bistable
Active principle
Magnetic field, RFID
Coding level according to ISO 14119
High
Time to readiness, maximum
1,500 ms
general information
Individual coding, multiple teaching
Number of diagnostic signals
1
Number of safety contacts
2
Integral System Diagnostics, status
Yes
Gross weight
856.9 g
Securing holes for Bowden cable assembly
Yes
Safety functions
Yes
Enclosure material
Light alloy die-casting
Short-circuit recognition
Yes
Short circuit detection
Yes
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508
Reaction time, maximum
100 ms

Related documents AZM400Z-ST-I2-1P2P-BOW Specs
