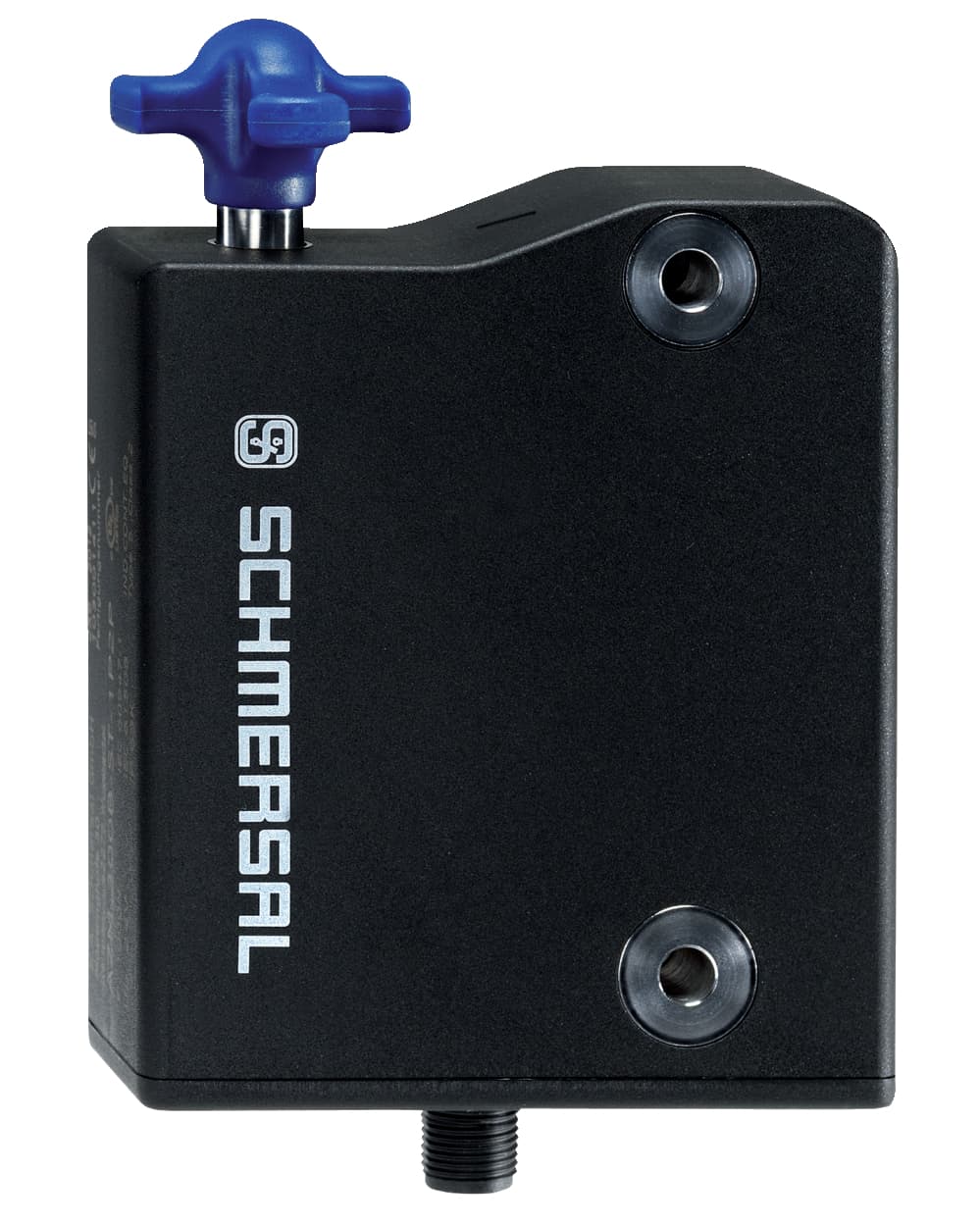

AZM300Z-I2-ST-SD2P Schmersal Safety Switches

Product Details

• Operation current
  150 mA
• Wiring capacity
  50 nF
• Voltage, Utilisation category DC13
  24 VDC
• Test pulse interval, typical
  1000 ms
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Current, Utilisation category DC12
  0.05 A
• Current leakage Ir
  0.5 mA
• Voltage drop Ud, maximum
  4 V
• Versions
  short-circuit proof, p-type
• Current consumption at 24V
  5 mA
• Classification ZVEI CB24I, Source
  C2
• Test pulse duration, maximum
  0.5 ms
• Classification ZVEI CB24I, Sink
  C1, C2
• Test pulse interval, minimum
  100 ms
• Duty cycle solenoid
  100 %
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• External wiring and device fuse rating
  2 A gG
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Current consumption with solenoid ON, peak
  350 mA / 200 ms
Current consumption with solenoid ON, average
200 mA
Notes (Power supply, general)
stabilised PELV power supply
Rated impulse withstand voltage Uimp
0.8 kV
Operating voltage, maximum
26.4 VDC
Operating voltage, minimum
20.4 VDC
Overvoltage category
III
Degree of pollution to IEC/EN 60664-1
3
Rated insulation voltage Ui
32 VDC
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Note (Relative humidity)
non-condensing, non-icing
Storage and transport temperature, minimum
-10 °C
Storage and transport temperature, maximum
+90 °C
Ambient temperature, maximum
+60 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Height of sensor
35 mm
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Width of sensor
87.5 mm
Length of sensor
120 mm
Length of sensor chain, maximum
200 m
Terminal Connector
Connector M12, 8-pole, A-coded
Switch distance
2 mm
Ensured switch distance ON Sao
1 mm
Tightening torque for the fixing screws, maximum
7 Nm
Type of the fixing screws
2x M6
Tightening torque of the fixing screws, minimum
6 Nm
Latching force, adjustable, position 1
25 N
Clamping force in accordance with ISO14119 Fzh
1,150 N
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Mechanical life, minimum
1,000,000 Operations
Number of fail-safe digital outputs
2
Integral System Diagnostics, status
Yes
Short-circuit recognition
Yes
Series-wiring
Yes
Latching
Yes
Manual release
Yes
Serial diagnostics
Yes
Power to unlock
Yes
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Duration of risk, maximum
200 ms
Active principle
RFID
Transmit power, maximum
-6 dB/m
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Coding level according to ISO 14119
High
Frequency band RFID
125 kHz
general information
Individual coding, multiple teaching
Switching frequency, maximum
0.5 Hz
No-load supply current I0
100 mA
Protection rating
III
Relative humidity, maximum
93 %
Ambient temperature, minimum
+0 °C
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Ensured switch distance OFF Sar
20 mm
Latching force, adjustable, position 2
50 N
Clamping force, maximum Fmax
1,500 N
Angular offset between interlocking device and actuator, maximum
2 °
Safety functions
Yes
Short circuit detection
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Guard locking monitored
Yes
Time to readiness, maximum
5,000 ms
Gross weight
585 g
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
