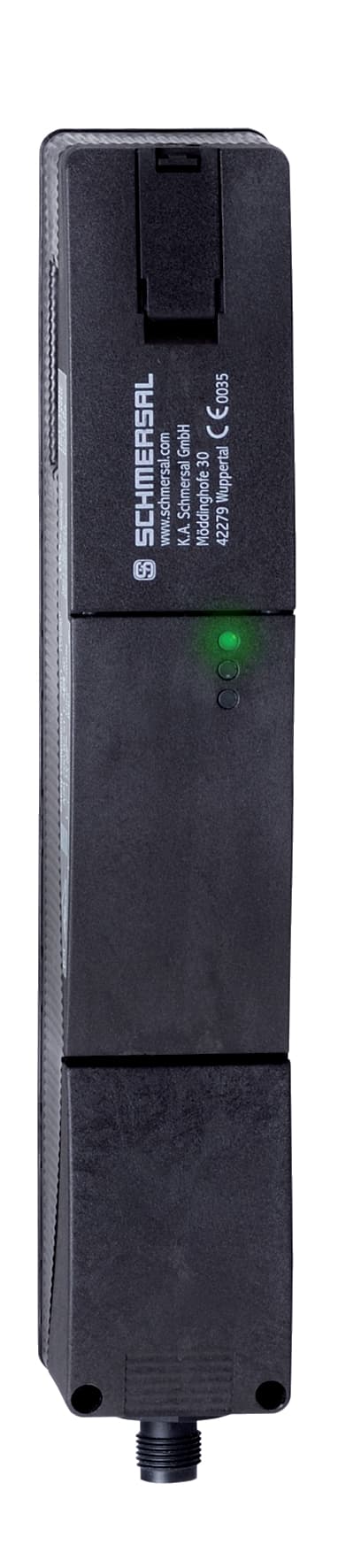

AZM201Z-I1-ST-T-AS-A-P Schmersal Safety Switch Interlocks

Product Details

• Operating current
  500 mA
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• AS-i Input module address
  0
• AS-i Parameter bits, P1
  Solenoid interlock locked
• Note (AS-i Parameter bits)
  FID: periphery error
• AS-i Outputs, DO 3
  No Function
• AS-i Outputs, DO 2
  No Function
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Outputs, DO 0
  Solenoid control
• AS-i, ID-Code2
  0xE
• AS-i Outputs, DO 1
  No Function
• AS-i, ID-Code1
  0xF
• AS-i Profile
  S-7.B.F.E
• AS-i, ID-Code
  0xB
• AS-i, IO-Code
  0x7
Overvoltage category
III
Degree of pollution to IEC/EN 60664-1
3
AS-i Current consumption, maximum
100 mA
AS-i Specification
Safety-Slave
AS-i Operating voltage, minimum
26.5 VDC
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Operating voltage AS-i maximum
31.6 VDC
Relative humidity, maximum
95 %
AS-i Version
V 3.0
Rated insulation voltage Ui
32 VDC
Protection rating
III
Rated impulse withstand voltage Uimp
0.8 kV
Switching frequency, maximum
1 Hz
Restistance to shock
30 g / 11 ms
Relative humidity, minimum
10 %
Storage and transport temperature, minimum
-25 °C
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Storage and transport temperature, maximum
+85 °C
Note (Relative humidity)
non-condensing, non-icing
Ambient temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Tightening torque for the fixing screws, maximum
8 Nm
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Height of sensor
220 mm
Length of sensor
50 mm
Latching force
30 N
Actuating speed, maximum
0.2 m/s
Width of sensor
40 mm
Mechanical life, minimum
1,000,000 Operations
Integral System Diagnostics, status
Yes
Safety functions
Yes
Clamping force, maximum Fmax
2,600 N
Number of actuating directions
2
Clamping force in accordance with ISO14119 Fzh
2,000 N
Power to lock
Yes
Manual release
Yes
Latching
Yes
Gross weight
540.9 g
Time to readiness, maximum
4,000 ms
Guard locking monitored
Yes
Reaction time, maximum
100 ms
Duration of risk, maximum
200 ms
Active principle
RFID
general information
Individual coding
Enclosure material
Glass-fibre, reinforced thermoplastic
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Coding level according to ISO 14119
High
