AZM 161 B ST1-AS RA Schmersal Safety Switch Interlocks
Part#:AZM 161 B ST1-AS RA
Manufacturer:Schmersal
Alt. Part#:101209097
Product Lifecycle:Active
Get a quick Quote!

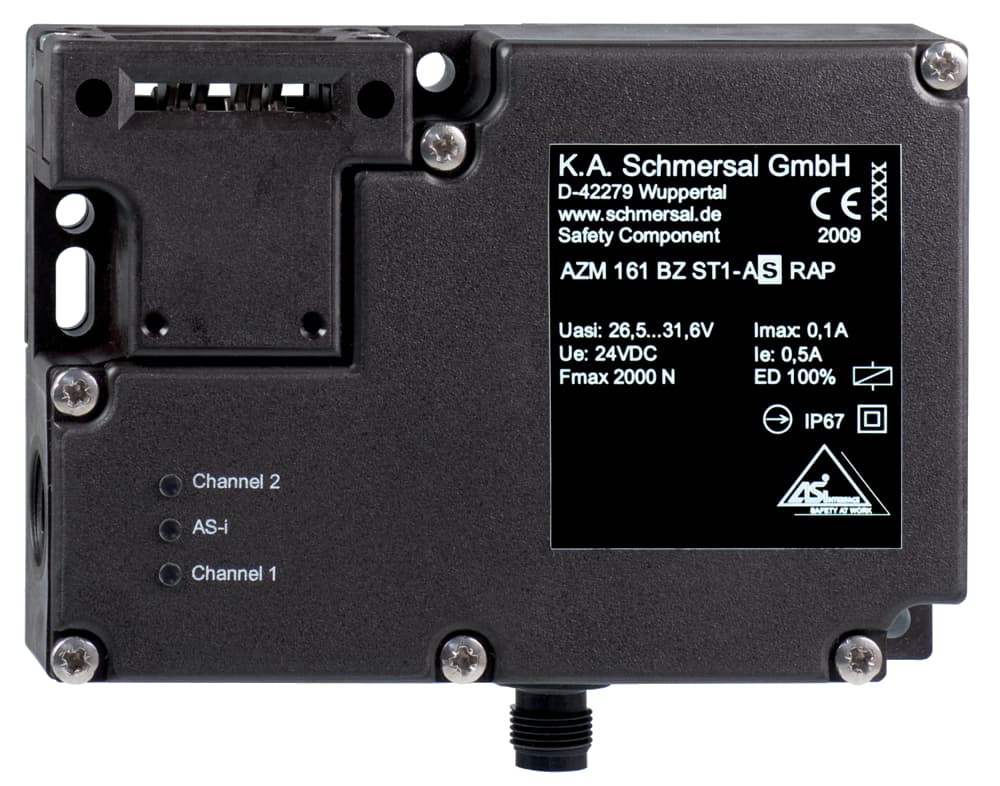

AS interface safety at work; Safety switchgear; Solenoid supply AUS AS interface; Actuator monitored; Manual release; Solenoid interlock; Thermoplastic enclosure; High holding force 2000; 130 mm x 90 mm x 30 mm; Interlock with protection against incorrect
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switch Interlocks that you can order at Advantage Electric Supply site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 161 B ST1-AS RA Schmersal price in the box on the right side or send a quick quote.
Product Details
- AS-i Parameter bits, P2 Magnet voltage in tolerance range
- AS-i Parameter bits, P3 Error message - locking/unlocking of the solenoid interlock blocked
- Note (AS-i Input module address) Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
- Note (AS-i Parameter bits) Set the parameter outputs to "1111" (0xF)
- AS-i Parameter bits, P1 Solenoid interlock locked
- AS-i Parameter bits, P0 Actuator detected
- AS-i Input module address 0
- AS-i Outputs, DO 3 No Function
- AS-i Outputs, DO 0 Solenoid control
- AS-i Outputs, DO 1 No Function
- AS-i Outputs, DO 2 No Function
- AS-i Input, Channel 2 Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Input, Channel 1 Data bits DI 0 / DI 1 = dynamic code transmission
- AS-i, ID-Code2 0xE
- AS-i, ID-Code 0xB
- AS-i, ID-Code1 0xF
- AS-i Specification Safety-Slave
- AS-i, IO-Code 0x7
- AS-i Version V 2.1
- AS-i Profile S-7.B.F.E
- AS-i Operating voltage, minimum 26.5 VDC
- AS-i Current consumption, maximum 250 mA
- Switching frequency 1,000 /h
- AS-i Operating voltage AS-i maximum 31.6 VDC
- Note (AS-i Operating voltage) Protection against polarity reversal
- Degree of pollution to VDE 0100 3
- Overvoltage category III
- Note (Relative humidity) non-condensing, non-icing
- Restistance to shock 30 g / 11 ms
- Protection rating II
- Rated impulse withstand voltage Uimp 0.8 kV
- Rated insulation voltage Ui 32 VDC
- Relative humidity, minimum 30 %
- Resistance to vibrations to EN 60068-2-6 10 Hz ... 150 Hz, amplitude 0.35 mm
- Relative humidity, maximum 95 %
- Storage and transport temperature, maximum +85 °C
- Storage and transport temperature, minimum -25 °C
- Ambient temperature, maximum +60 °C
- Height of sensor 90 mm
- Length of sensor 30 mm
- Width of sensor 130 mm
- Degree of protection IP67 to EN 60529
- Terminal Connector Connector plug M12, 4-pole, (A-coding)
- Ambient temperature, minimum -25 °C
- Actuating speed, maximum 2 m/s
- Connector position Bottom
- Latching force 30 N
- Number of actuating directions 3
- Actuating play in direction of actuation 5.5 mm
- Mechanical life, minimum 1,000,000 Operations
- Clamping force 2,000 N
- Integral System Diagnostics, status Yes
- Active principle electromechanical
- Manual release Yes
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight 490 g
- Power to lock Yes
- Actuator monitored Yes
- Reaction time, maximum 100 ms
- Standards IEC 61508, EN 60947-5-1, EN 62026-2
