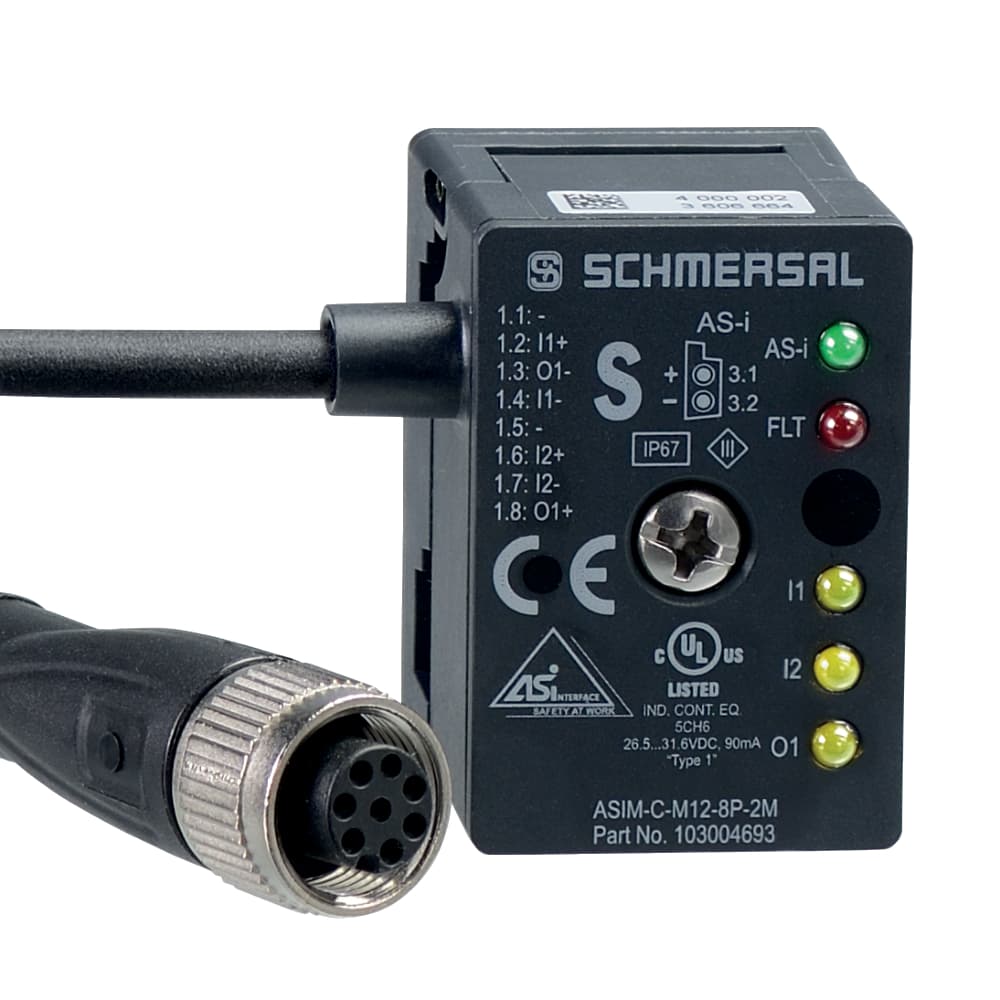

ASIM-C-M12-4P-2M Schmersal Cable Assemblies

Product Details

• AS-i Parameter bits, P0
  Communication monitoring AS-i
• AS-i Input module address
  0
• AS-i Parameter bits, P1 ... P3
  No function
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF)
• AS-i Outputs, DO 0
  No Function
• AS-i Outputs, DO 1 … DO 3
  No Function
• AS-i Profile
  S-0.B.F.0
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Current consumption, maximum
  90 mA
• AS-i Version
  V 3.0
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• AS-i Operating voltage AS-i maximum
  31.6 VDC
• AS-i Operating voltage, minimum
  26.5 VDC
• Degree of pollution to VDE 0100
  3
• Overvoltage category
  III
• Rated impulse withstand voltage Uimp
  0.8 kV
• Rated insulation voltage Ui
  32 VDC
• Protection rating
  III
Relative humidity, maximum
95 %
Resistance to vibrations to EN 60068-2-6
10 … 57 Hz, amplitude 0.75 mm
Restistance to shock
30 g / 11 ms
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, minimum
30 %
Degree of protection
IP67 to EN 60529
Storage and transport temperature, minimum
-25 °C
Storage and transport temperature, maximum
+80 °C
Ambient temperature, minimum
-20 °C
Ambient temperature, maximum
+60 °C
Depth
22 mm
Width
27.7 mm
Height
40.5 mm
Material of the cable
Polyurethane PUR
Standards
EN 50295, EN 60204-1, EN 62061
Enclosure material
Thermoplastic PBT
Terminal Connector
Connector, M12, 4-pole, A-coded
Duration of risk, maximum
5 ms
Integral System Diagnostics, status
Yes
Reaction time, maximum
1 ms
Gross weight
137 g
Safety functions
Yes
Length of cable
2 m
