8712415 SAB Servo Motor Cables

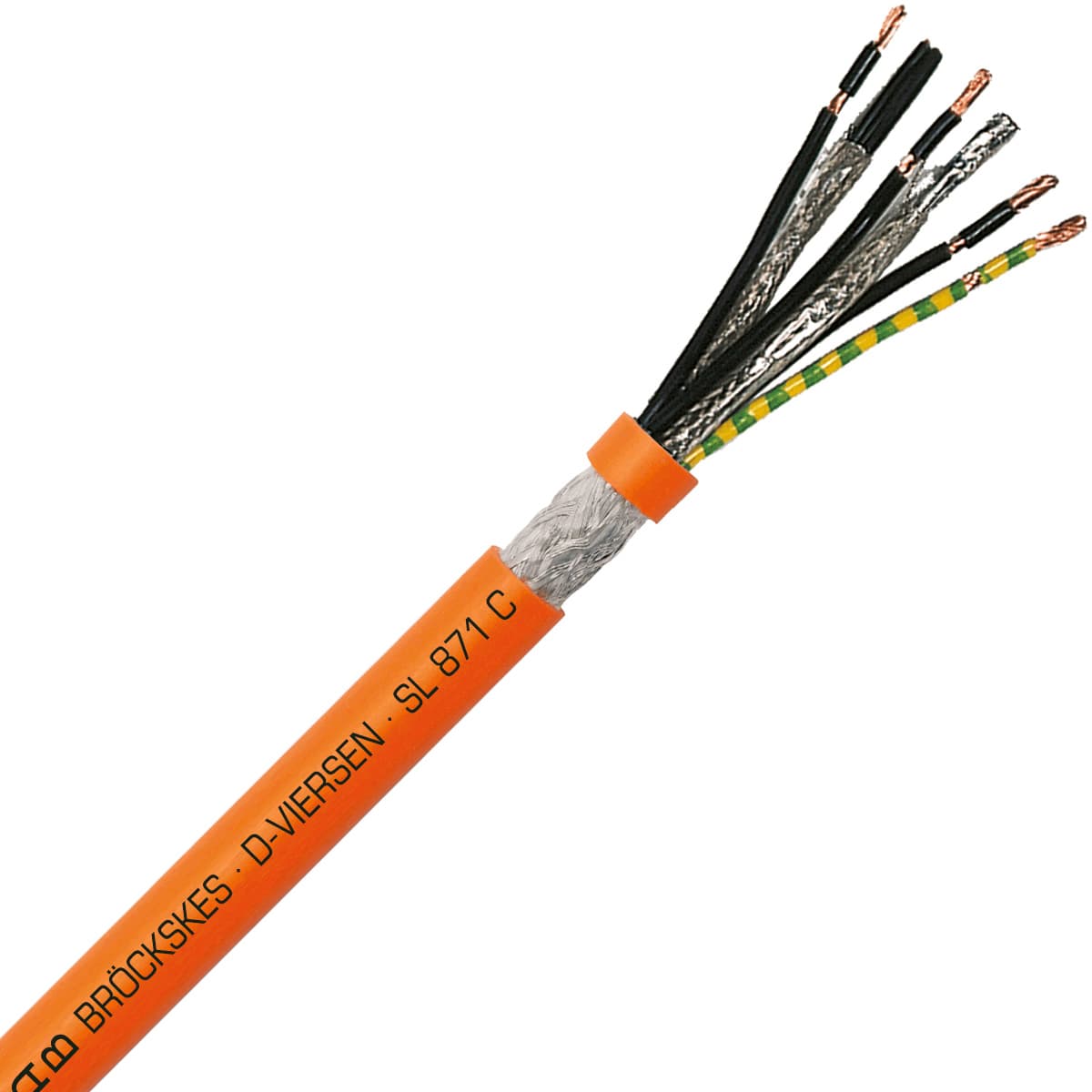

SAB 8712415 SL 871 C - 16 AWG/4c + 20 AWG/1pr, shielded continuous flex servo motor halogen-free cable, UL, CSA, CE, RoHS
SAB

Part#:8712415

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

SL 871 C - 16 AWG/4c + 20 AWG/1pr, shielded continuous flex servo motor halogen-free cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Servo Motor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 8712415 SAB price in the box on the right side or send a quick quote.

Product Details

  • Halogen Free
    YES
  • Direct Burial
    NO
  • Outside diameter (OD)
    0.504 in
  • CE Certification
    YES
  • Oil Resistant
    Yes
  • Submersible
    NO
  • Insulation type
    Special Polymer
  • Temperature range
    -50°C to +90°C
  • Stranding type
    bare copper, fine strands
  • Voltage
    1000
  • Weight
    66.68 g
  • Movement Type
    Stationary/Flexible
  • Number of conductors
    6
  • Shielded
    Yes
  • UOM
    ft
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • CSA Certification
    YES
  • Gauge
    16 AWG
  • Cable configuration
    16 AWG/4c + 20 AWG/1pr
  • Color
    Orange
  • UL Certification
    YES
  • UV Resistant
    YES
  • Pair count
    1
  • RoHS
    YES
  • Chemical Resistant
    YES
  • Application
    Power, Motor & Drives

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8712415 Description

SAB 8712415 Servo Motor Cable is part of SL 871 C product family, and is designed for Power, Motor & Drives applications. This cable is 16 AWG with 6 conductors, and shielded 16 AWG/4c + 20 AWG/1pr cable configuration. Featuring Orange color jacket, Special Polymer insulation, and bare copper, fine strands stranding. It has 0.504 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -50°C to +90°C temperature range, it is chemical resistant, oil resistant, UV resistand, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.

Related documents 8712415 Specs

8712415 SL_871_C.pdf
