8501807 SAB Tray Cables

SAB 8501807 TR 850 S - 18 AWG/7c, UV and oil resistant 90°C flexible tray and flexible cord cable, UL, CSA, CE, RoHS
SAB

Part#:8501807

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

TR 850 S - 18 AWG/7c, UV and oil resistant 90°C flexible tray and flexible cord cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 8501807 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Black
  • Weight
    71.21 g
  • Chemical Resistant
    NO
  • Oil Resistant
    Yes
  • UV Resistant
    YES
  • Halogen Free
    NO
  • Submersible
    NO
  • Direct Burial
    YES
  • Movement Type
    Stationary/Flexible
  • Application
    Control, Power
  • Gauge
    18 AWG
  • Number of conductors
    7
  • Cable configuration
    18 AWG/7c
  • Stranding type
    bare copper strands, class K
  • Insulation type
    PVC
  • Shielded
    No
  • Voltage
    600
  • Approvals
    UL TC-ER, UL WTTC, UR AWM, c(UL) CIC-TC, CSA AWM, CE, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +105°C
  • Outside diameter (OD)
    0.495 in
  • UOM
    ft
  • CSA Certification
    YES
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8501807 Description

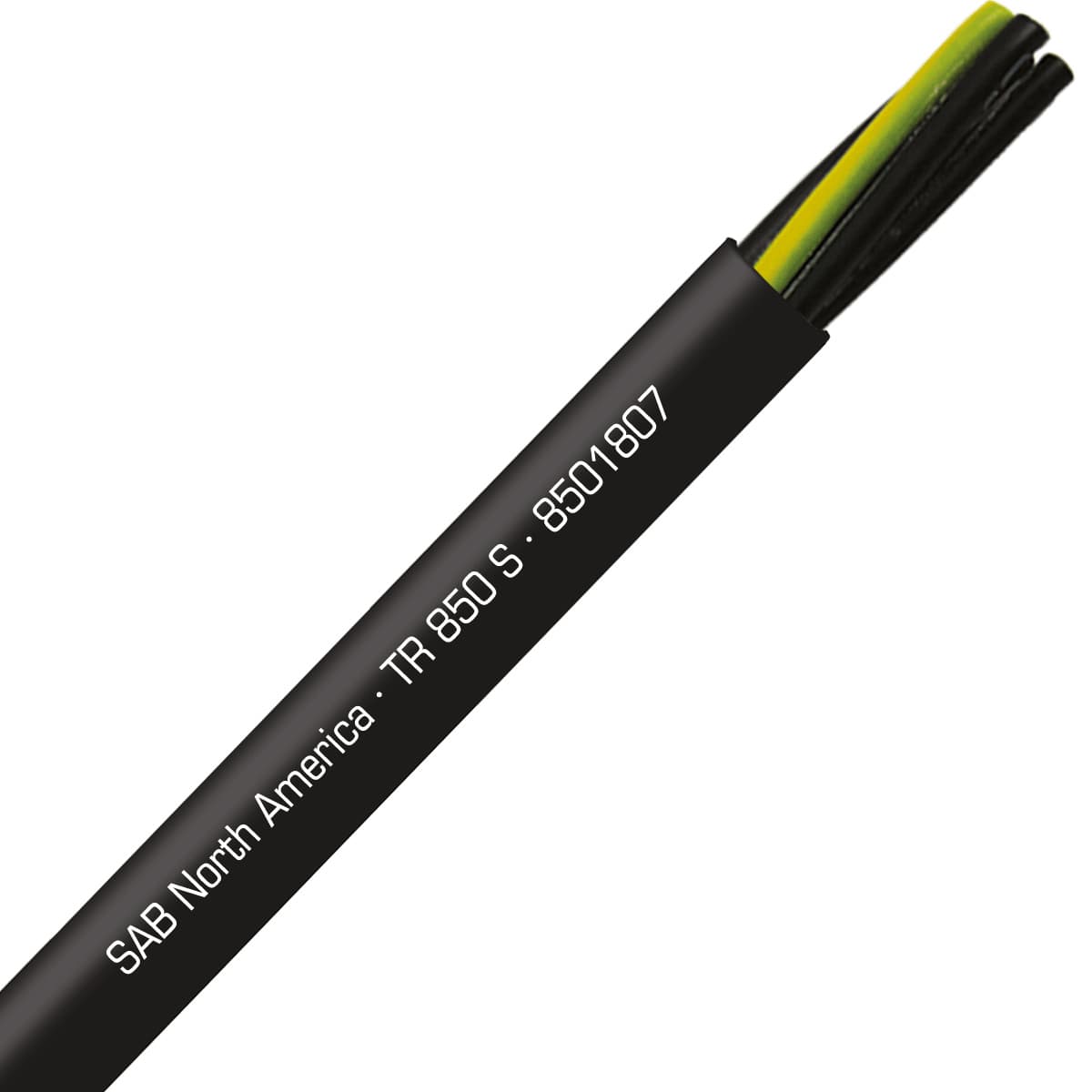

SAB 8501807 Tray Cable is part of TR 850 S product family, and is designed for Control, Power applications. This cable is 18 AWG with 7 conductors, and 18 AWG/7c cable configuration. Featuring Black color jacket, PVC insulation, and bare copper strands, class K stranding. It has 0.495 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL WTTC, UR AWM, c(UL) CIC-TC, CSA AWM, CE, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 8501807 Specs

8501807 TR_850_S.pdf
