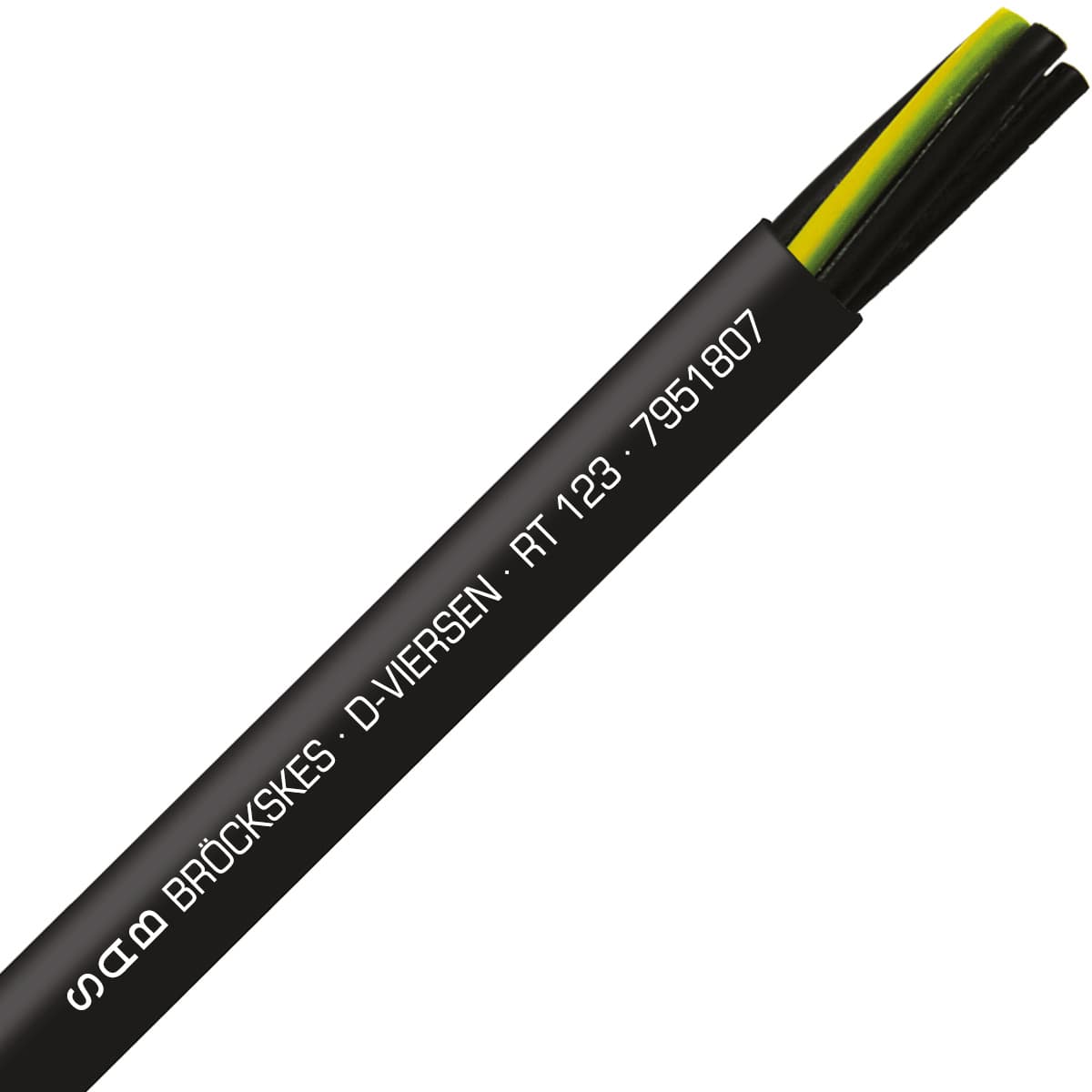

7951807 SAB Torsional Cables

SAB 7951807 RT 123 - 18 AWG/7c, PUR rugged and dependable robot/track cable, �450� torsion
SAB

Part#:7951807

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

RT 123 - 18 AWG/7c, PUR rugged and dependable robot/track cable, �450� torsion

About the manufacturer: SAB is one of the manufacturers that offers Torsional Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 7951807 SAB price in the box on the right side or send a quick quote.

Product Details

  • Temperature range
    -50°C to +90°C
  • UL Certification
    YES
  • Halogen Free
    YES
  • Gauge
    18 AWG
  • Number of conductors
    7
  • CE Certification
    YES
  • Oil Resistant
    Yes
  • Direct Burial
    NO
  • Shielded
    No
  • Voltage
    600
  • Outside diameter (OD)
    0.394 in
  • Weight
    44.91 g
  • Application
    Control, Data
  • Stranding type
    bare copper strands, class 6
  • Color
    Black
  • UV Resistant
    YES
  • Movement Type
    Torsional
  • CSA Certification
    YES
  • Chemical Resistant
    YES
  • Submersible
    NO
  • Insulation type
    TPE
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • UOM
    ft
  • RoHS
    YES
  • Cable configuration
    18 AWG (≈ 56/34)/7c

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

7951807 Description

SAB 7951807 Torsional Cable is part of RT 123 product family, and is designed for Control, Data applications. This cable is 18 AWG with 7 conductors, and 18 AWG (≈ 56/34)/7c cable configuration. Featuring Black color jacket, TPE insulation, and bare copper strands, class 6 stranding. It has 0.394 in OD, constructed to support Torsional movement type, and rated for 600 volts. This Control, Data cable can operate in -50°C to +90°C temperature range, it is chemical resistant, oil resistant, UV resistand, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Data applications.

Related documents 7951807 Specs

7951807 RT_123.pdf
