7671315 SAB Multiconductor Cables

Name: 7671315
Brand: SAB

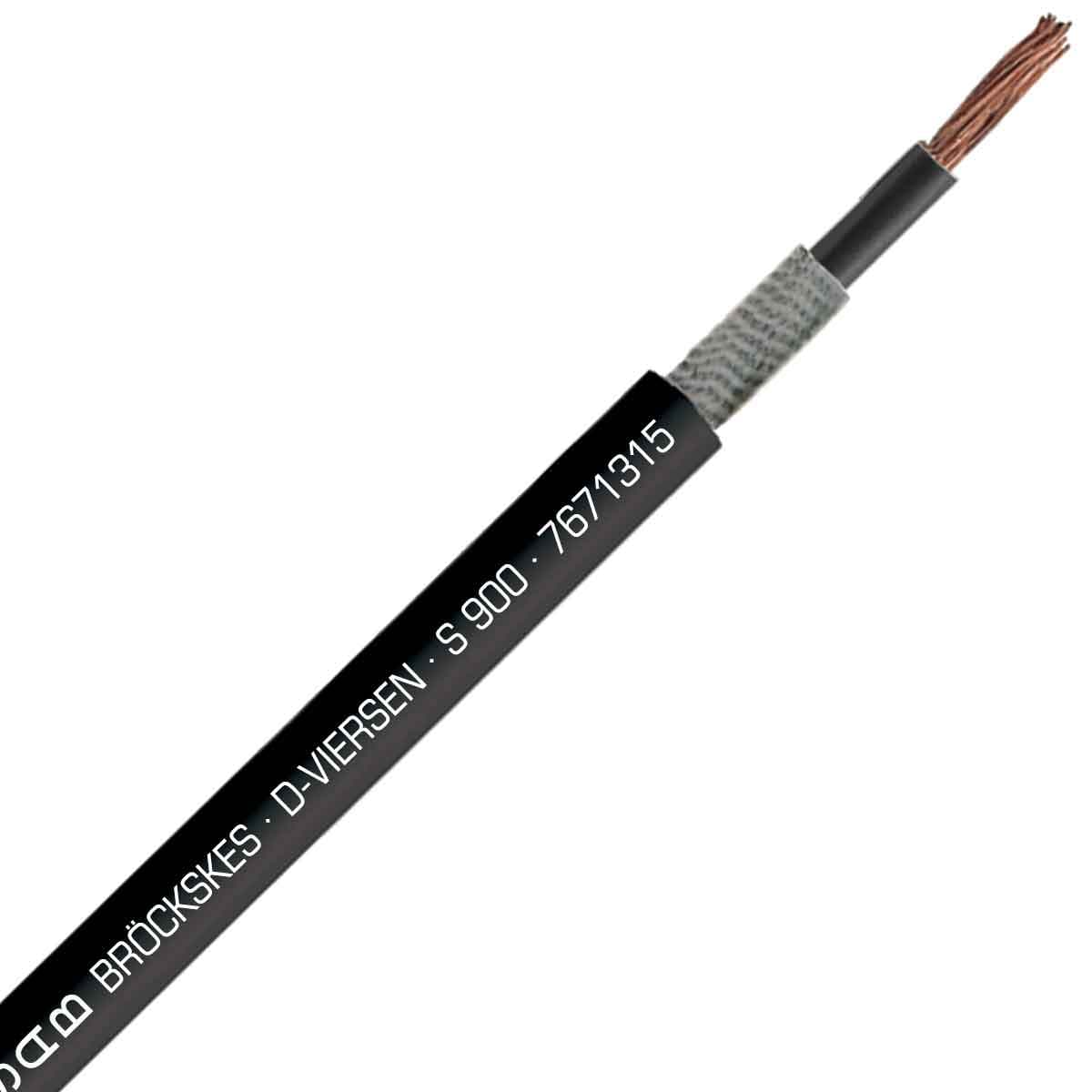

SAB 7671315 S 900 - 16 AWG/1c, oil resistant PVC continuous flex single core wire, UL, CSA, CE, RoHS

Part#:7671315

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

S 900 - 16 AWG/1c, oil resistant PVC continuous flex single core wire, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Multiconductor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 7671315 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Black
Weight
11.79 g
Chemical Resistant
NO
Oil Resistant
Yes
UV Resistant
YES
Halogen Free
NO
Submersible
NO
Direct Burial
NO
Movement Type
Continuous Flex
Application
Control, Power
Gauge
16 AWG
Number of conductors
1
Cable configuration
16 AWG (≈ 84/34)/1c
Stranding type
bare copper strands, class 6
Shielded
No
Voltage
600
Approvals
UR AWM, CSA AWM, CE, EAC, RoHS
RoHS
YES
Temperature range
+40°C to +90°C
Outside diameter (OD)
0.193 in

UOM

CSA Certification

YES

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

7671315 Description

SAB 7671315 Continuous Flex Cable is part of S 900 product family, and is designed for Control, Power applications. This cable is 16 AWG with 1 conductors, and 16 AWG (≈ 84/34)/1c cable configuration. Featuring Black color jacket, and bare copper strands, class 6 stranding. It has 0.193 in OD, constructed to support Continuous Flex movement type, and rated for 600 volts. This Control, Power cable can operate in +40°C to +90°C temperature range, it is oil resistant, UV resistand, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
