62341809 SAB Halogen Free Cables
Part#:62341809
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

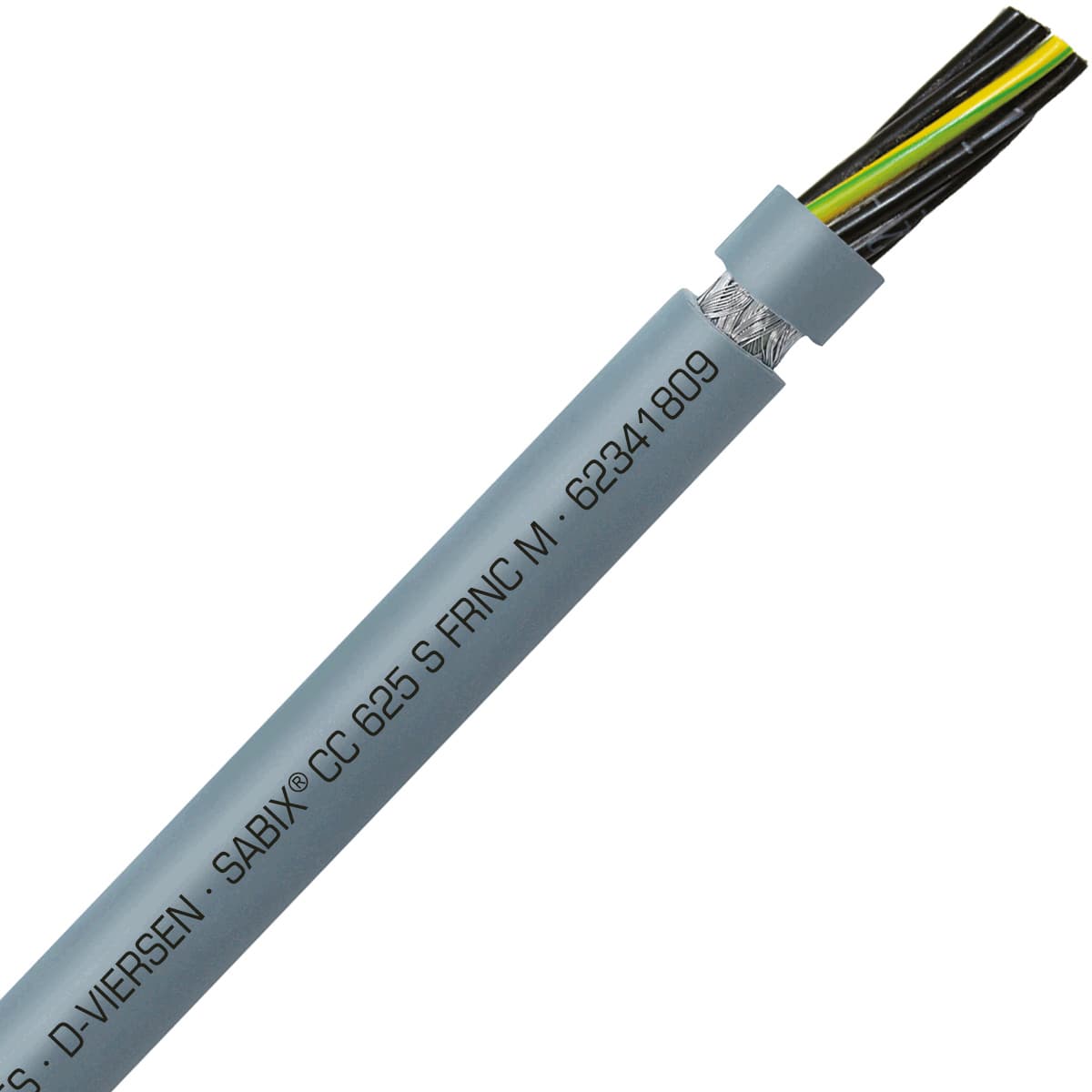

SABIX CC 625 S FRNC M - 18 AWG/9c, shielded halogen-free flame retardant flexible control cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Halogen Free Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 62341809 SAB price in the box on the right side or send a quick quote.
Product Details
- Weight 60.78 g
- Gauge 18 AWG
- Insulation type FRNC
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- UL Certification YES
- Oil Resistant No
- Chemical Resistant NO
- Stranding type bare copper strands, class 5
- Voltage 600
- Outside diameter (OD) 0.441 in
- CE Certification YES
- UV Resistant NO
- Submersible NO
- Shielded Yes
- Temperature range -40°C to +90°C
- Halogen Free YES
- Movement Type Stationary/Flexible
- UOM ft
- Application Control, Power
- Number of conductors 9
- Color Gray
- CSA Certification YES
- Direct Burial NO
- Cable configuration 18 AWG (≈ 30/32)/9c
- RoHS YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
62341809 Description
SAB 62341809 Halogen Free Cable is part of SABIX® CC 625 S FRNC M product family, and is designed for Control, Power applications. This cable is 18 AWG with 9 conductors, and shielded 18 AWG (≈ 30/32)/9c cable configuration. Featuring Gray color jacket, FRNC insulation, and bare copper strands, class 5 stranding. It has 0.441 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +90°C temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
Related documents 62341809 Specs
