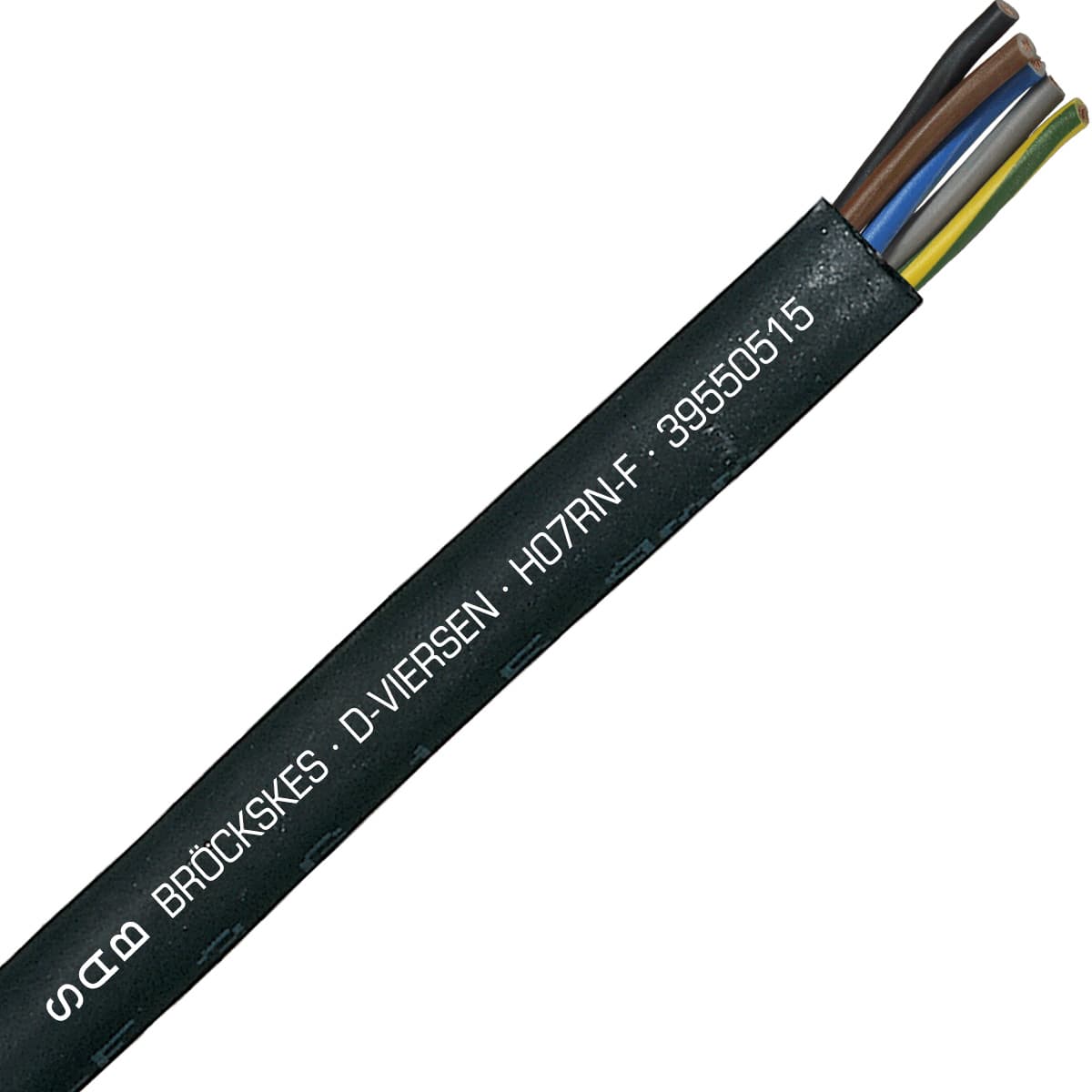

39550515 SAB Multiconductor Cables

Name: 39550515
Brand: SAB

Part#:39550515

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

H07RN-F - 16 AWG/5c, heavy duty neoprene harmonized cordage, CE

About the manufacturer: SAB is one of the manufacturers that offers Multiconductor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 39550515 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Black
Weight
58.06 g
Chemical Resistant
NO
Oil Resistant
No
UV Resistant
YES
Halogen Free
NO
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Control, Power
Gauge
16 AWG
Number of conductors
5
Cable configuration
16 AWG (≈ 27-29/30)/5c
Stranding type
bare copper strands, class 5
Insulation type
Rubber
Shielded
No
Voltage
750
Approvals
, CE, RoHS
RoHS
YES
Temperature range
-25°C to +60°C

Outside diameter (OD)

0.437 in

UOM

CSA Certification

UL Certification

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

39550515 Description

SAB 39550515 European Standardized Cable is part of H07RN-F product family, and is designed for Control, Power applications. This cable is 16 AWG with 5 conductors, and 16 AWG (≈ 27-29/30)/5c cable configuration. Featuring Black color jacket, Rubber insulation, and bare copper strands, class 5 stranding. It has 0.437 in OD, constructed to support Stationary/Flexible movement type, and rated for 750 volts. This Control, Power cable can operate in -25°C to +60°C temperature range, it is UV resistand, and has following approvals: <HAR>, CE, RoHS. This cable is an excellent choice for Control, Power applications.
