31872789 SAB Hook-Up Wire

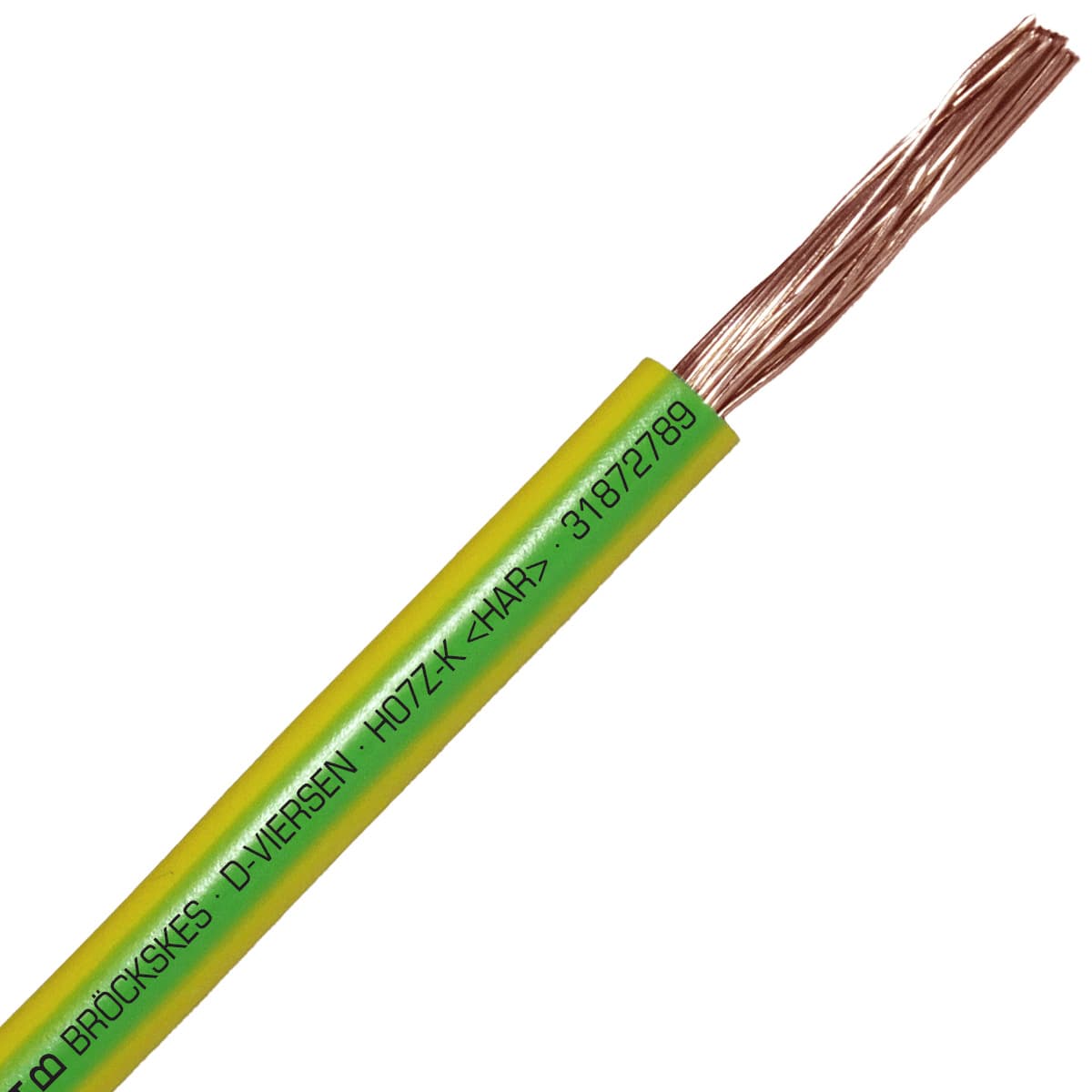

SAB 31872789 H07Z-K (HAR/CE) - 6 AWG halogen-free hook-up wire, Green/Yellow
SAB

Part#:31872789

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

H07Z-K (HAR/CE) - 6 AWG halogen-free hook-up wire, Green/Yellow

About the manufacturer: SAB is one of the manufacturers that offers Hook-Up Wire that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 31872789 SAB price in the box on the right side or send a quick quote.

Product Details

  • UV Resistant
    NO
  • Voltage
    750
  • Application
    Control, Power
  • Cable configuration
    6 AWG/1c
  • Outside diameter (OD)
    0.331 in
  • UOM
    ft
  • Stranding type
    bare copper strands, class 5
  • Approvals
    , CE, RoHS
  • Weight
    51.71 g
  • Temperature range
    -40°C to +90°C
  • Chemical Resistant
    NO
  • Submersible
    NO
  • Color
    Green/Yellow
  • CSA Certification
    NO
  • Movement Type
    Stationary/Flexible
  • Shielded
    No
  • RoHS
    YES
  • Oil Resistant
    No
  • Direct Burial
    NO
  • Number of conductors
    1
  • CE Certification
    YES
  • Halogen Free
    YES
  • Gauge
    6 AWG
  • UL Certification
    NO

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

31872789 Description

SAB 31872789 European Standardized Cable is part of H07Z-K- HAR product family, and is designed for Control, Power applications. This cable is 6 AWG with 1 conductors, and 6 AWG/1c cable configuration. Featuring Green/Yellow color jacket, and bare copper strands, class 5 stranding. It has 0.331 in OD, constructed to support Stationary/Flexible movement type, and rated for 750 volts. This Control, Power cable can operate in -40°C to +90°C temperature range, it is Halogen free, and has following approvals: <HAR>, CE, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 31872789 Specs

31872789 H05Z-K_H07Z-K.pdf
