3050275 SAB Data and Sensor Cables

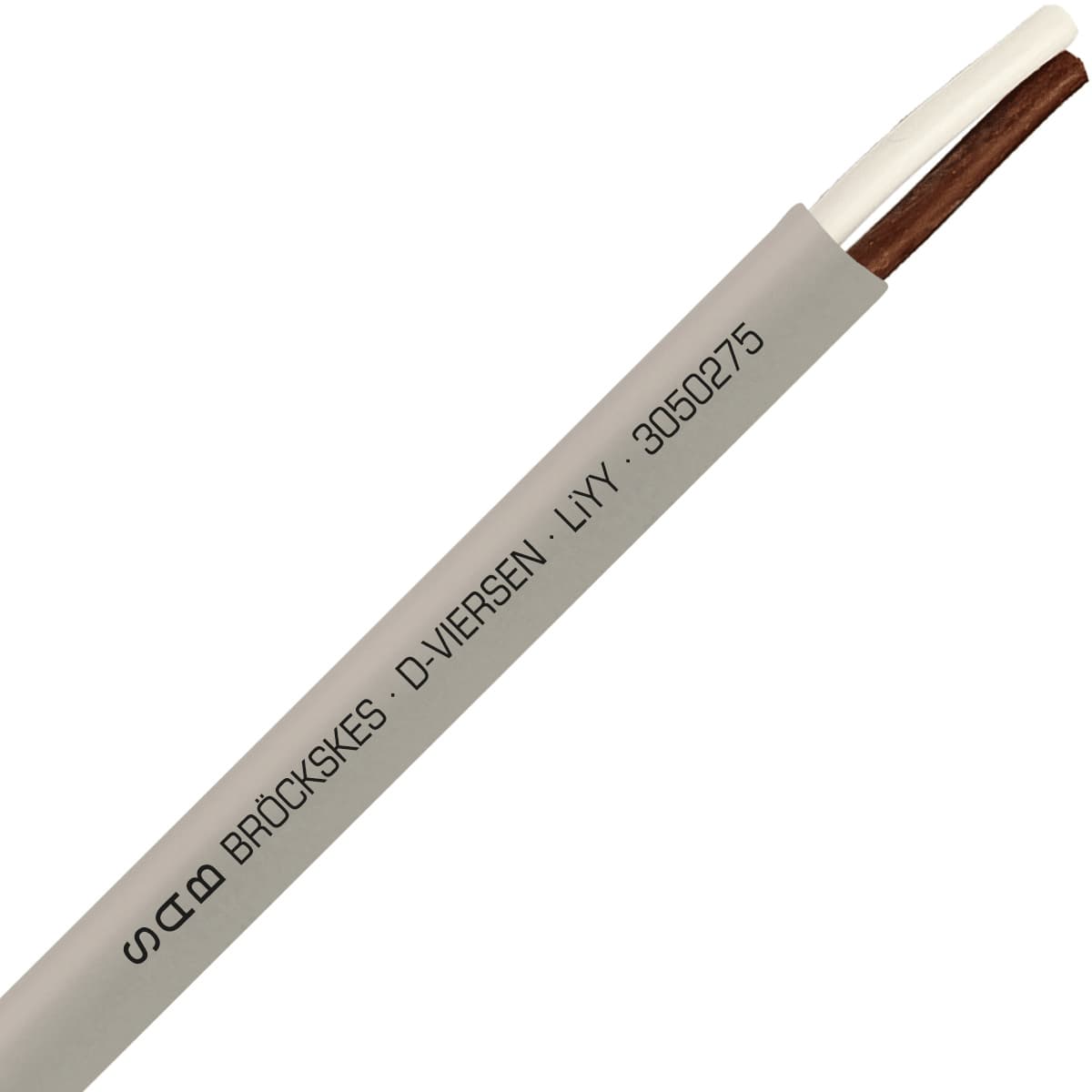

SAB 3050275 LiYY - 19 AWG/2c, multi-conductor signal and control PVC cable with DIN color code
SAB

Part#:3050275

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

LiYY - 19 AWG/2c, multi-conductor signal and control PVC cable with DIN color code

About the manufacturer: SAB is one of the manufacturers that offers Data and Sensor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 3050275 SAB price in the box on the right side or send a quick quote.

Product Details

  • Halogen Free
    NO
  • Weight
    11.34 g
  • Submersible
    NO
  • Approvals
    CE, EAC, RoHS
  • Stranding type
    bare copper, fine strands
  • Temperature range
    -30°C to +70°C
  • UV Resistant
    NO
  • Application
    Power
  • UL Certification
    NO
  • Number of conductors
    2
  • Shielded
    No
  • Oil Resistant
    Yes
  • Gauge
    19 AWG
  • Voltage
    300
  • Movement Type
    Stationary/Flexible
  • RoHS
    YES
  • Outside diameter (OD)
    0.193 in
  • CSA Certification
    NO
  • Cable configuration
    19 AWG (≈ 23/32)/2c
  • Insulation type
    PVC
  • Color
    Grayish Tan
  • CE Certification
    YES
  • Chemical Resistant
    YES
  • Direct Burial
    NO
  • UOM
    ft

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3050275 Description

SAB 3050275 Data and Sensor Cable is part of LiYY product family, and is designed for Power applications. This cable is 19 AWG with 2 conductors, and 19 AWG (≈ 23/32)/2c cable configuration. Featuring Grayish Tan color jacket, PVC insulation, and bare copper, fine strands stranding. It has 0.193 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +70°C temperature range, it is chemical resistant, oil resistant, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Power applications.

Related documents 3050275 Specs

3050275 LiYY.pdf
