2781825 SAB Multiconductor Cables

Name: 2781825
Brand: SAB

Part#:2781825

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

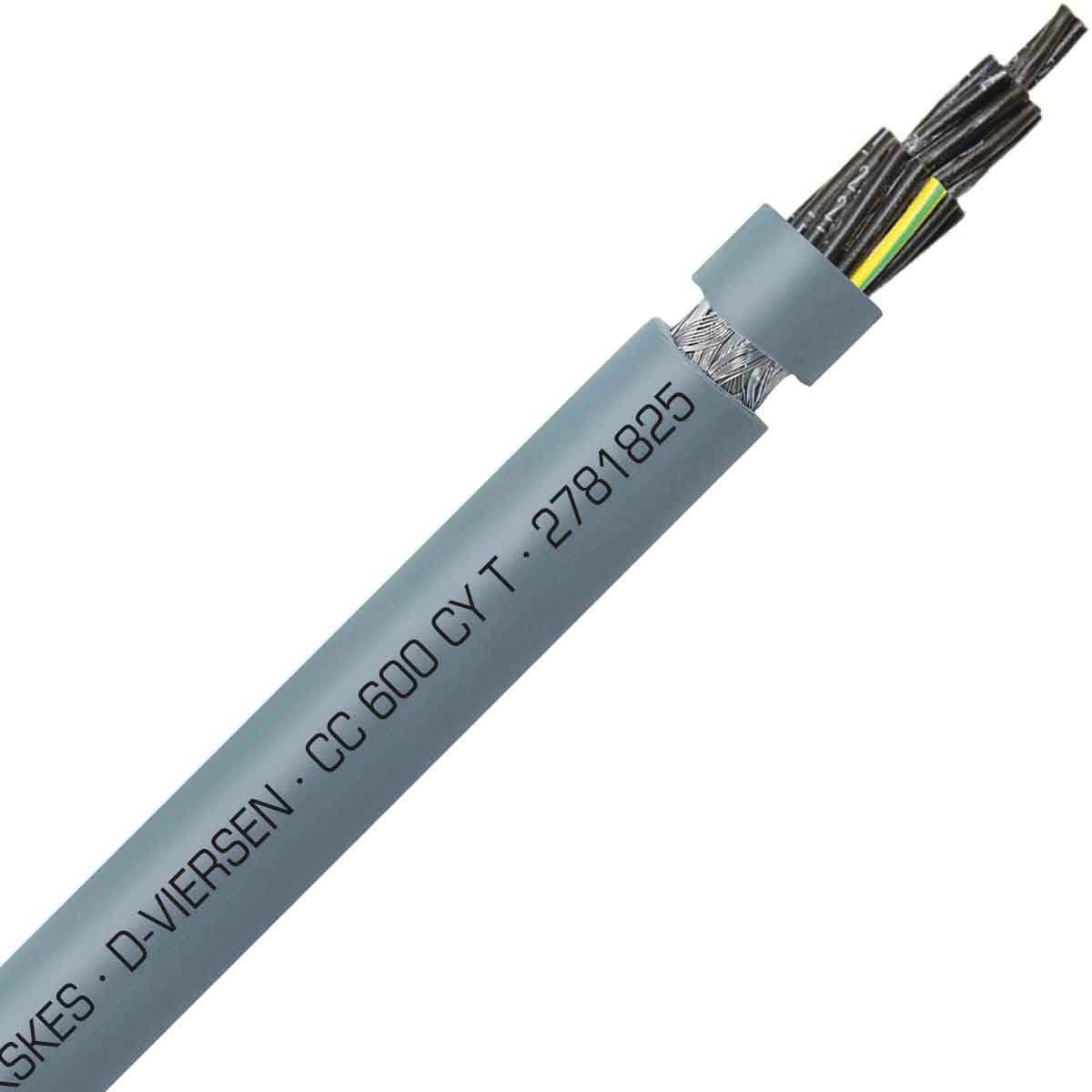

CC 600 CY T - 18 AWG/25c, shielded PVC flexible control cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Multiconductor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 2781825 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Gray
Weight
147.42 g
Chemical Resistant
NO
Oil Resistant
Yes
UV Resistant
NO
Halogen Free
NO
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Control, Power
Gauge
18 AWG
Number of conductors
25
Cable configuration
18 AWG (≈ 30/32)/25c
Stranding type
bare copper strands, class 5
Insulation type
PVC
Shielded
Yes
Voltage
600
Approvals
UR AWM, CSA AWM, CE, EAC, RoHS
RoHS
YES
Temperature range
-40°C to +105°C

Outside diameter (OD)

0.681 in

UOM

CSA Certification

YES

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

2781825 Description

SAB 2781825 Flexible Control Cable is part of CC 600 CY T product family, and is designed for Control, Power applications. This cable is 18 AWG with 25 conductors, and shielded 18 AWG (≈ 30/32)/25c cable configuration. Featuring Gray color jacket, PVC insulation, and bare copper strands, class 5 stranding. It has 0.681 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +105°C temperature range, it is oil resistant, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
